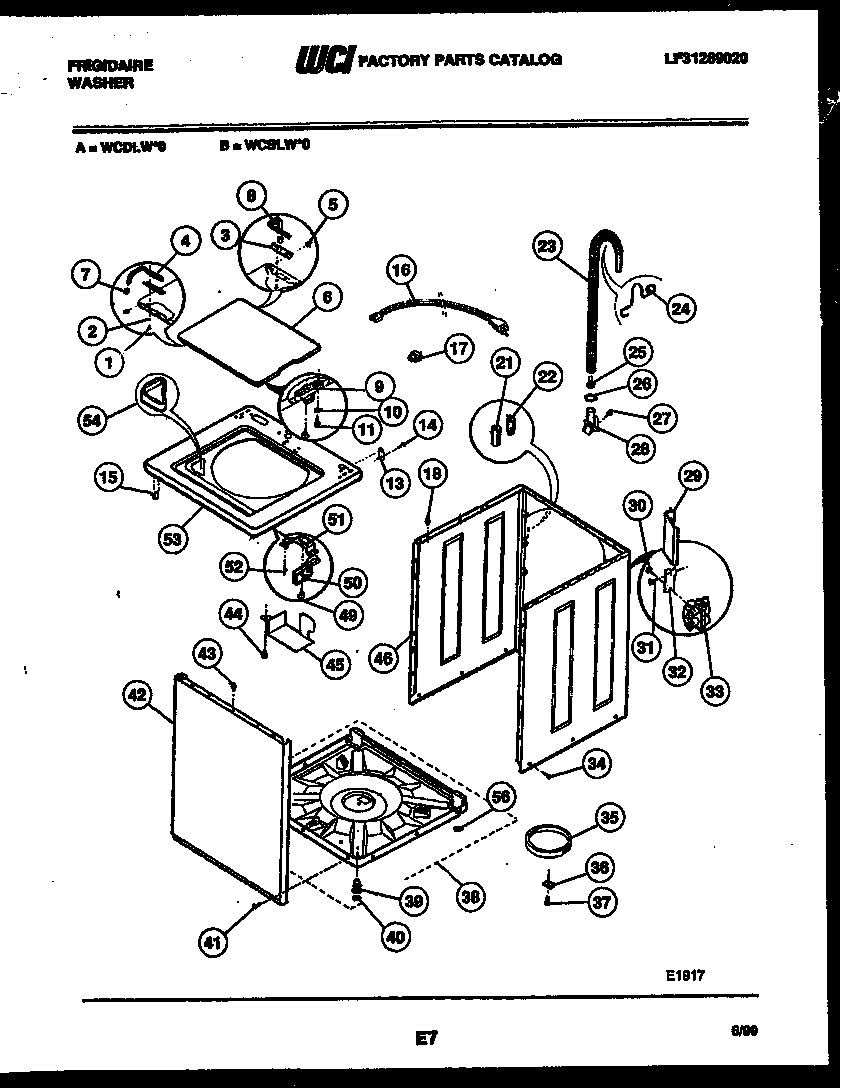

WCDLW0 02 – CABINET PARTS

Products

Position	Product
1	WCI 3204359
3	WCI 3204360
4	HINGE BAR-FRONT
5	5303208743 Frigidaire Grommet
6	WCI 5303208744
7	WCI 5303208748
8	WCI 5303208749
9	131390000 Frigidaire Door Catch-Strike
10	WCI 5308002408
11	3204368 Frigidaire Screw-Strike
12	134075500 Frigidaire Bumper-LID
13	WCI 5303208751
14	WCI 5308057419
15	3205821 Frigidaire Clip
16	5304505407 Frigidaire Cord
17	5303209428 Frigidaire Serv.Cord Bushing
21	WCI 5308014903
22	WCI 5303161252
23	WCI 3205414
24	RETAINER
25	3204375 Frigidaire Check Valve
26	WCI 5364154013
27	131205100 Frigidaire Screw
28	WCI 3204376
29	WCI 3204377
30	WCI 530310202
31	5303015671 Frigidaire Bracket Termination Screw
32	WCI 3204378
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	WCI 5303912508
36	SHIPPING BLOCK
37	SHIPPING SCREW
38	WCI 3204382
39	LEVELING LEG & PAD
40	WCI 3204383
41	131302800 Frigidaire Drum Vane Screw
42	WCI 3204384
43	PIN - LOCATING
45	WCI 3204386
46	WCI 3204387
49	SCREW
50	WCI 3205646
51	WCI 3204391
52	RIVET (3)
53	WCI 5303208774
54	WCI 5303208778
56	PAD - SELF LEVEL (2)
