WCDML1 04 – CONSOLE – Aparts

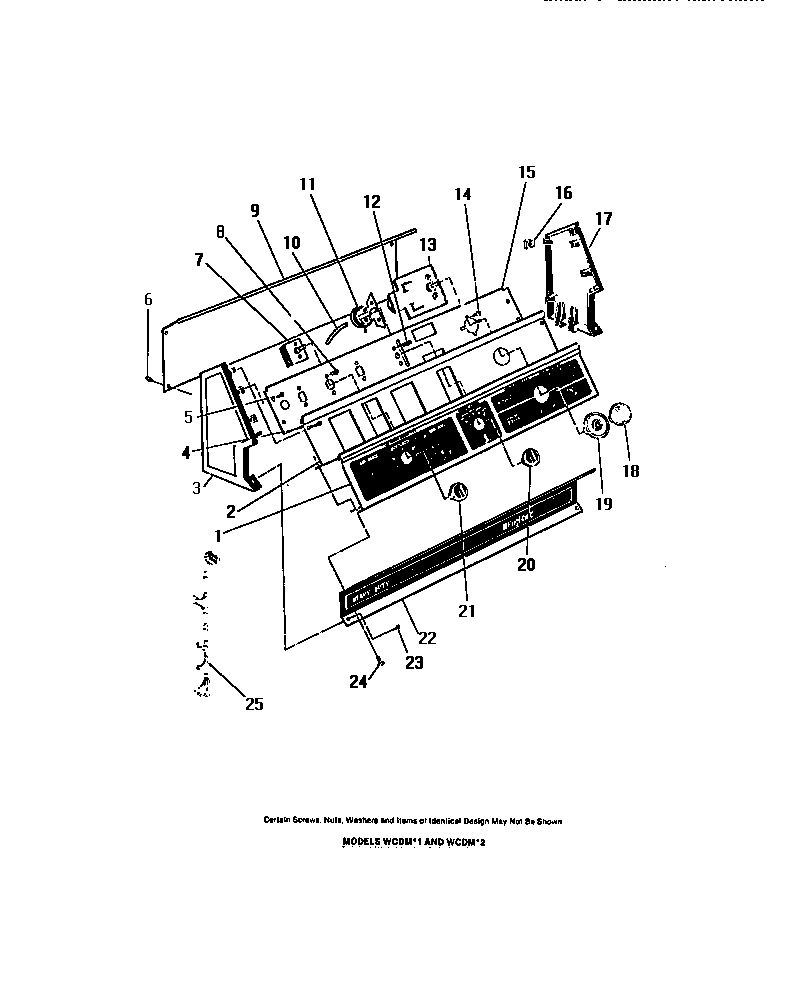

WCDML1 04 – CONSOLE

Products

Position	Product
1	WCI 8011409
2	WCI 8011392
3	WCI 8011394
4	SCREWS (3)
6	SCREWS (4)
7	WCI 8010902
8	WCI 8001953
9	WCI 8001978
10	WCI 8006771
11	WCI 8010901
12	SCREWS (2)
13	WCI 8010900
14	SCREWS (2)
15	WCI 8011387
16	NUTS (12)
17	WCI 8011393
18	WCI 8010887
19	WCI 8011417
21	KNOB, WATER LEVEL SELECTOR
22	WCI 8011400
23	SCREW
24	SCREWS (2)
25	WCI 8011404
