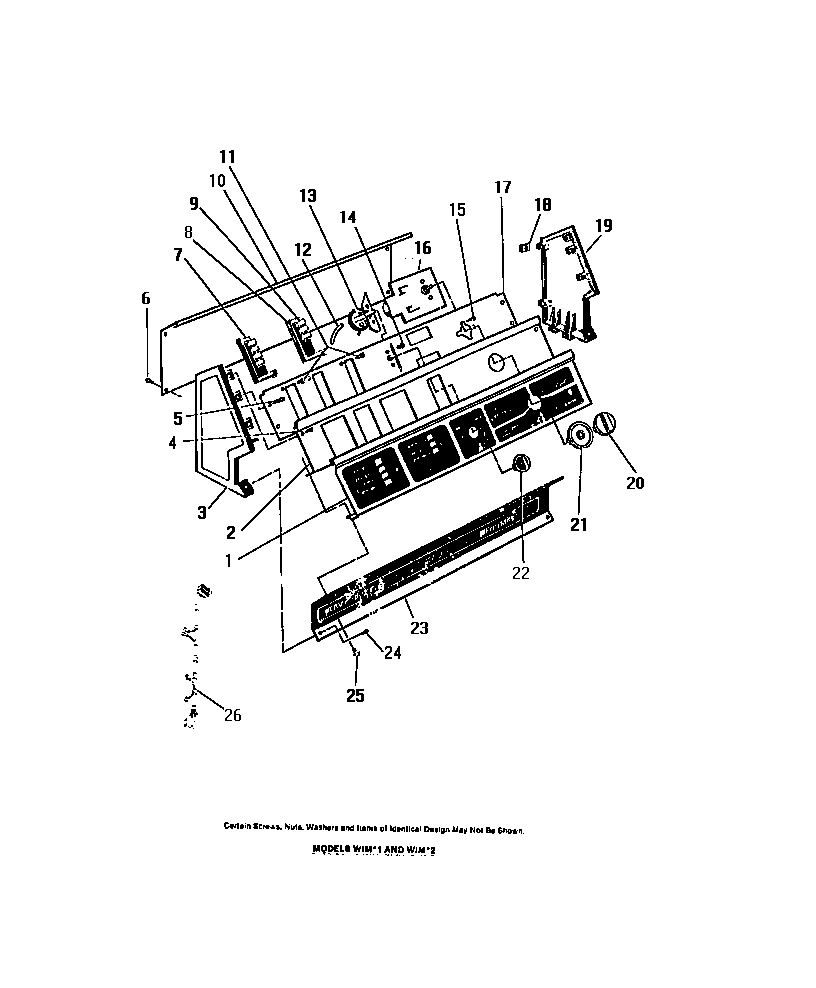

WCDML2 05 – CONSOLE

WCDML2 05 – CONSOLE

Written by

in

WCDML2 05 – CONSOLE

Products

Position	Product
1	WCI 8011399
2	WCI 8011392
3	WCI 8011394
4	SCREWS (3)
6	SCREWS (4)
7	WCI 8010895
8	KNOB, TEMPERATURE SELECTOR
9	WCI 8010890
10	WCI 8001978
12	WCI 8006771
13	WCI 8010898
14	SCREWS (2)
15	SCREWS (2)
17	WCI 8011388
18	NUTS (12)
19	WCI 8011393
20	WCI 8010887
21	WCI 8011417
22	KNOB, WATER LEVEL SELECTOR
23	WCI 8011401
24	SCREW
25	SCREWS (2)
