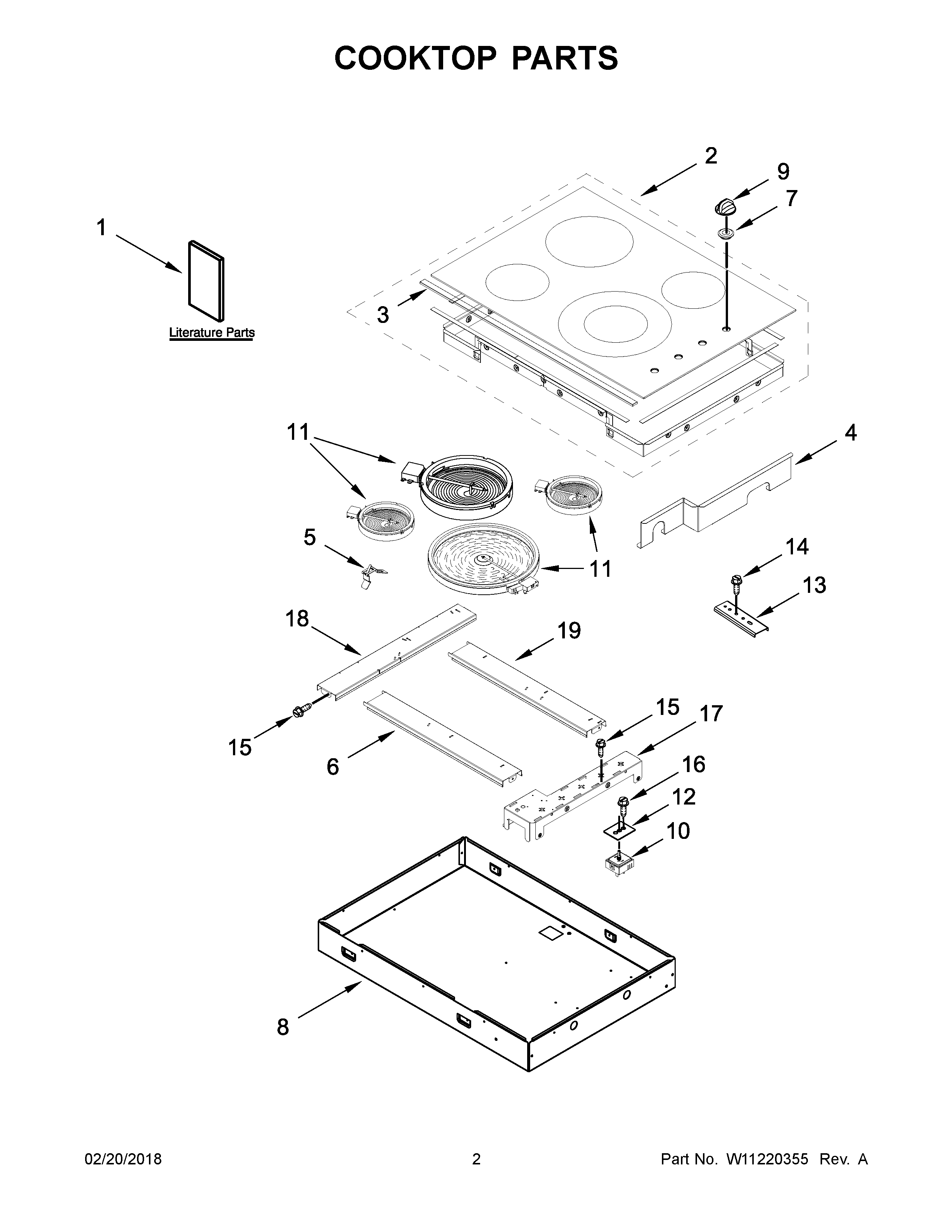

WCE55US0HS00 02 – COOKTOP PARTS

Products

Position	Product
NI	INSULATION, COOKTOP (KNOB)
NI	W11111805 Whirlpool Wire Harness
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	GROMMET, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3400015 Whirlpool Screw
NI	GROMMET, WIRE
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	W11223301 Whirlpool Glass Main Top
2A	W11223304 Whirlpool Cooktop
2B	W11223306 Whirlpool Cooktop
4	SHIELD, SWITCH
5	WPW10225448 Whirlpool Spring Assembly
6	RAIL, HORIZONTAL FRONT
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
7A	GROMMET
9A	KNOB
9	W11222048 Whirlpool Control Knob
9B	W11418244 Whirlpool Knob
10A	W11661906 Whirlpool Range Infinite Switch
10	W10911303 Whirlpool Infinite Switch
10B	SWITCH-INF
11	ELMNT-SURF
11B	ELMNT-SURF
11A	WP8273993 Whirlpool Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	WPL 7101P30960
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	RAIL, HORIZONTAL REAR
