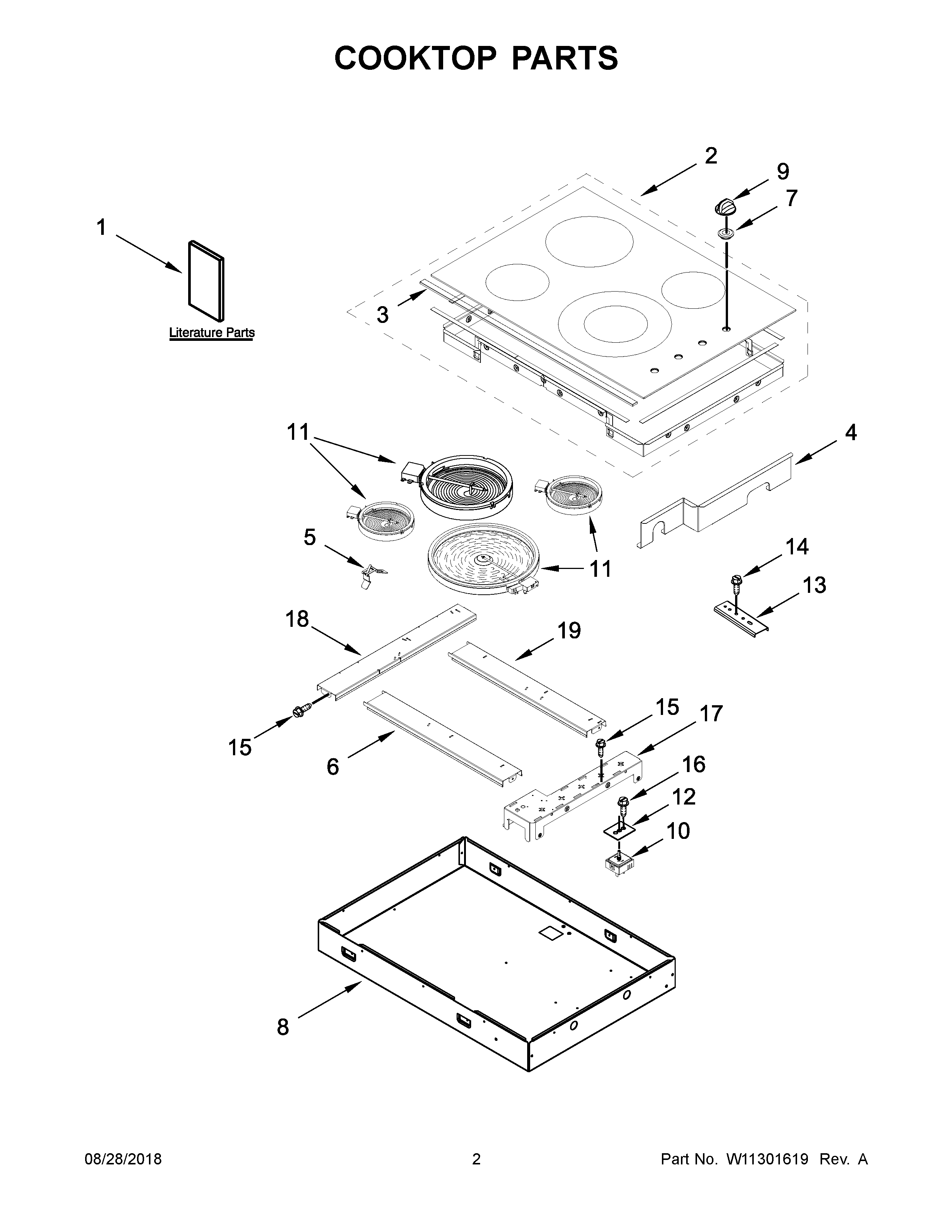

WCE55US0HS01 02 – COOKTOP PARTS

Products

Position	Product
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
NI	SCREW
NI	W11111805 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	Nut
NI	WP3400015 Whirlpool Screw
1	INSTRUCTIONS, INSTALLATION
1C	DIAGRAM, WIRE
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
2A	W11223304 Whirlpool Cooktop
2B	W11223306 Whirlpool Cooktop
2	W11223301 Whirlpool Glass Main Top
4	SHIELD, SWITCH
5	WPW10225448 Whirlpool Spring Assembly
6	RAIL, HORIZONTAL FRONT
7A	GROMMET
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
9	W11222048 Whirlpool Control Knob
9A	KNOB
9B	W11418244 Whirlpool Knob
10A	W11661906 Whirlpool Range Infinite Switch
10	W10911303 Whirlpool Infinite Switch
10B	SWITCH-INF
11A	WP8273993 Whirlpool Surface Element
11	ELMNT-SURF
11B	ELMNT-SURF
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	WPL 7101P30960
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	RAIL, HORIZONTAL REAR
