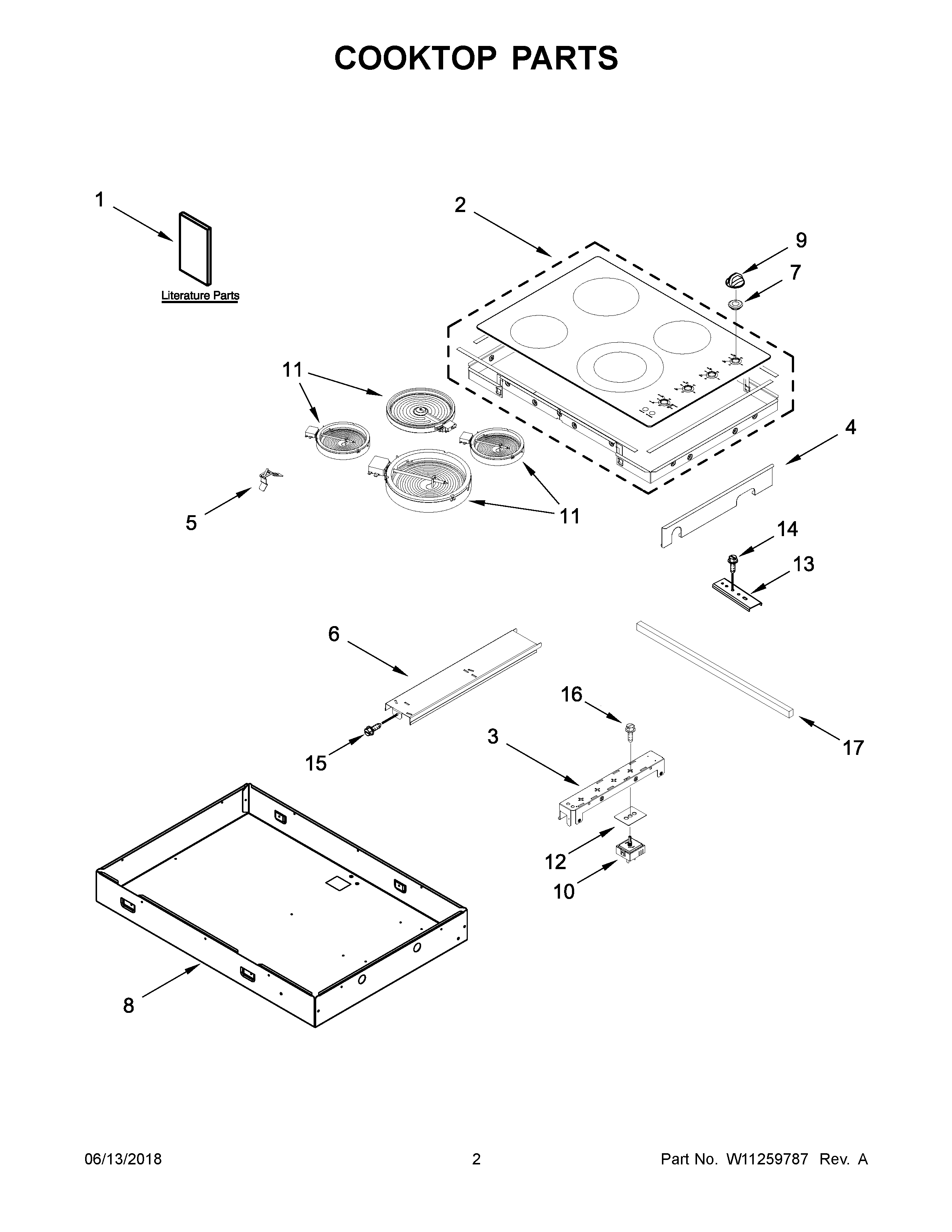

WCE55US4HB00 02 – COOKTOP PARTS

Products

Position	Product
NI	W11110594 Whirlpool Wire Harness
NI	INSULATION, COOKTOP (KNOB)
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	CABINET (NOT A SERVICEABLE PART)
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1C	DIAGRAM, WIRING
2	W11260701 Whirlpool Cooktop Assembly
3	PLATE, SWITCH
4	SHIELD, SWITCH PLATE
5	WPW10225448 Whirlpool Spring Assembly
6	RAIL, VERTICAL
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
9	W11222048 Whirlpool Control Knob
10A	W11661906 Whirlpool Range Infinite Switch
10	W10911303 Whirlpool Infinite Switch
10B	SWITCH-INF
11	ELMNT-SURF
11A	WP8273993 Whirlpool Surface Element
11B	ELMNT-SURF
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	WPL 7101P30960
17	TOP, FOAM (HEAT SHIELD)
