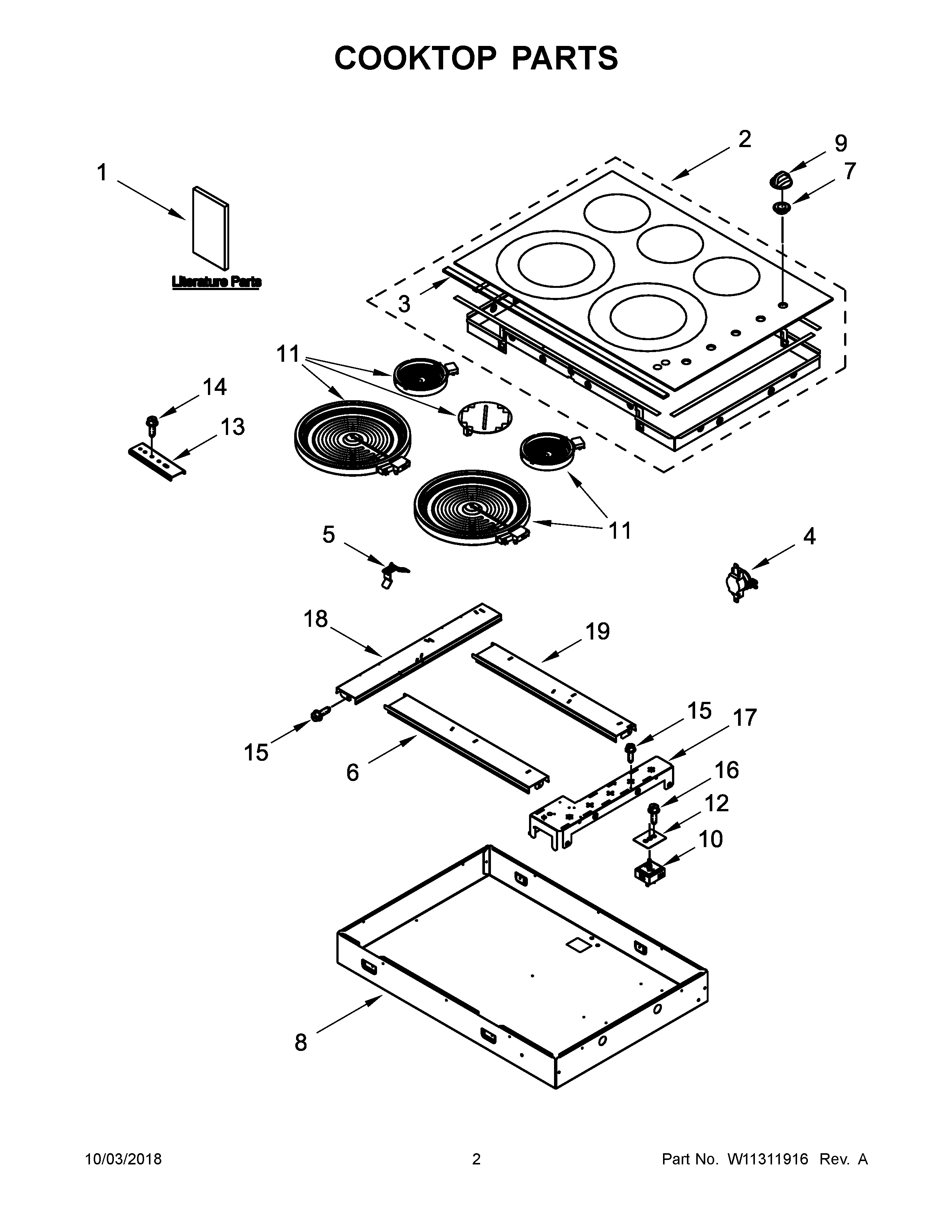

WCE77US0HW01 02 – COOKTOP PARTS

Products

Position	Product
NI	W10491984 Whirlpool Switch Seal
NI	WP3400015 Whirlpool Screw
NI	Nut
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11111810 Whirlpool Wire Harness
NI	SCREW
NI	WP8286642 Whirlpool Tape
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1B	GUIDE, USE & CARE
1C	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
2B	W11223311 Whirlpool Cooktop Assembly
2	W11223307 Whirlpool Cooktop
2A	COOKTOP (WHITE)
4	W10464566 Whirlpool Thermostat
5	WPW10225448 Whirlpool Spring Assembly
6	RAIL, HORIZONTAL FRONT
7A	GROMMET
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
9	W11222048 Whirlpool Control Knob
9A	KNOB
9B	W11418244 Whirlpool Knob
10	SWITCH-INF
10A	W10911303 Whirlpool Infinite Switch
10B	W10888698 Whirlpool Selector Switch
11A	ELMNT-SURF
11B	W11041453 Whirlpool Surface Element
11	W11517959 Whirlpool Electric Range Radiant Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	WPL 7101P30960
17	PLATE, SWITCH
18	RAIL, VERTICAL
19	RAIL, HORIZONTAL REAR
