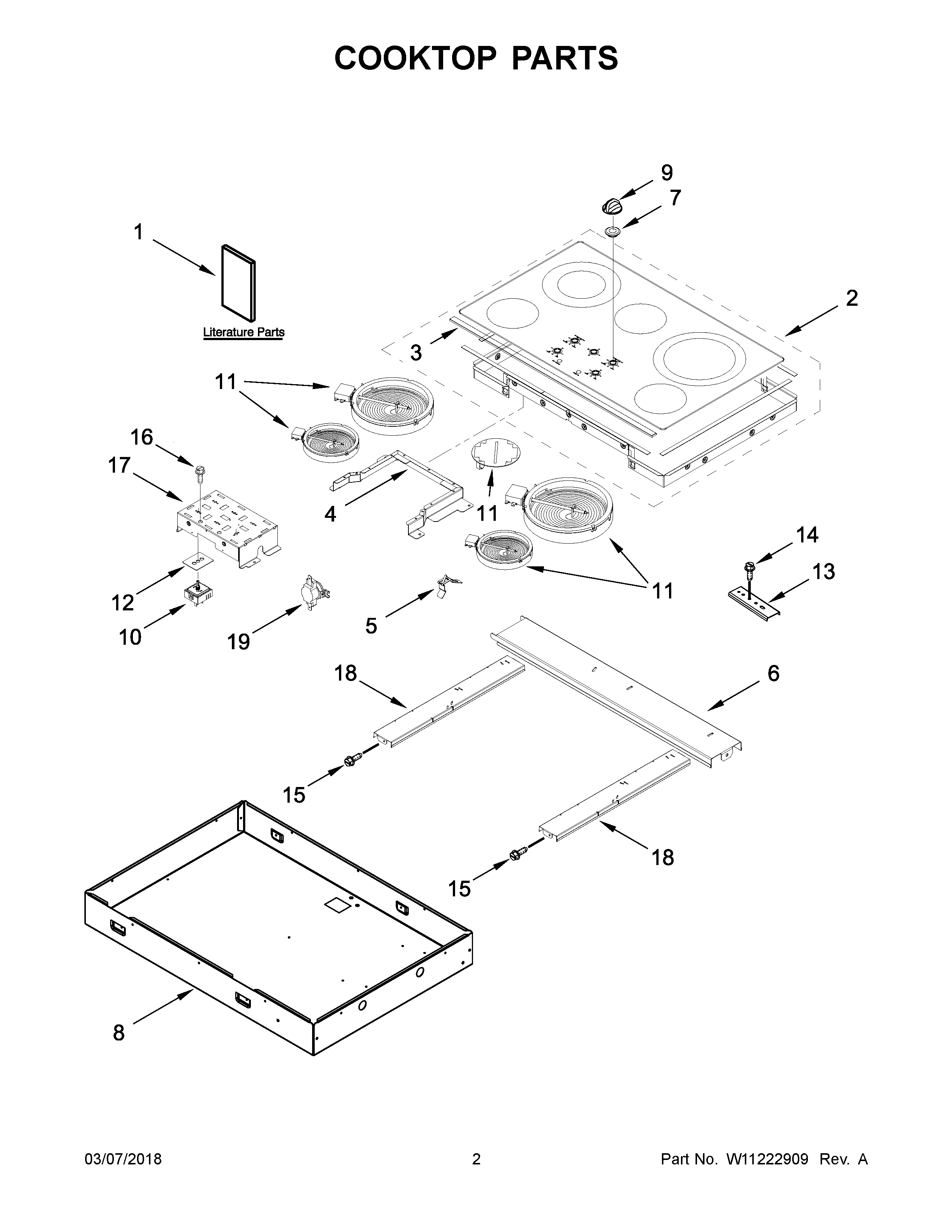

WCE77US6HS00 02 – COOKTOP PARTS

Products

Position	Product
NI	GROMMET, WIRE
NI	WP8286642 Whirlpool Tape
NI	W11110553 Whirlpool Wire Harness
NI	W10491984 Whirlpool Switch Seal
NI	GROMMET, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3400015 Whirlpool Screw
NI	INSULATION, COOKTOP (KNOB)
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	W11223312 Whirlpool Cooktop
2A	W11223314 Whirlpool Cooktop
4	W10311897 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	RAIL, HORIZONTAL
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
9	W11222048 Whirlpool Control Knob
9A	W11418244 Whirlpool Knob
10A	SWITCH-INF
10	W10911303 Whirlpool Infinite Switch
10B	W10888698 Whirlpool Selector Switch
11A	W11517959 Whirlpool Electric Range Radiant Surface Element
11C	W10823727 Whirlpool Stove Right Front Surface Element
11B	W11041453 Whirlpool Surface Element
11	ELMNT-SURF
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	WPL 7101P30960
17	W11215839 Whirlpool Cover Switch
18	RAIL, SHORT
19	W10464566 Whirlpool Thermostat
