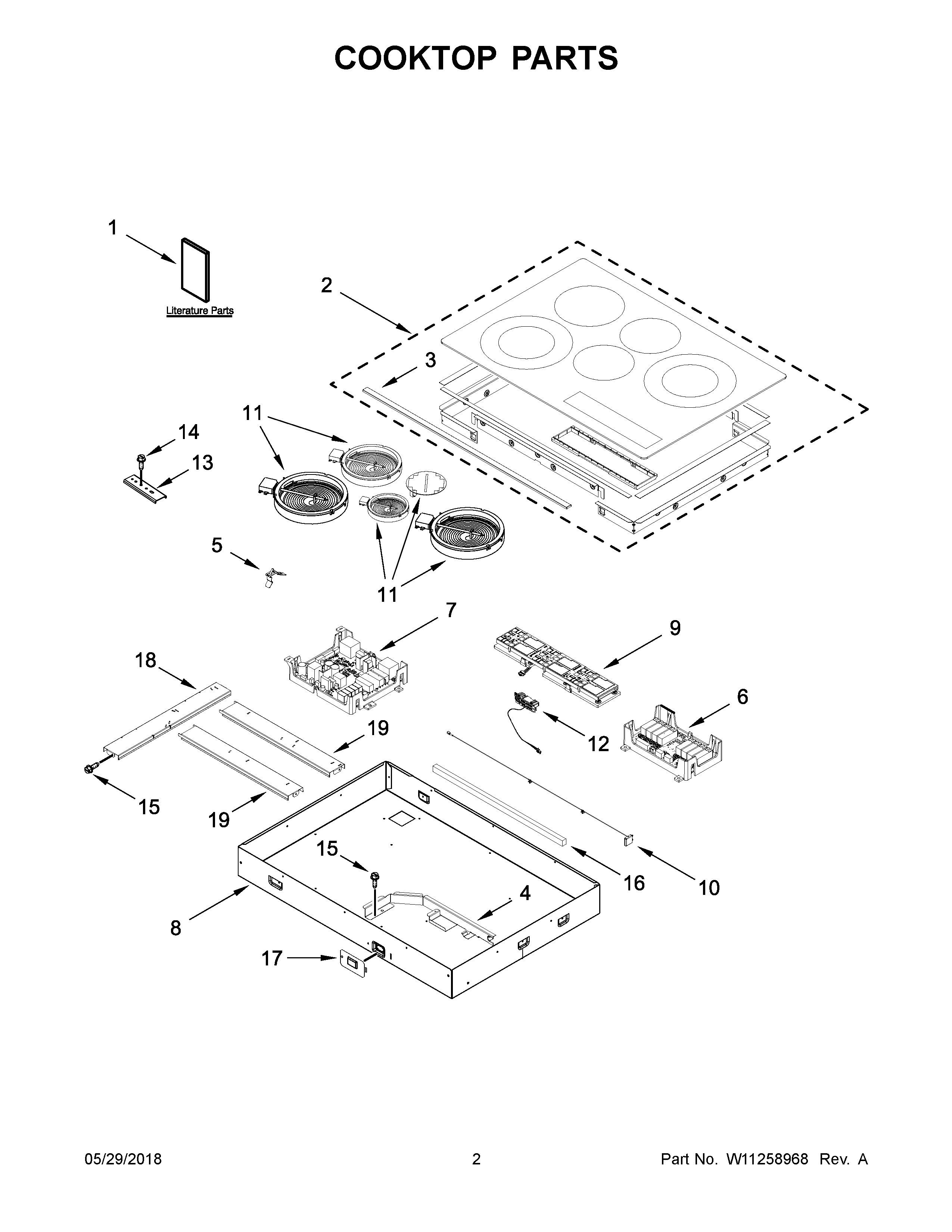

WCE97US0HS00 02 – COOKTOP PARTS

Products

Position	Product
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
NI	SCREW
NI	CABINET (NOT A SERVICEABLE PART)
NI	Nut
NI	HARNESS, MAIN
NI	WP3400015 Whirlpool Screw
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1C	DIAGRAM, WIRING
1B	GUIDE, USE & CARE
1D	GUIDE, INTERNET CONNECTIVITY
1	INSTRUCTIONS, INSTALLATION
2A	COOKTOP (STAINLESS)
2	COOKTOP (BLACK)
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	W11259509 Whirlpool Electronic Control Board + Core
7	MANAGER, COPERNICUS APPLIANCE
9	ASSEMBLY, UI
10	ANTENNA
11A	WP8273993 Whirlpool Surface Element
11B	ELMNT-SURF
11C	W11041453 Whirlpool Surface Element
11	W11517959 Whirlpool Electric Range Radiant Surface Element
12	ASSEMBLY, LOKI WIFI
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	TOP, FOAM (HEAT SHIELD)
18	RAIL, VERTICAL
19	RAIL, HORIZONTAL
