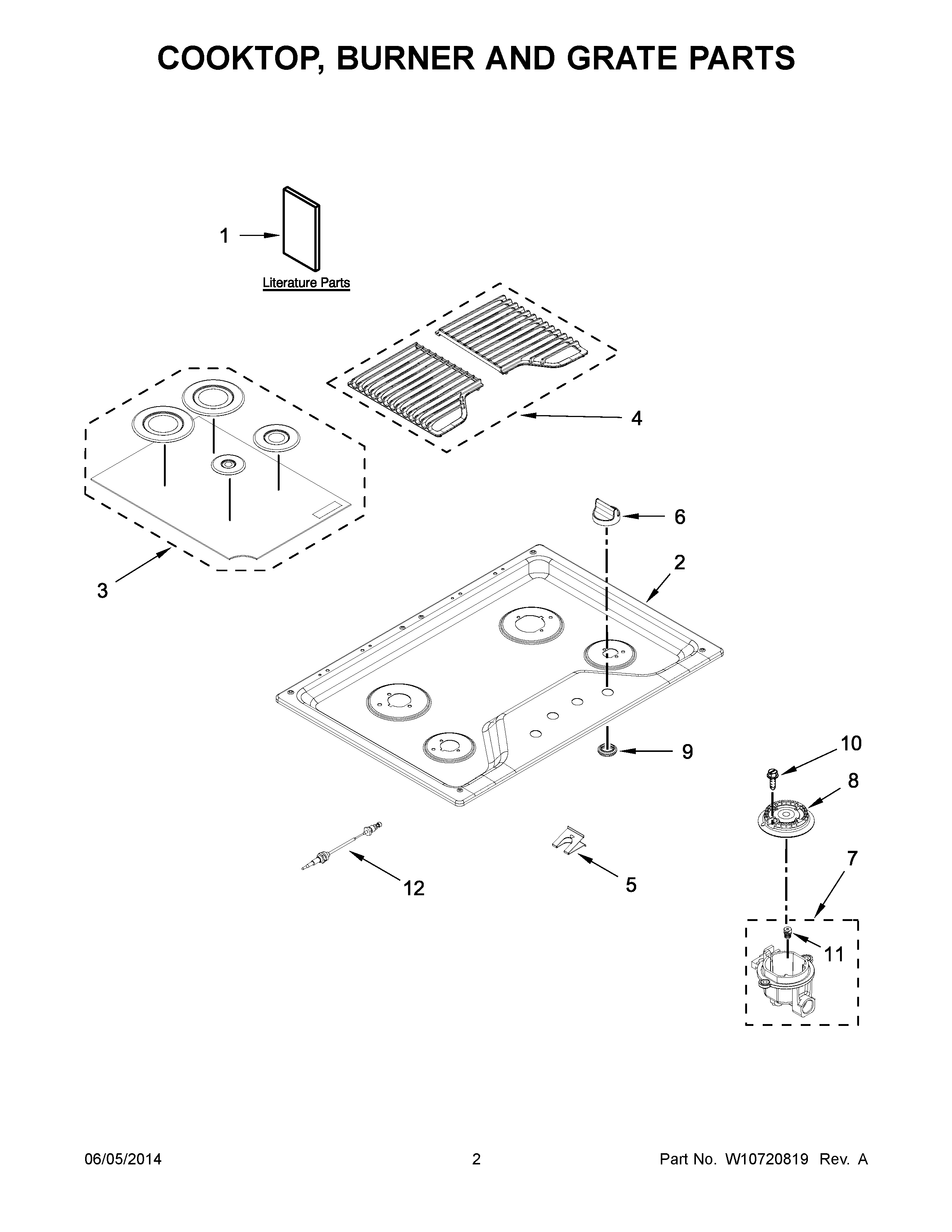

WCG51US0DB00 02 – COOKTOP, BURNER AND GRATE PARTS

WCG51US0DB00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

WCG51US0DB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1UNDERCOUNTER INSTALL INSTRUCTIONS
1USE & CARE GUIDE
2W11193482 Whirlpool Cooktop
2COOKTOP (BLACK)
2COOKTOP (WHITE)
3WPW10597129 Whirlpool Burner Cap
4W11104042 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6W10594480 Whirlpool Knob Assembly
6W10826855 Whirlpool Control Knob
6WPW10646805 Whirlpool Burner Knob
7W10594399 Whirlpool Orifice Holder
7W10609591 Whirlpool Orifice Holder
7W10594402 Whirlpool Orifice Holder
7W10597159 Whirlpool Orifice Holder
8WP8286815 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
9W10614849 Whirlpool Grommet
10WP8287059 Whirlpool Screw
11W10791073 Whirlpool Gas Orifice Spud
11W10791079 Whirlpool Orifice Spud
11W10791082 Whirlpool Spud Orifice
11W10652710 Whirlpool Orifice Spud
12W11507532 Whirlpool Surface Igniter
12W11507531 Whirlpool Surface Igniter Assembly
