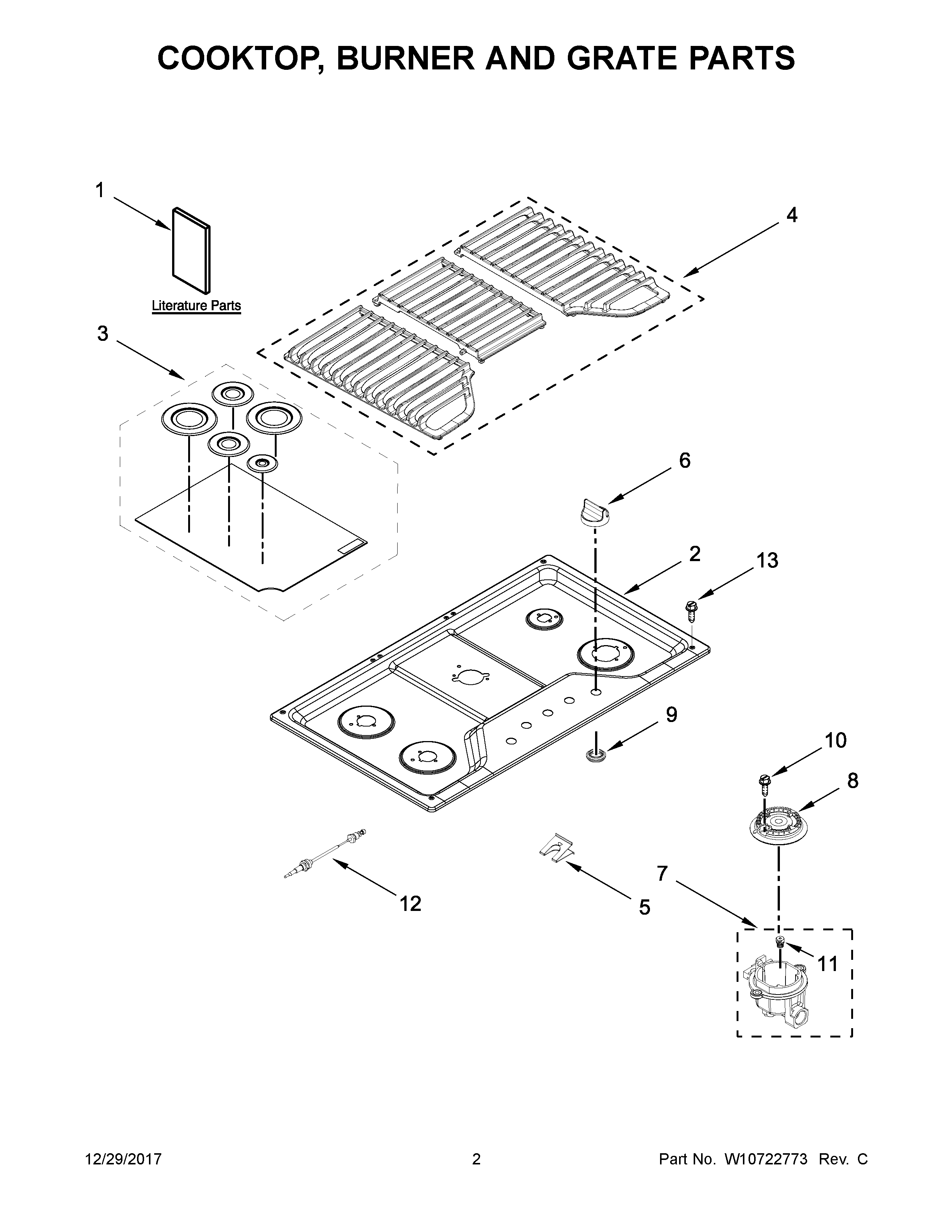

WCG51US6DB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10676661 Whirlpool Cooktop Spud Orifice
NI	16515 Whirlpool Clip
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
NI	W11561443 Whirlpool Wire Harness
1A	UNDERCOUNTER INSTALL INSTRUCTIONS
1C	INSTRUCTIONS, LP CONVERSION
1B	GUIDE, USE & CARE
1	INSTRUCTIONS, INSTALLATION
2	W10597086 Whirlpool Cooktop
2A	W10597087 Whirlpool Cooktop
2B	W11168400 Whirlpool Cooktop
3	W10832694 Whirlpool Surface Burner Cap
4	W11177674 Whirlpool Grate Kit
5	8286863 Whirlpool Oven Clip
6	W10826855 Whirlpool Control Knob
6A	W10594480 Whirlpool Knob Assembly
6B	WPW10646805 Whirlpool Burner Knob
7B	W10594399 Whirlpool Orifice Holder
7C	W10609591 Whirlpool Orifice Holder
7	W10594402 Whirlpool Orifice Holder
7A	W10597159 Whirlpool Orifice Holder
8A	WP8286815 Whirlpool Burner Head
8	WP8286814 Whirlpool Burner Head
8B	WP8286813 Whirlpool Burner Head
9A	W10614849 Whirlpool Grommet
9	W11206740 Whirlpool Grommet
10	WP8287059 Whirlpool Screw
11	W10652710 Whirlpool Orifice Spud
11B	W10791082 Whirlpool Spud Orifice
11C	W10791073 Whirlpool Gas Orifice Spud
11A	W10791079 Whirlpool Orifice Spud
12A	W11507532 Whirlpool Surface Igniter
12	W11507531 Whirlpool Surface Igniter Assembly
13	W11699921 Whirlpool Screw
