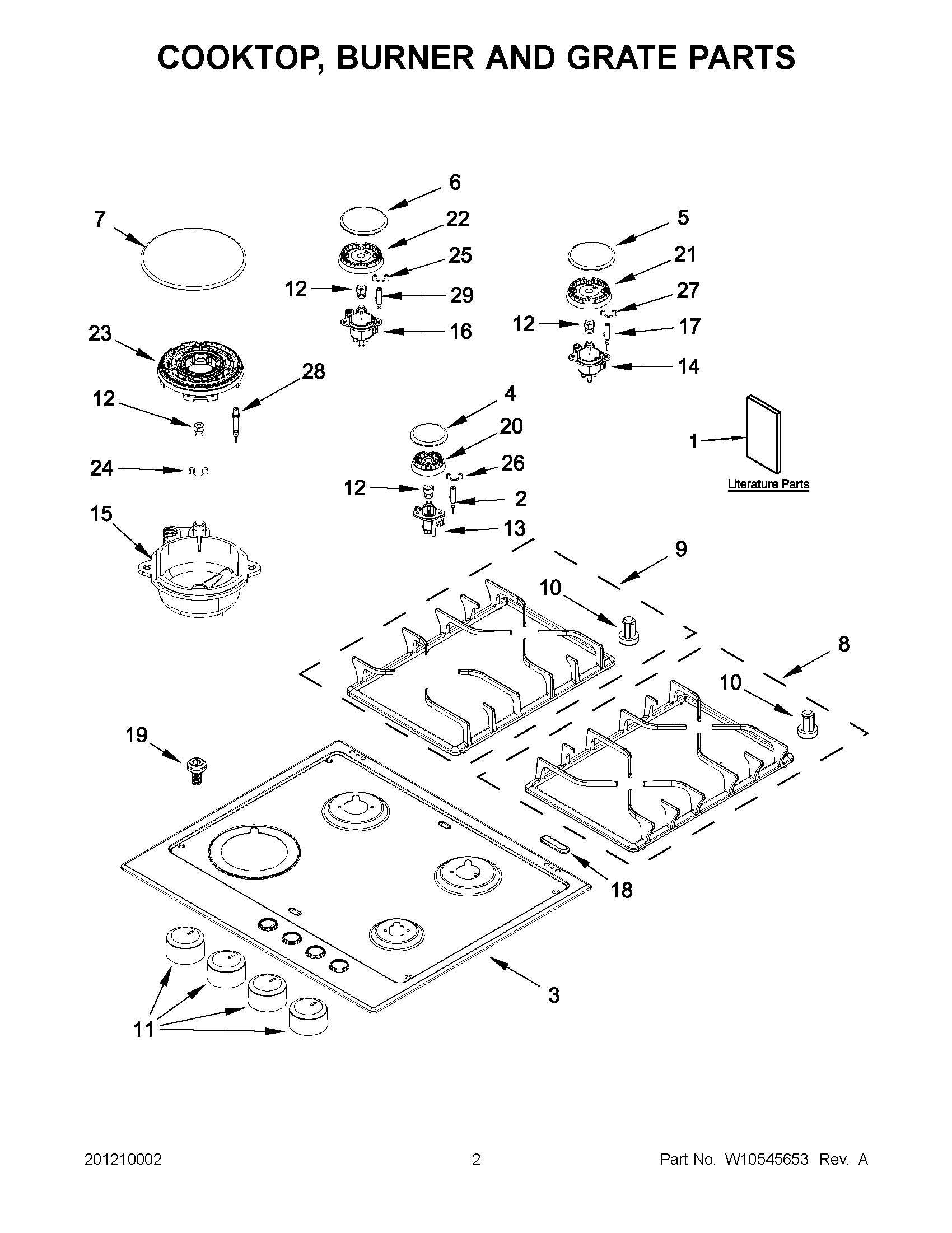

WCG52424AS0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1	GAS CONVERSION INSTRUCTIONS
3	COOKTOP, GAS STAINLESS
4	W10483939 Whirlpool Burner Cap
6	W10483940 Whirlpool Burner Cap
7	BURNER CAP UR LEFT FRONT
8	GRATE, RIGHT SIDE
9	GRATE, LEFT SIDE
10	BUMPER, GRATE
11	KNOB, GAS COOKTOP
12	KIT, NATURAL GAS ORIFICES
12	KIT, LIQUID PROPANE ORIFICES
13	HOLDER, ORIFICE AUX RIGHT FRONT
15	HOLDER, ORIFICE UR LEFT FRONT
16	HOLDER, ORIFICE SR LEFT REAR
18	W10483906 Whirlpool Cooktop Trim
19	SCREW, COOKTOP
20	W10483936 Whirlpool Burner Base
22	W10483937 Whirlpool Burner Base
23	HEAD, BURNER UR LEFT FRONT
27	Spring (Center/Right)
28	Gasket (Left/Right)
29	W10484335 Whirlpool Surface Igniter
