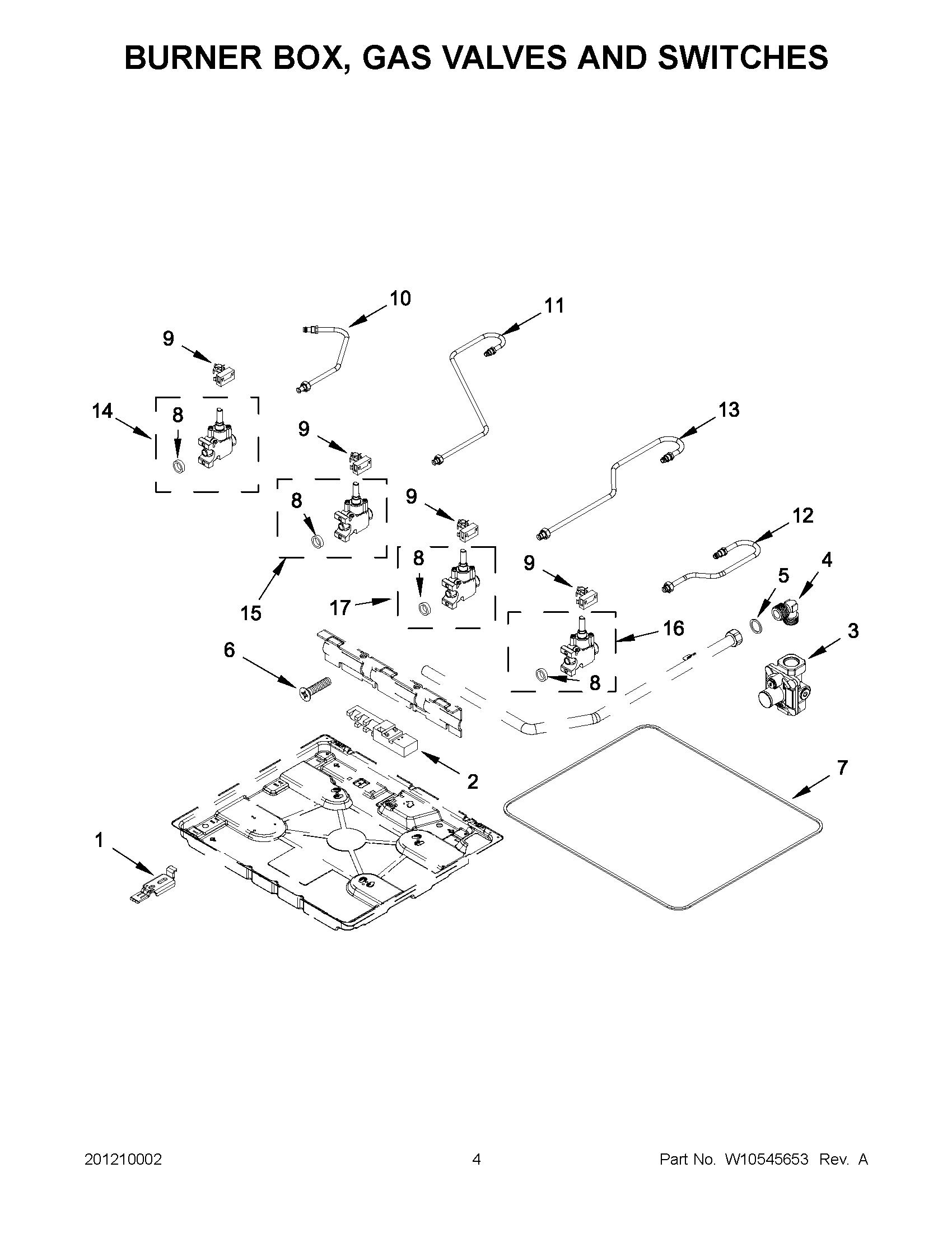

WCG52424AS0 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
1BRACKET, MOUNTING COOKTOP
2MODULE, SPARK AND TERMINAL BOARD
38186962 Whirlpool Oven Regulator
4Elbow Pipe, Manfld
5Ring, Gasket
6SCREW, MANIFOLD 8-18X5/16
7GASKET, COOKTOP
8Ring, Gasket
9SWITCH, IGNITION
10W10517731 Whirlpool Gas Tubing
11TUBING, GAS SR LEFT REAR
12TUBING, GAS AUX RIGHT FRONT
13W10484462 Whirlpool Gas Supply Tubing
14Valve, Gas (LF)
16Valve, Gas (RF)
17VALVE, GAS (LR,RR)
