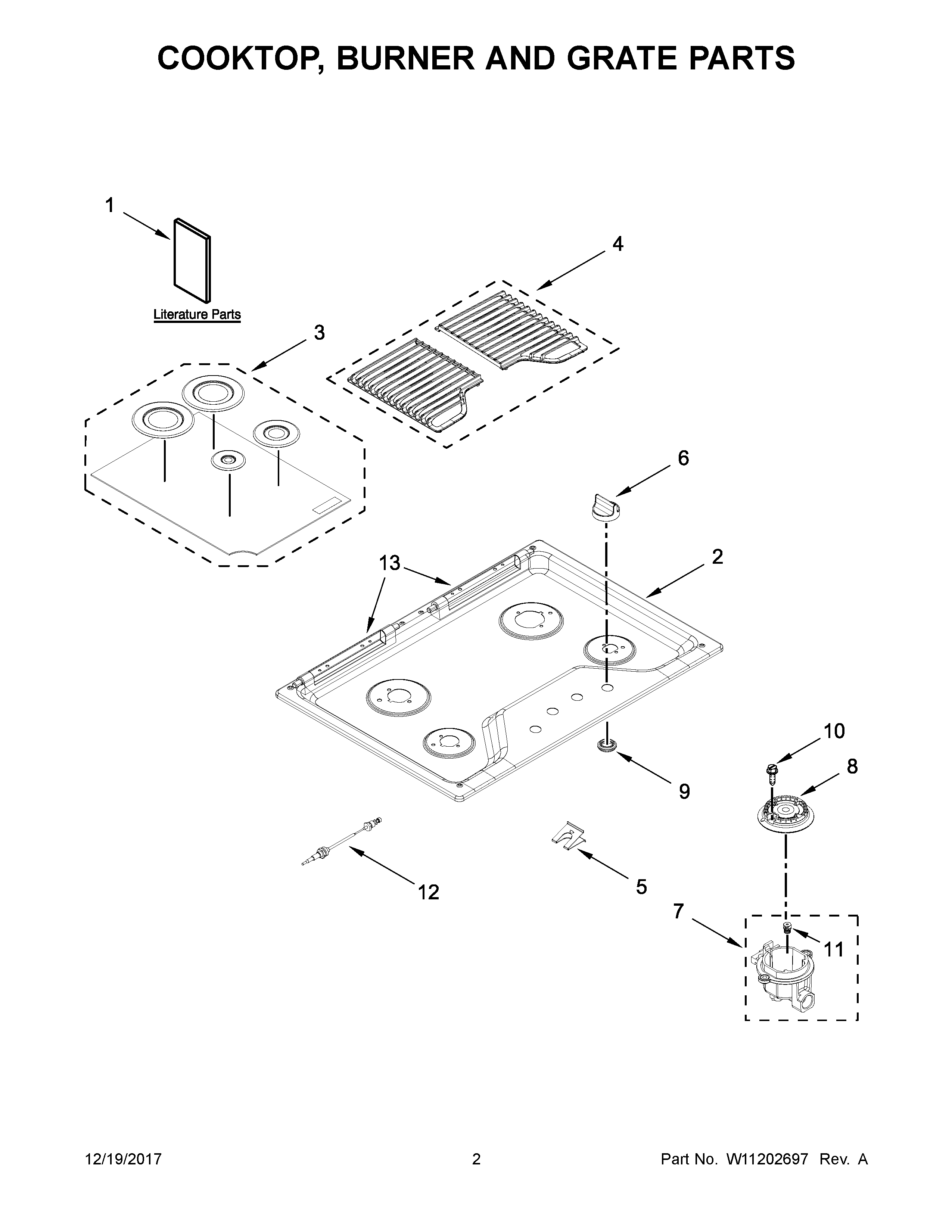

WCG55US0HB00 02 – COOKTOP, BURNER AND GRATE PARTS

WCG55US0HB00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

WCG55US0HB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11561439 Whirlpool Wire Harness
NIW11205318 Whirlpool Orifice Spud
NI16515 Whirlpool Clip
NISCREW
NIBRACKET, MOUNTING
NIW10392003 Whirlpool Power Cord
NIW10132200 Whirlpool Strain Relief
1CINSTRUCTIONS, LP CONVERSION
1BGUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
1AUNDERCOUNTER INSTALL INSTRUCTIONS
2COOKTOP (BLACK)
2AW11204006 Whirlpool Cooktop
3WPW10597129 Whirlpool Burner Cap
4W11214957 Whirlpool Burner Grate
58286863 Whirlpool Oven Clip
6W11397138 Whirlpool Knob Assembly
6AW11084621 Whirlpool Knob
7BW10594402 Whirlpool Orifice Holder
7AW10609591 Whirlpool Orifice Holder
7W10594399 Whirlpool Orifice Holder
7CW10597159 Whirlpool Orifice Holder
8BWP8286814 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
8AWP8286815 Whirlpool Burner Head
9AW10614849 Whirlpool Grommet
9W11206740 Whirlpool Grommet
10W11676349 Whirlpool Screw
11AW10791073 Whirlpool Gas Orifice Spud
11BW10652710 Whirlpool Orifice Spud
11CW10791079 Whirlpool Orifice Spud
11W10791082 Whirlpool Spud Orifice
12W11507531 Whirlpool Surface Igniter Assembly
12AW11507532 Whirlpool Surface Igniter
