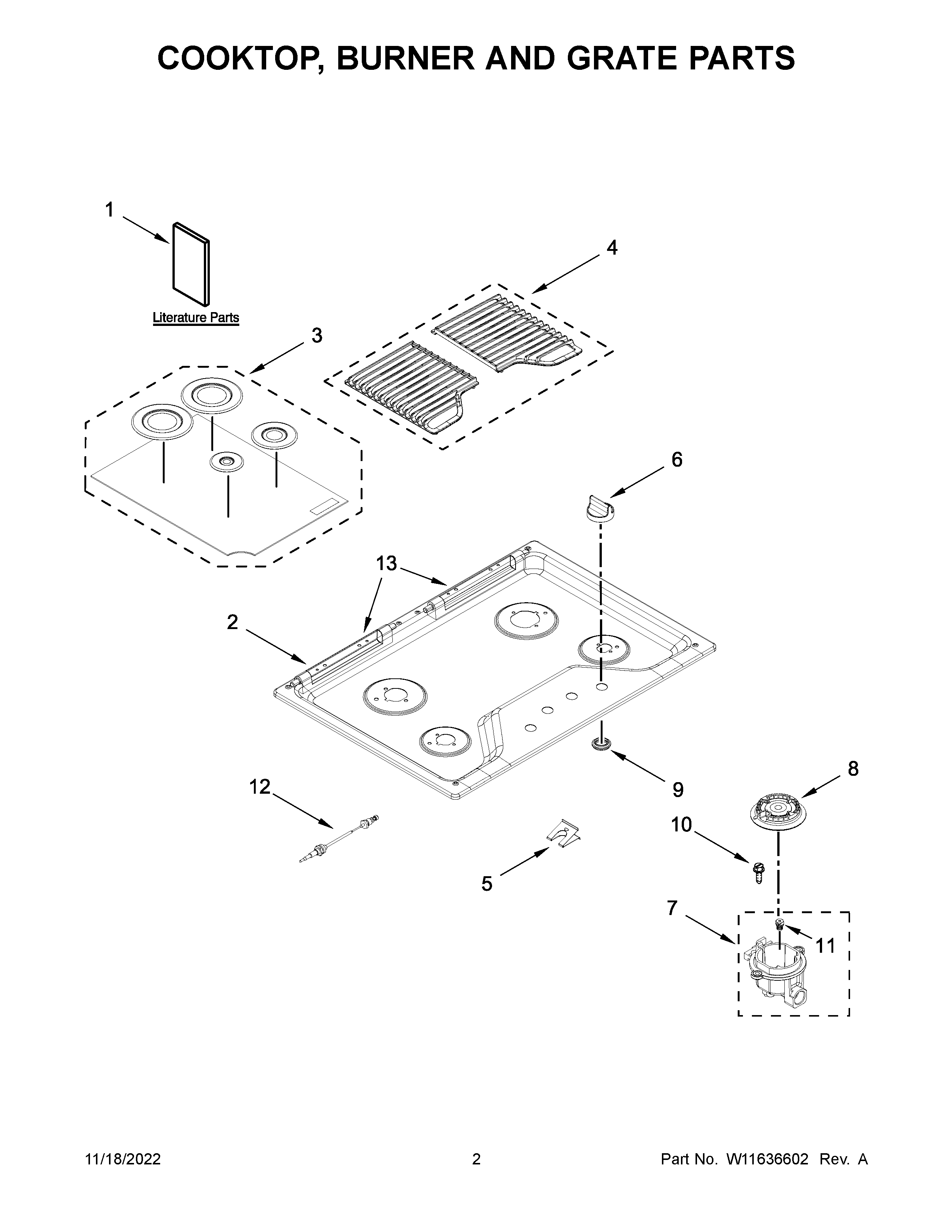

WCG55US0HB05 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	W11561439 Whirlpool Wire Harness
NI	W11637584 Whirlpool Wire Harness
NI	W11205318 Whirlpool Orifice Spud
NI	16515 Whirlpool Clip
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNER'S MANUAL
1A	QUICK START GUIDE
2	COOKTOP (BLACK)
3	WPW10597129 Whirlpool Burner Cap
4	W11214957 Whirlpool Burner Grate
5	8286863 Whirlpool Oven Clip
6	W11397138 Whirlpool Knob Assembly
7C	W10597159 Whirlpool Orifice Holder
7B	W10594402 Whirlpool Orifice Holder
7	W10594399 Whirlpool Orifice Holder
7A	W10609591 Whirlpool Orifice Holder
8B	WP8286814 Whirlpool Burner Head
8	WP8286813 Whirlpool Burner Head
8A	WP8286815 Whirlpool Burner Head
9	W11206740 Whirlpool Grommet
10	W11676349 Whirlpool Screw
11B	W10652710 Whirlpool Orifice Spud
11	W10791082 Whirlpool Spud Orifice
11A	W10791073 Whirlpool Gas Orifice Spud
11C	W10791079 Whirlpool Orifice Spud
12A	W11507532 Whirlpool Surface Igniter
12	W11507531 Whirlpool Surface Igniter Assembly
