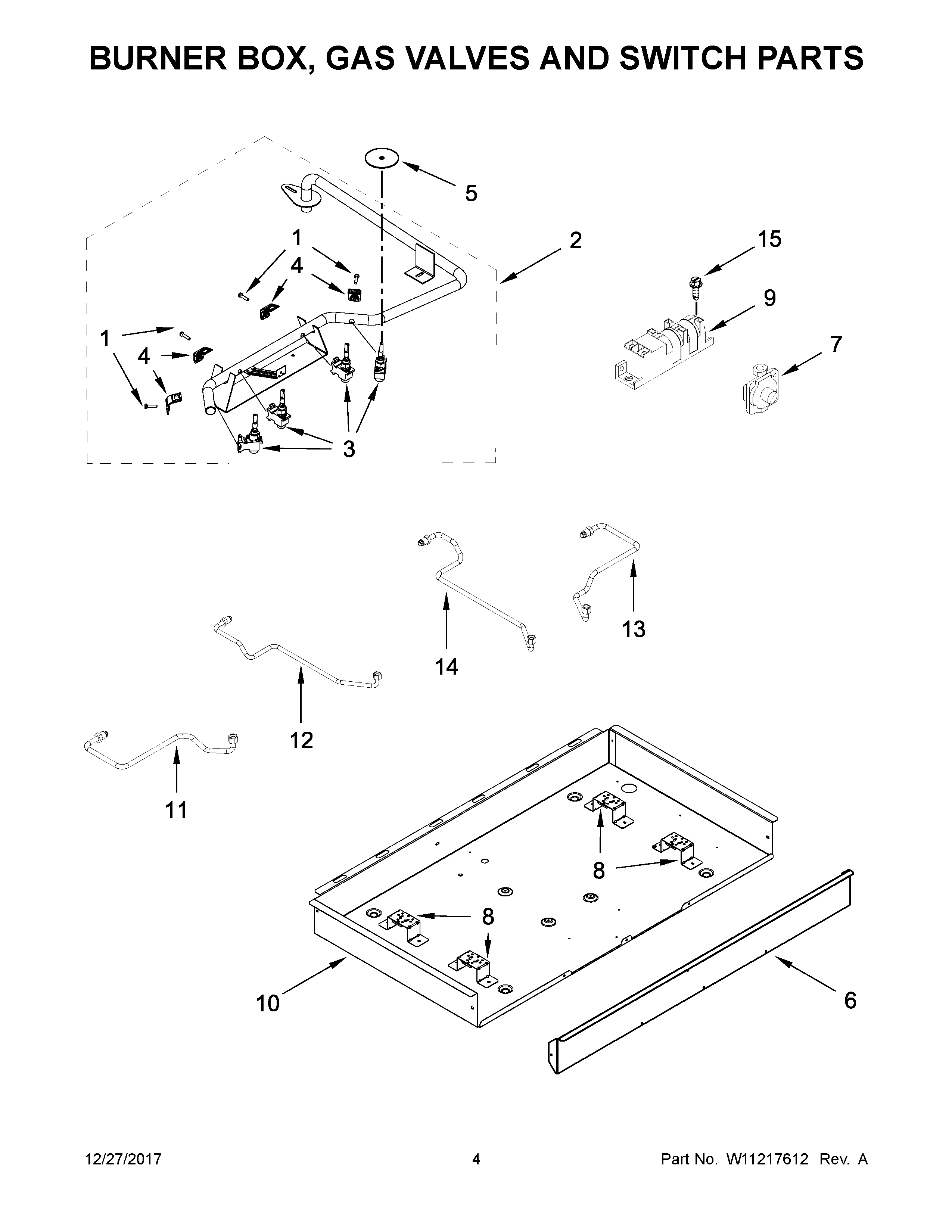

WCG55US0HS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	W10698166 Whirlpool Range Control Knob
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10685483 Whirlpool Range Griddle
NI	W10594440 Whirlpool Range 4-Burner Wetstone Grate Kit
1	8287057 Whirlpool Oven Screw
2	W10594394 Whirlpool Manifold
3B	W10859922 Whirlpool Gas Valve
3A	W11256503 Whirlpool Gas Valve Assembly
3	W10597157 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	W10140571 Whirlpool Seal Switch
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	MODULE-SPK
11	W10566287 Whirlpool Gas Tubing
12	W10566288 Whirlpool Gas Tubing
13	W10566290 Whirlpool Gas Tubing
14	W10566289 Whirlpool Gas Tubing
15	SCREW
