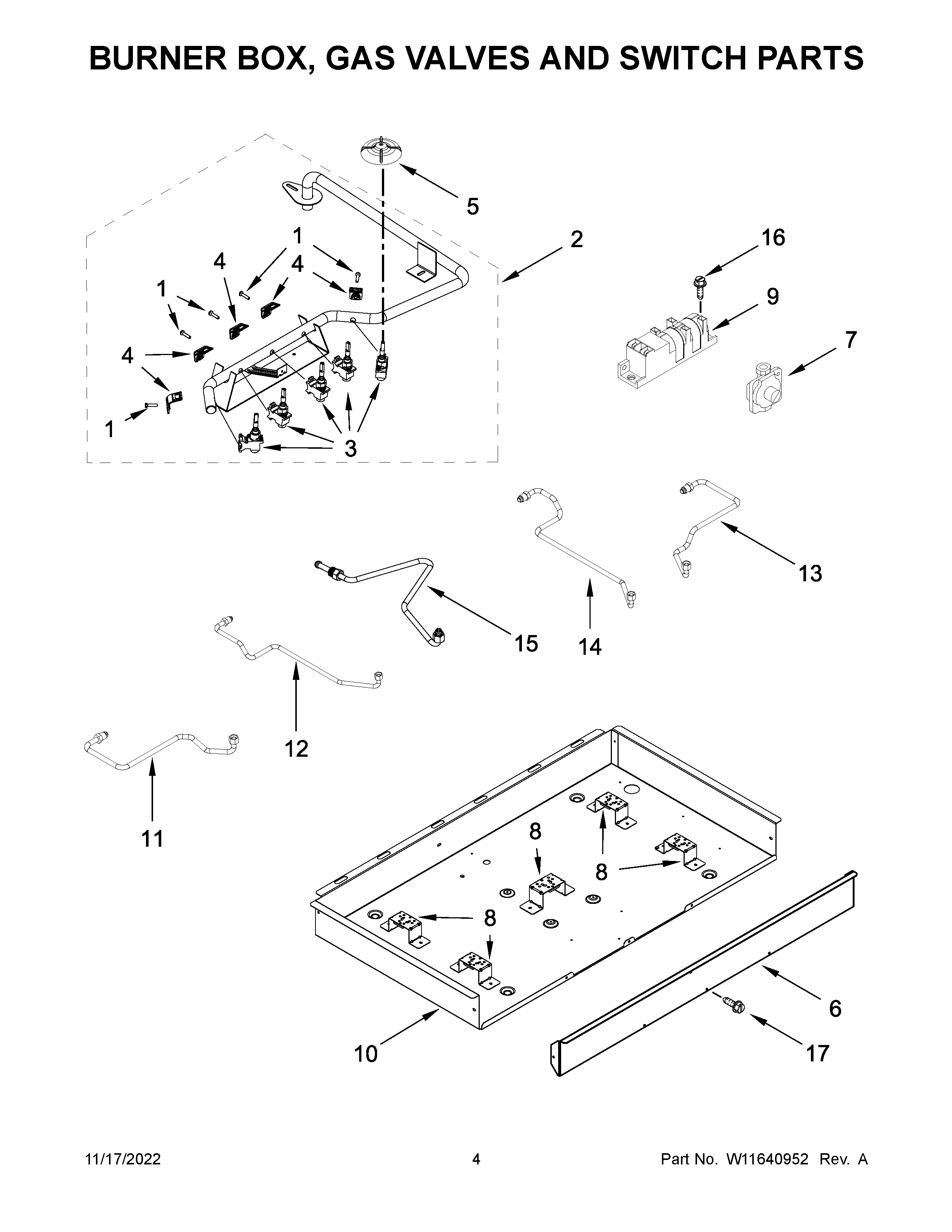

WCG55US6HB05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	W10685483 Whirlpool Range Griddle
1	8287057 Whirlpool Oven Screw
2	W10594396 Whirlpool Manifold
3	W11677628 Whirlpool Microwave Gas Valve
3C	W11712403 Whirlpool Gas Valve
3B	W10859922 Whirlpool Gas Valve
3A	W11256503 Whirlpool Gas Valve Assembly
4	8287055 Whirlpool Oven Mounting Bracket
5	W11507167 Whirlpool Switch Seal
6	W10718141 Whirlpool Manifold Panel
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W10566305 Whirlpool Gas Tubing
12	W10566306 Whirlpool Gas Tubing Assembly
13	W10566308 Whirlpool Gas Tubing
14	W10566307 Whirlpool Gas Tubing
15	W10566302 Whirlpool Gas Tubing
16	SCREW
17	WP3196557 Whirlpool Screw
