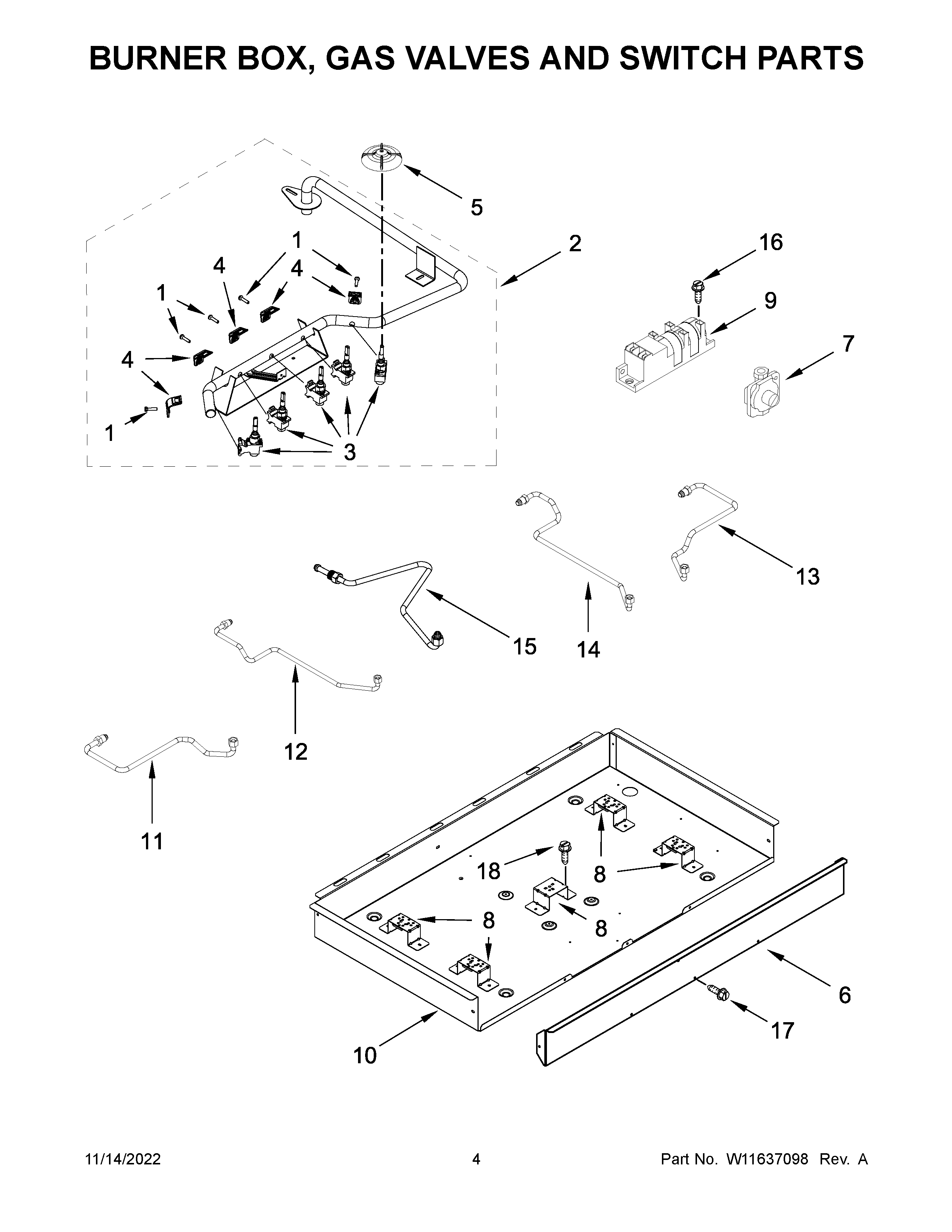

WCG55US6HS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

WCG55US6HS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

WCG55US6HS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
NIW10685483 Whirlpool Range Griddle
18287057 Whirlpool Oven Screw
2W10594396 Whirlpool Manifold
3W11677628 Whirlpool Microwave Gas Valve
3BW10859922 Whirlpool Gas Valve
3AW11256503 Whirlpool Gas Valve Assembly
3CW11712403 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5W11507167 Whirlpool Switch Seal
6W10718141 Whirlpool Manifold Panel
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9WPW10475149 Whirlpool Spark Module
10BOX, BURNER
11W10566305 Whirlpool Gas Tubing
12W10566306 Whirlpool Gas Tubing Assembly
13W10566308 Whirlpool Gas Tubing
14W10566307 Whirlpool Gas Tubing
15W10566302 Whirlpool Gas Tubing
16SCREW
17WP3196557 Whirlpool Screw
18W10443110 Whirlpool Screw
