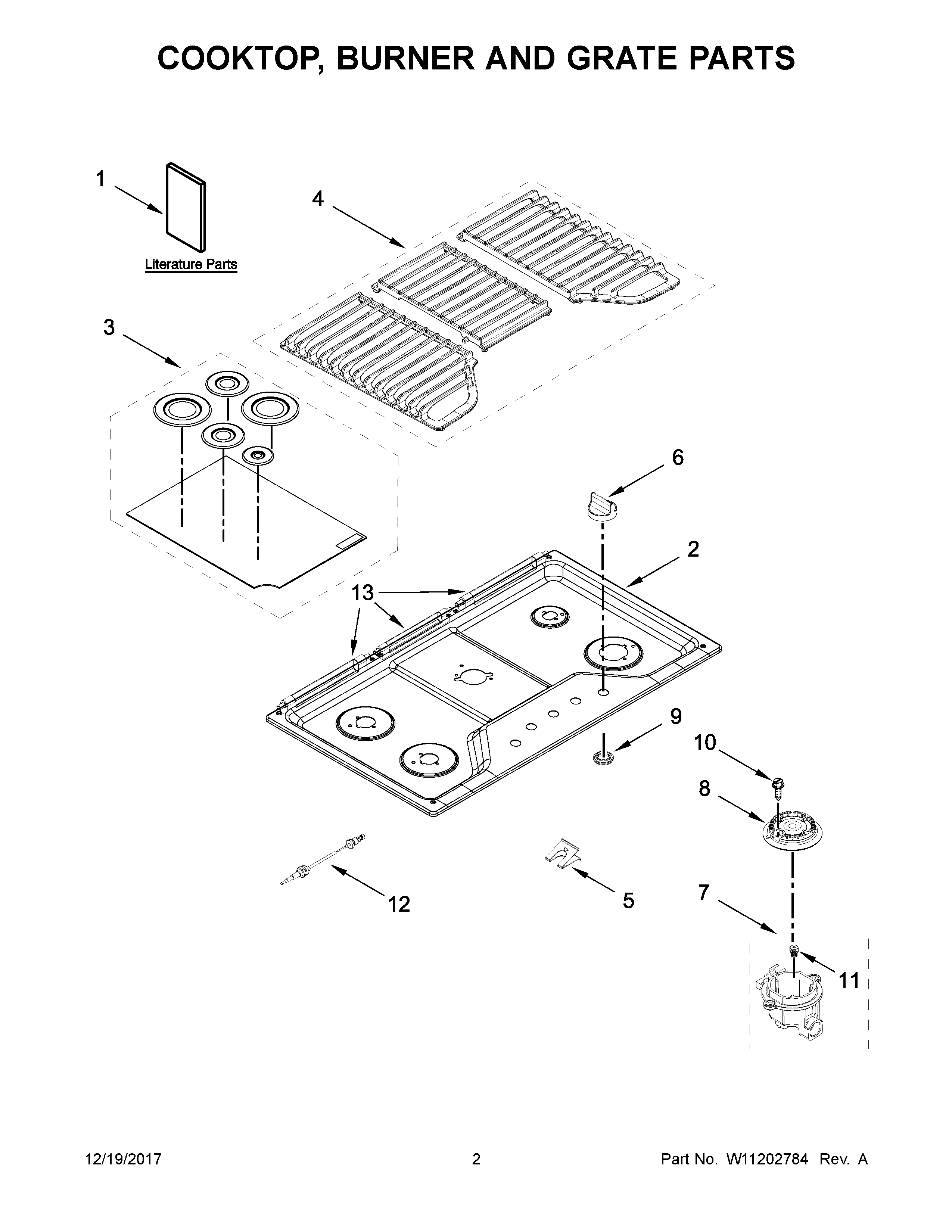

WCG55US6HW00 02 – COOKTOP, BURNER AND GRATE PARTS

WCG55US6HW00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

WCG55US6HW00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11561443 Whirlpool Wire Harness
NIW11205318 Whirlpool Orifice Spud
NI16515 Whirlpool Clip
NISCREW
NIBRACKET, MOUNTING
NIW10132200 Whirlpool Strain Relief
NIW10392003 Whirlpool Power Cord
1CINSTRUCTIONS, LP CONVERSION
1AUNDERCOUNTER INSTALL INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
1BGUIDE, USE & CARE
2W11204392 Whirlpool Cooktop
2AW11204394 Whirlpool Cooktop
3W10832694 Whirlpool Surface Burner Cap
4W11204377 Whirlpool Burner Grate
58286863 Whirlpool Oven Clip
6W11397138 Whirlpool Knob Assembly
6AW11084621 Whirlpool Knob
7BW10594399 Whirlpool Orifice Holder
7W10594402 Whirlpool Orifice Holder
7AW10597159 Whirlpool Orifice Holder
7CW10609591 Whirlpool Orifice Holder
8WP8286814 Whirlpool Burner Head
8BWP8286813 Whirlpool Burner Head
8AWP8286815 Whirlpool Burner Head
9AW10614849 Whirlpool Grommet
9W11206740 Whirlpool Grommet
10W11676349 Whirlpool Screw
11CW10791073 Whirlpool Gas Orifice Spud
11AW10791079 Whirlpool Orifice Spud
11W10652710 Whirlpool Orifice Spud
11BW10791082 Whirlpool Spud Orifice
12AW11507532 Whirlpool Surface Igniter
12W11507531 Whirlpool Surface Igniter Assembly
