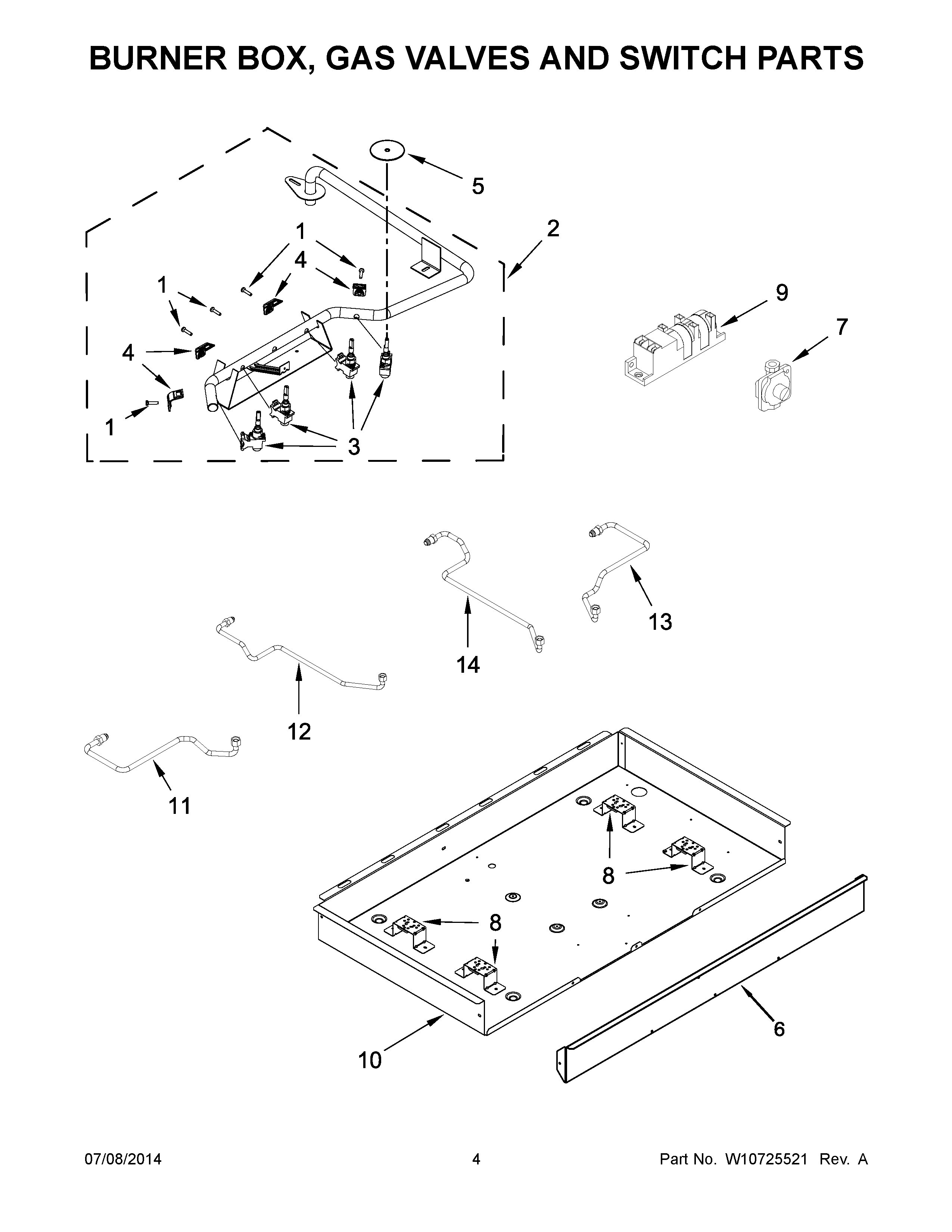

WCG75US0DB00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10685483 Whirlpool Range Griddle
NI	W10594440 Whirlpool Range 4-Burner Wetstone Grate Kit
NI	W10698166 Whirlpool Range Control Knob
NI	W10558556 Whirlpool Wire Harness
NI	W10676661 Whirlpool Cooktop Spud Orifice
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
NI	16515 Whirlpool Clip
1	8287057 Whirlpool Oven Screw
2	ASSEMBLY, MANIFOLD
3	W10613388 Whirlpool Gas Valve
3	W10859922 Whirlpool Gas Valve
3	W11256503 Whirlpool Gas Valve Assembly
3	W10597157 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	W10140571 Whirlpool Seal Switch
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	MODULE-SPK
10	BOX, BURNER
11	W10566287 Whirlpool Gas Tubing
12	TUBING, GAS BURNER (LEFT REAR)
13	W10566290 Whirlpool Gas Tubing
14	W10566289 Whirlpool Gas Tubing
