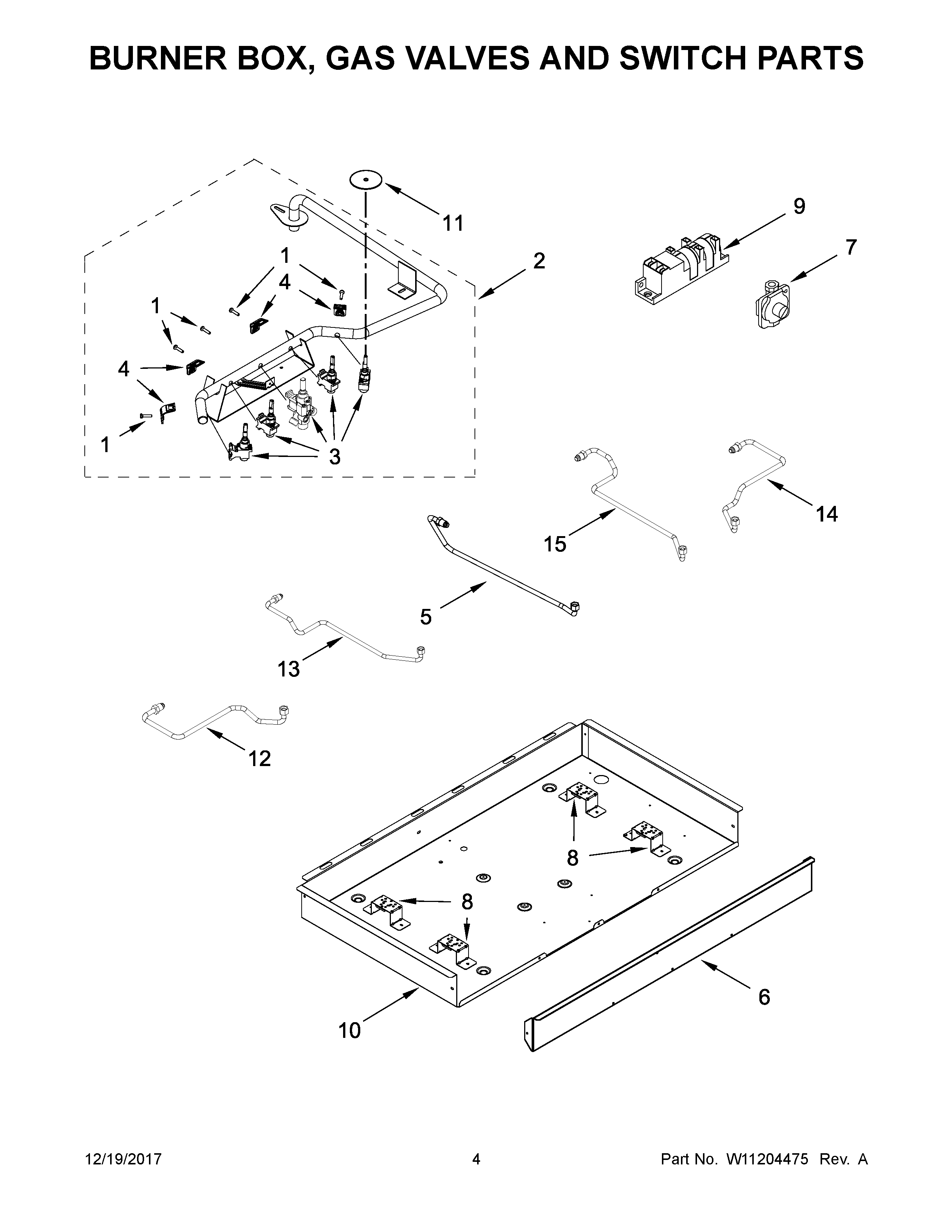

WCG77US0HS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10685483 Whirlpool Range Griddle
1	W11676349 Whirlpool Screw
2	W11170045 Whirlpool Manifold
3A	W11256503 Whirlpool Gas Valve Assembly
3	W11677628 Whirlpool Microwave Gas Valve
3C	W11712403 Whirlpool Gas Valve
3B	W10859922 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	W10566302 Whirlpool Gas Tubing
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W10140571 Whirlpool Seal Switch
12	W10566287 Whirlpool Gas Tubing
13	W10566295 Whirlpool Gas Turbine
14	W10566290 Whirlpool Gas Tubing
15	W10566289 Whirlpool Gas Tubing
