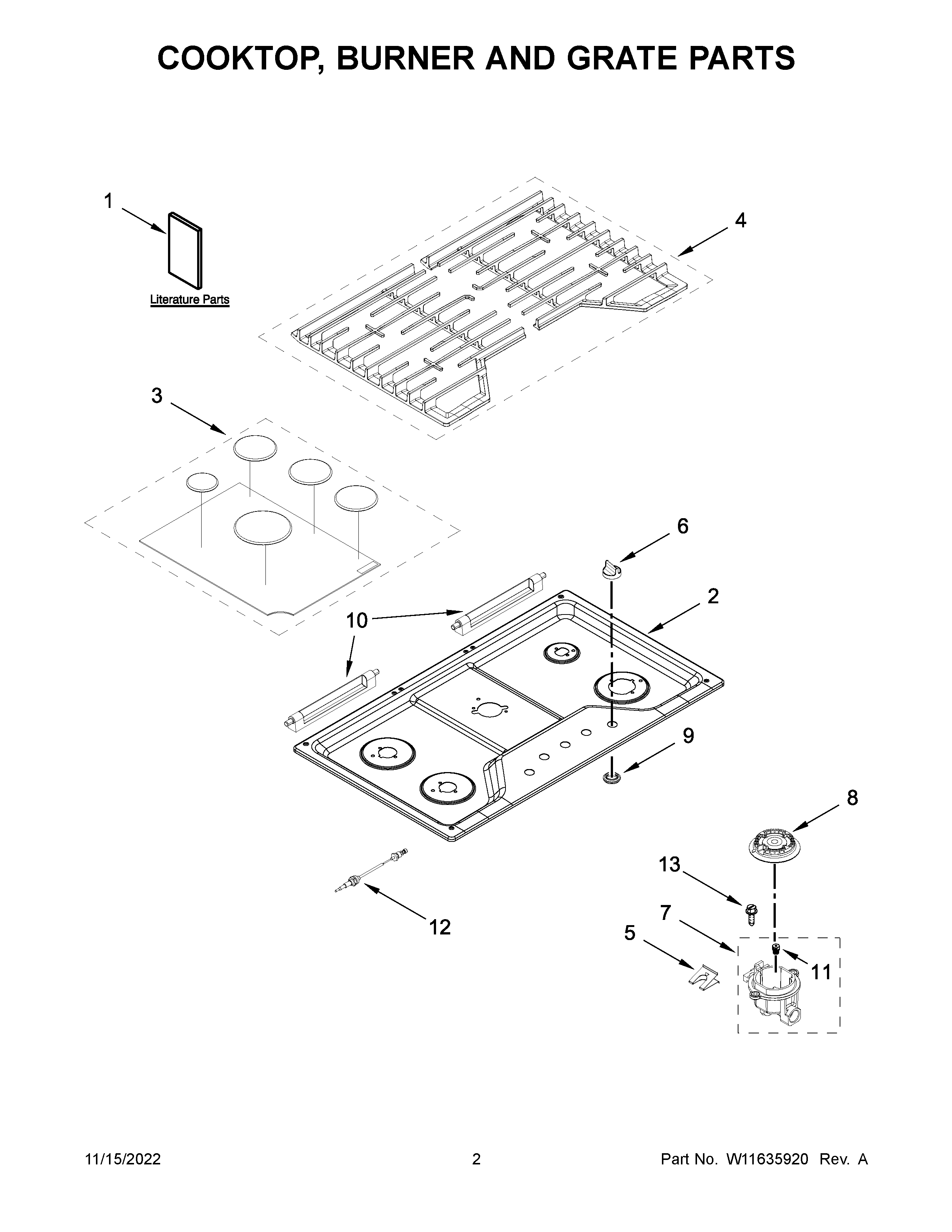

WCG77US0HS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	W11637584 Whirlpool Wire Harness
NI	W11561443 Whirlpool Wire Harness
NI	W11205318 Whirlpool Orifice Spud
NI	16515 Whirlpool Clip
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
NI	CABINET (NOT A SERVICEABLE PART)
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11205392 Whirlpool Cooktop
3	W11205294 Whirlpool Cooktop Burner Cap
4	W11204009 Whirlpool Grate Kit
5	8286863 Whirlpool Oven Clip
6	W11366438 Whirlpool Cooktop Stainless Control Knob
7	W10597166 Whirlpool Orifice Holder
7C	W10594399 Whirlpool Orifice Holder
7B	W10613381 Whirlpool Orifice Holder
7A	W10609591 Whirlpool Orifice Holder
8	WP8286814 Whirlpool Burner Head
8A	WP8286815 Whirlpool Burner Head
8B	WP8286813 Whirlpool Burner Head
9	W11206740 Whirlpool Grommet
10	W10826075 Whirlpool Cooktop Hinge
11B	W10791076 Whirlpool Spud Orifice
11	W10652710 Whirlpool Orifice Spud
11A	W10791073 Whirlpool Gas Orifice Spud
11C	W10791082 Whirlpool Spud Orifice
12A	W11507532 Whirlpool Surface Igniter
12	W11507531 Whirlpool Surface Igniter Assembly
13	W11676349 Whirlpool Screw
