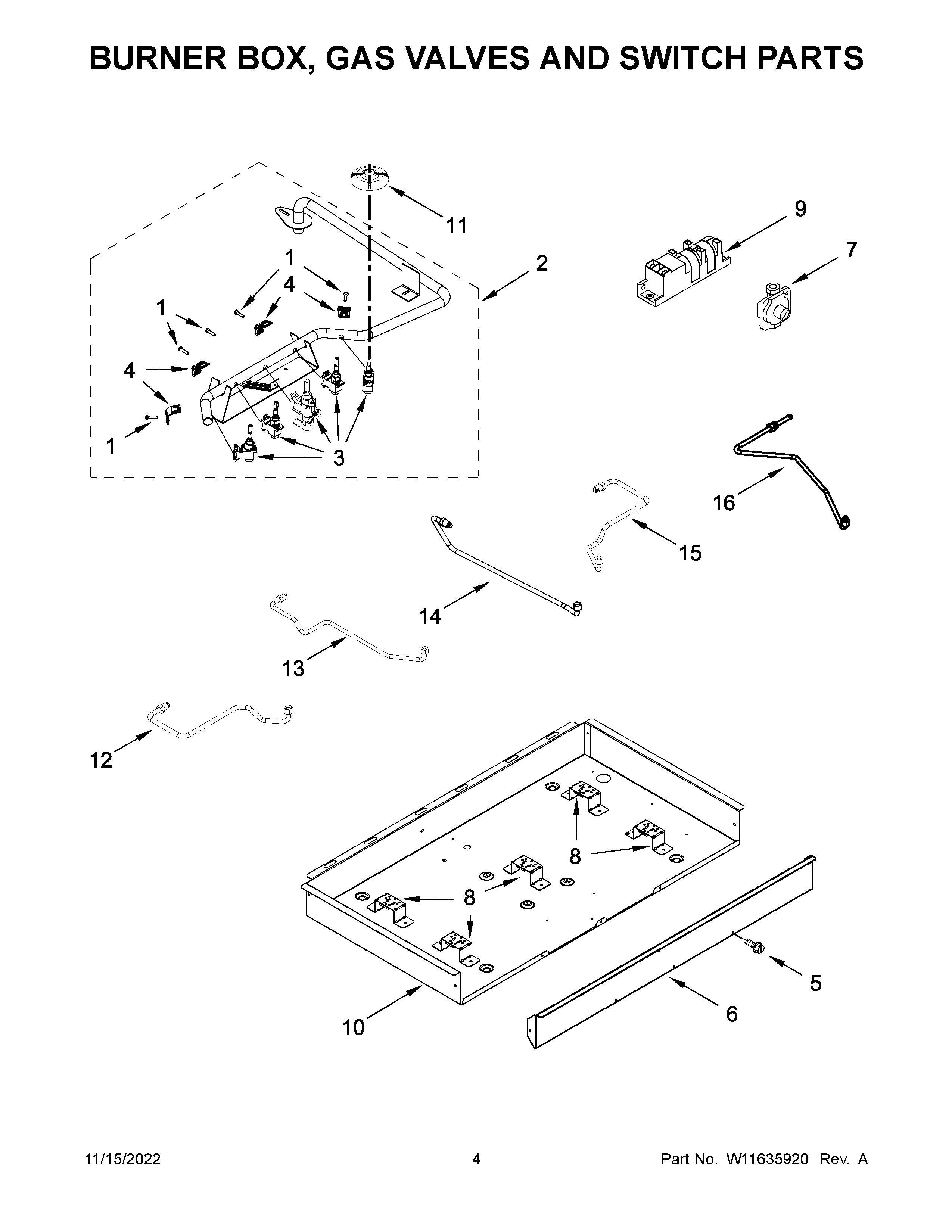

WCG77US0HS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10685483 Whirlpool Range Griddle
NI	ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
1	8287057 Whirlpool Oven Screw
2	W11170045 Whirlpool Manifold
3C	W11712403 Whirlpool Gas Valve
3A	W11256503 Whirlpool Gas Valve Assembly
3B	W10859922 Whirlpool Gas Valve
3	W11677628 Whirlpool Microwave Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	WP3196557 Whirlpool Screw
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W11507167 Whirlpool Switch Seal
12	W10566287 Whirlpool Gas Tubing
13	W10566295 Whirlpool Gas Turbine
14	W10566302 Whirlpool Gas Tubing
15	W10566290 Whirlpool Gas Tubing
16	TUBING, GAS BURNER (RIGHT REAR)
