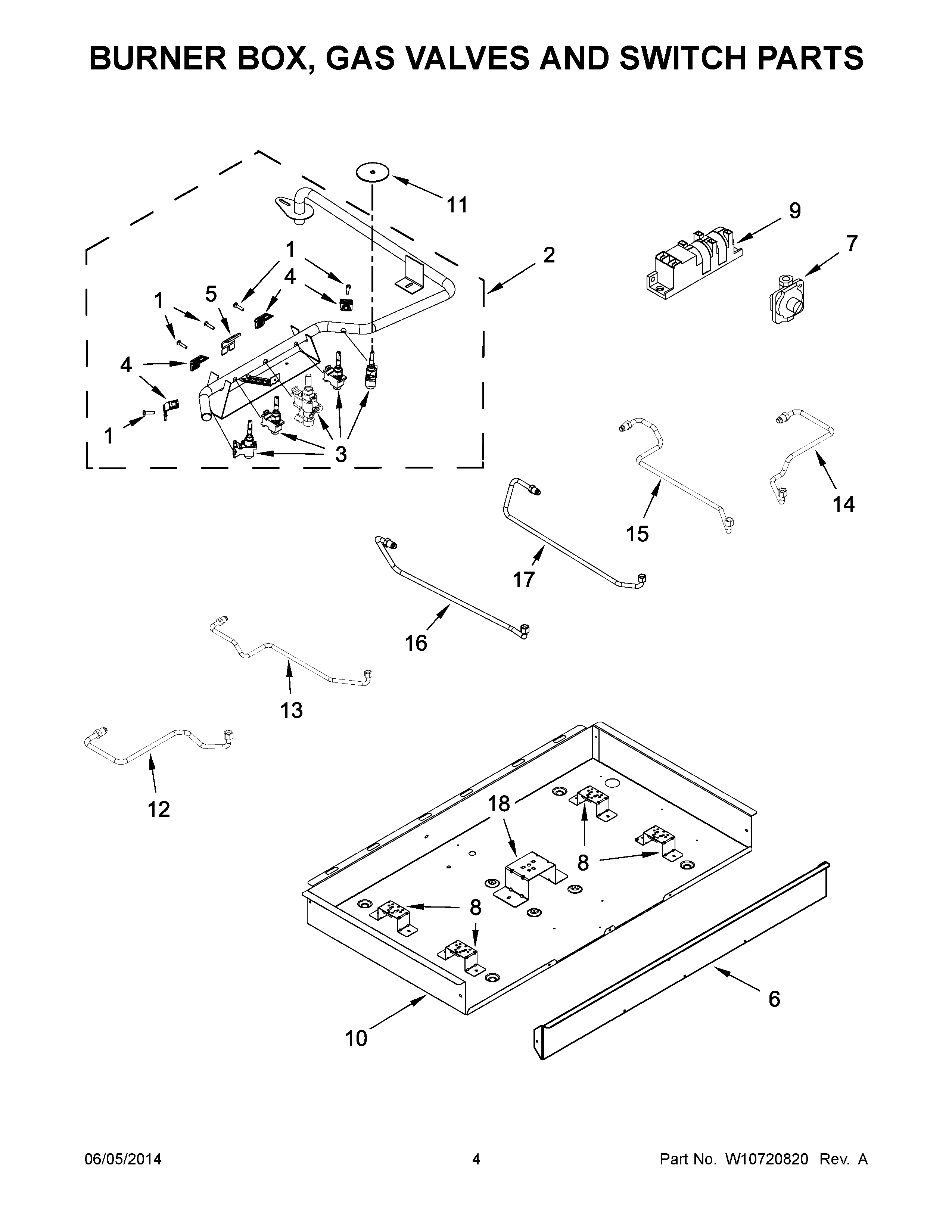

WCG97US0DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10685483 Whirlpool Range Griddle
NI	W10676661 Whirlpool Cooktop Spud Orifice
NI	W11561436 Whirlpool Spark Ignition Switch and Harness
NI	16515 Whirlpool Clip
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
1	8287057 Whirlpool Oven Screw
2	W10594395 Whirlpool Manifold Assembly
3	W11712403 Whirlpool Gas Valve
3	W11677628 Whirlpool Microwave Gas Valve
3	W11246817 Whirlpool Burner Valve
3	W10859922 Whirlpool Gas Valve
3	W11256503 Whirlpool Gas Valve Assembly
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W10140571 Whirlpool Seal Switch
12	W10566294 Whirlpool Gas Tubing
13	W10566295 Whirlpool Gas Turbine
14	W10566299 Whirlpool Gas Tubing
15	TUBING, GAS BURNER (RIGHT REAR)
16	W10566296 Whirlpool Gas Tubing
17	W10566297 Whirlpool Gas Tubing
18	W10594430 Whirlpool Mounting Bracket
