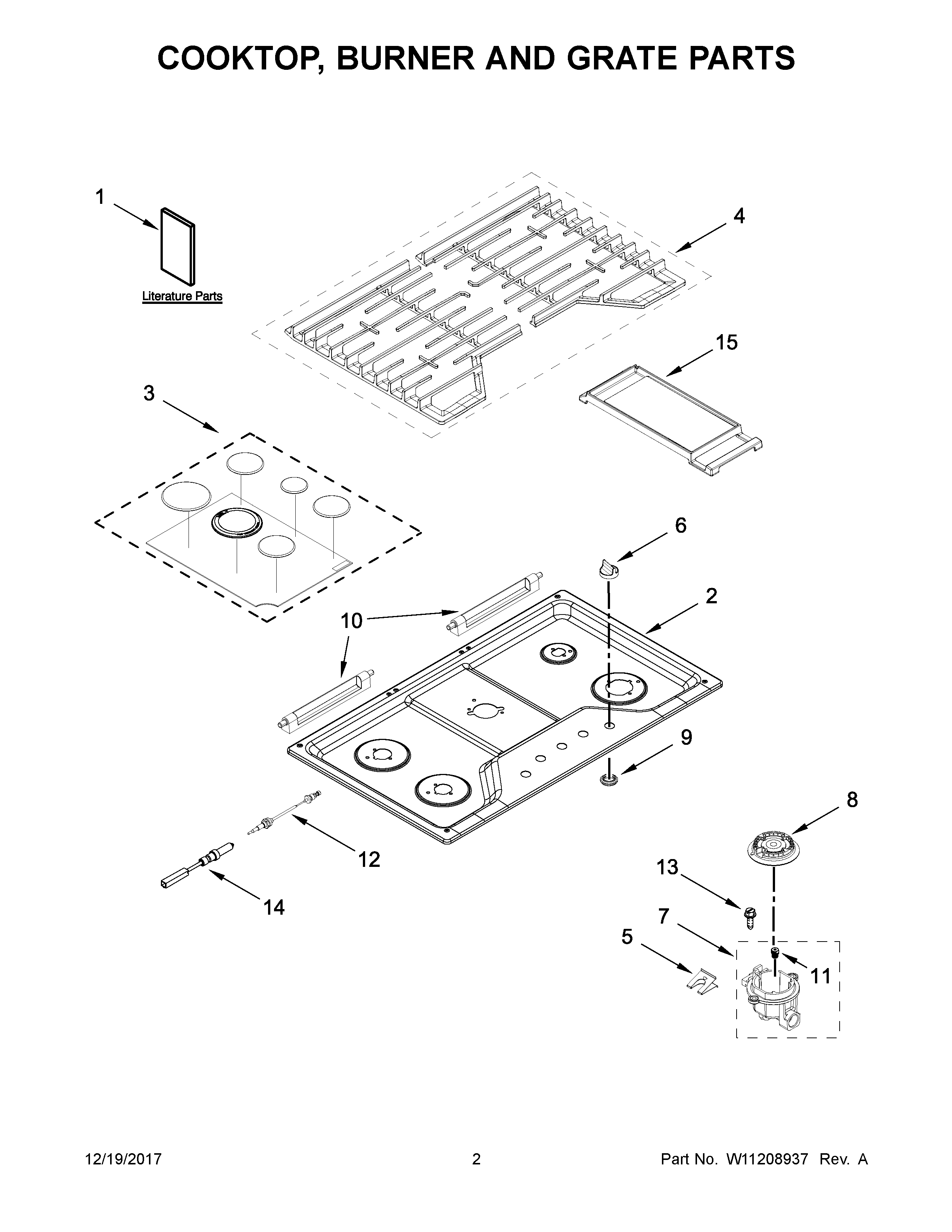

WCG97US0HS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11561436 Whirlpool Spark Ignition Switch and Harness
NI	TAPE, FOAM
NI	16515 Whirlpool Clip
NI	9760045 Whirlpool Oven Foam Seal
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1C	INSTRUCTIONS, LP CONVERSION
1A	UNDERCOUNTER INSTALL INSTRUCTIONS
2	W11209819 Whirlpool Cooktop
3	W10833886 Whirlpool Burner Cap Assembly
4	W11204009 Whirlpool Grate Kit
5	8286863 Whirlpool Oven Clip
6	W11204451 Whirlpool Knob
7	W10613381 Whirlpool Orifice Holder
7B	W11209432 Whirlpool Orifice Holder
7A	W10594399 Whirlpool Orifice Holder
8B	W10811599 Whirlpool Burner Head
8A	WP8286813 Whirlpool Burner Head
8	WP8286814 Whirlpool Burner Head
9	W11206740 Whirlpool Grommet
10	W10826075 Whirlpool Cooktop Hinge
11B	W11209817 Whirlpool Orifice Spud
11C	W11205318 Whirlpool Orifice Spud
11A	W10791082 Whirlpool Spud Orifice
11	W10791076 Whirlpool Spud Orifice
12	W11507531 Whirlpool Surface Igniter Assembly
12A	W11507532 Whirlpool Surface Igniter
13	W11699921 Whirlpool Screw
14	W10852959 Whirlpool Surface Igniter
15	W10685483 Whirlpool Range Griddle
