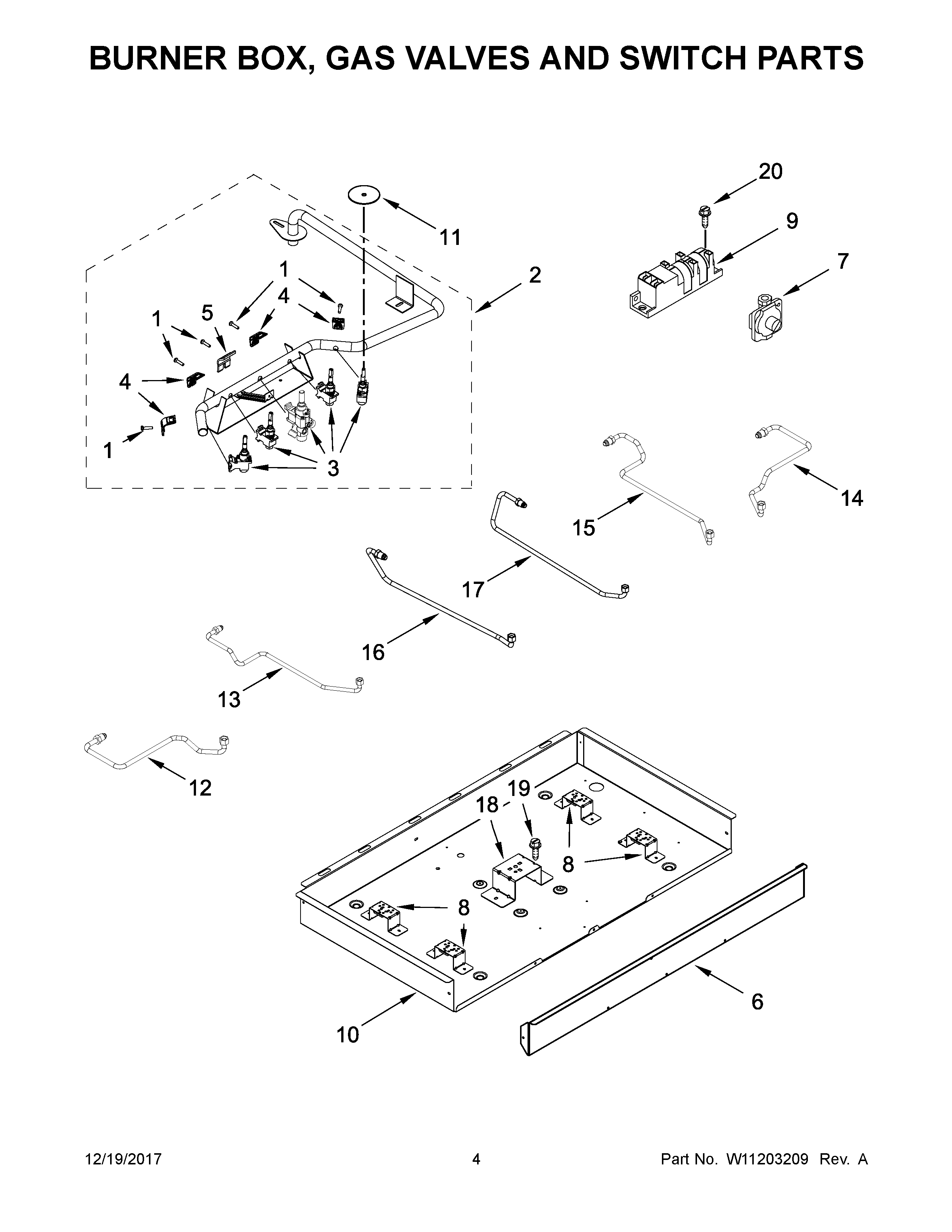

WCG97US6HS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
18287057 Whirlpool Oven Screw
2W11676622 Whirlpool Manifold
3DW11246817 Whirlpool Burner Valve
3CW11712403 Whirlpool Gas Valve
3BW10859922 Whirlpool Gas Valve
3AW11256503 Whirlpool Gas Valve Assembly
3W11677628 Whirlpool Microwave Gas Valve
48287055 Whirlpool Oven Mounting Bracket
58287056 Whirlpool Oven Mounting Bracket
6W10718141 Whirlpool Manifold Panel
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9WPW10475149 Whirlpool Spark Module
10CABINET (NOT A SERVICEABLE PART)
11W10140571 Whirlpool Seal Switch
12W10566305 Whirlpool Gas Tubing
13W10566306 Whirlpool Gas Tubing Assembly
14W10566308 Whirlpool Gas Tubing
15W10566307 Whirlpool Gas Tubing
16W10566296 Whirlpool Gas Tubing
17W10566297 Whirlpool Gas Tubing
18W10594430 Whirlpool Mounting Bracket
19W10443110 Whirlpool Screw
20SCREW
