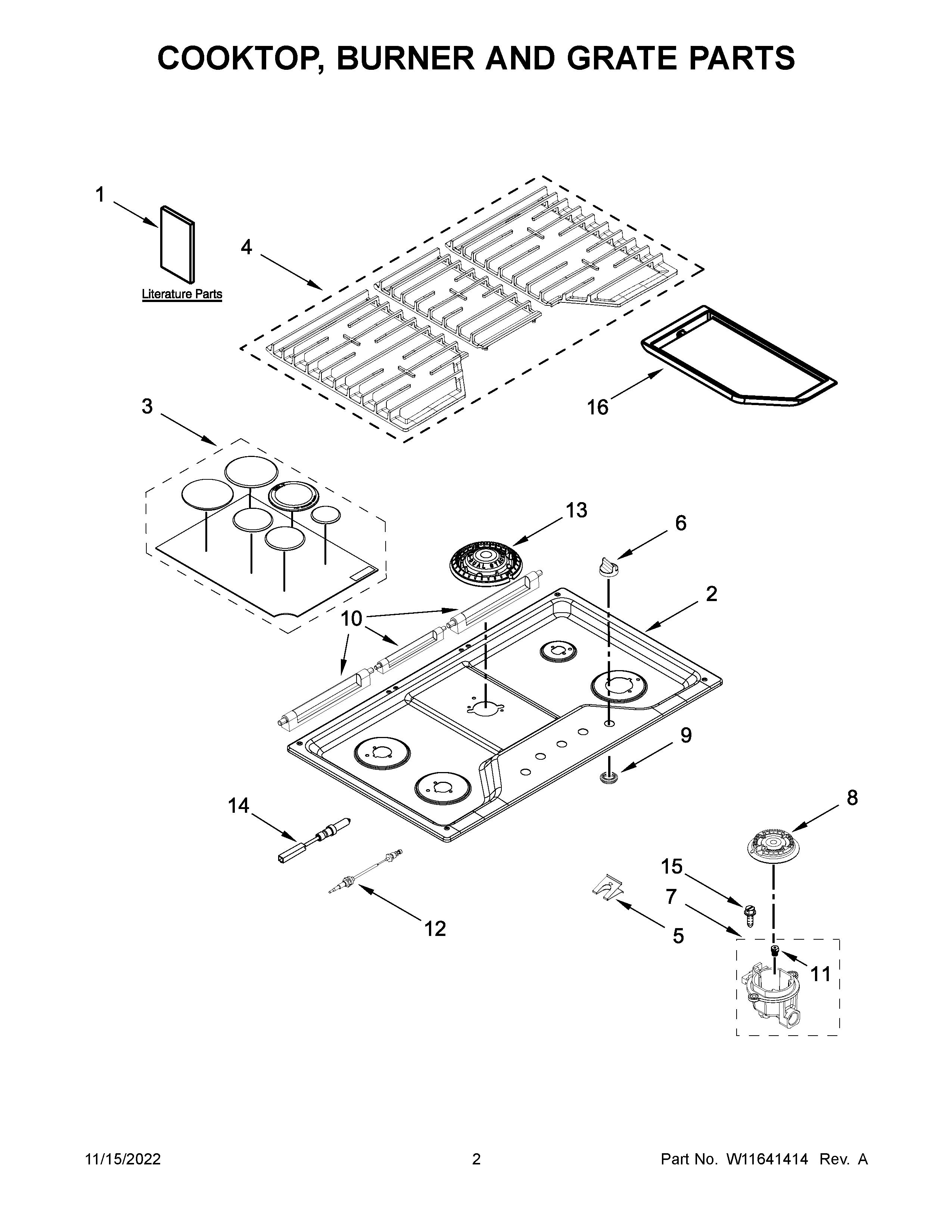

WCG97US6HS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	W11637584 Whirlpool Wire Harness
NI	TAPE, FOAM
NI	W11561436 Whirlpool Spark Ignition Switch and Harness
NI	16515 Whirlpool Clip
NI	9760045 Whirlpool Oven Foam Seal
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNER'S MANUAL
1A	QUICK START GUIDE
2	W11204397 Whirlpool Cooktop
3	CAP-BURNER
4	W11204377 Whirlpool Burner Grate
5	8286863 Whirlpool Oven Clip
6	W11204451 Whirlpool Knob
7	W10597166 Whirlpool Orifice Holder
7B	W10594399 Whirlpool Orifice Holder
7A	W10594405 Whirlpool Orifice Holder
7C	W11217186 Whirlpool Ore Holder
8	WP8286814 Whirlpool Burner Head
8A	WP8286813 Whirlpool Burner Head
8B	WP8286815 Whirlpool Burner Head
9	W11206740 Whirlpool Grommet
10	W10826075 Whirlpool Cooktop Hinge
11D	W11205318 Whirlpool Orifice Spud
11C	W11217198 Whirlpool Spud Orifice
11B	W10791082 Whirlpool Spud Orifice
11	W10652710 Whirlpool Orifice Spud
11A	W10791079 Whirlpool Orifice Spud
12A	W11507532 Whirlpool Surface Igniter
12	W11507531 Whirlpool Surface Igniter Assembly
13	W10811599 Whirlpool Burner Head
14	W10852959 Whirlpool Surface Igniter
15	W11699921 Whirlpool Screw
16	W10685483 Whirlpool Range Griddle
