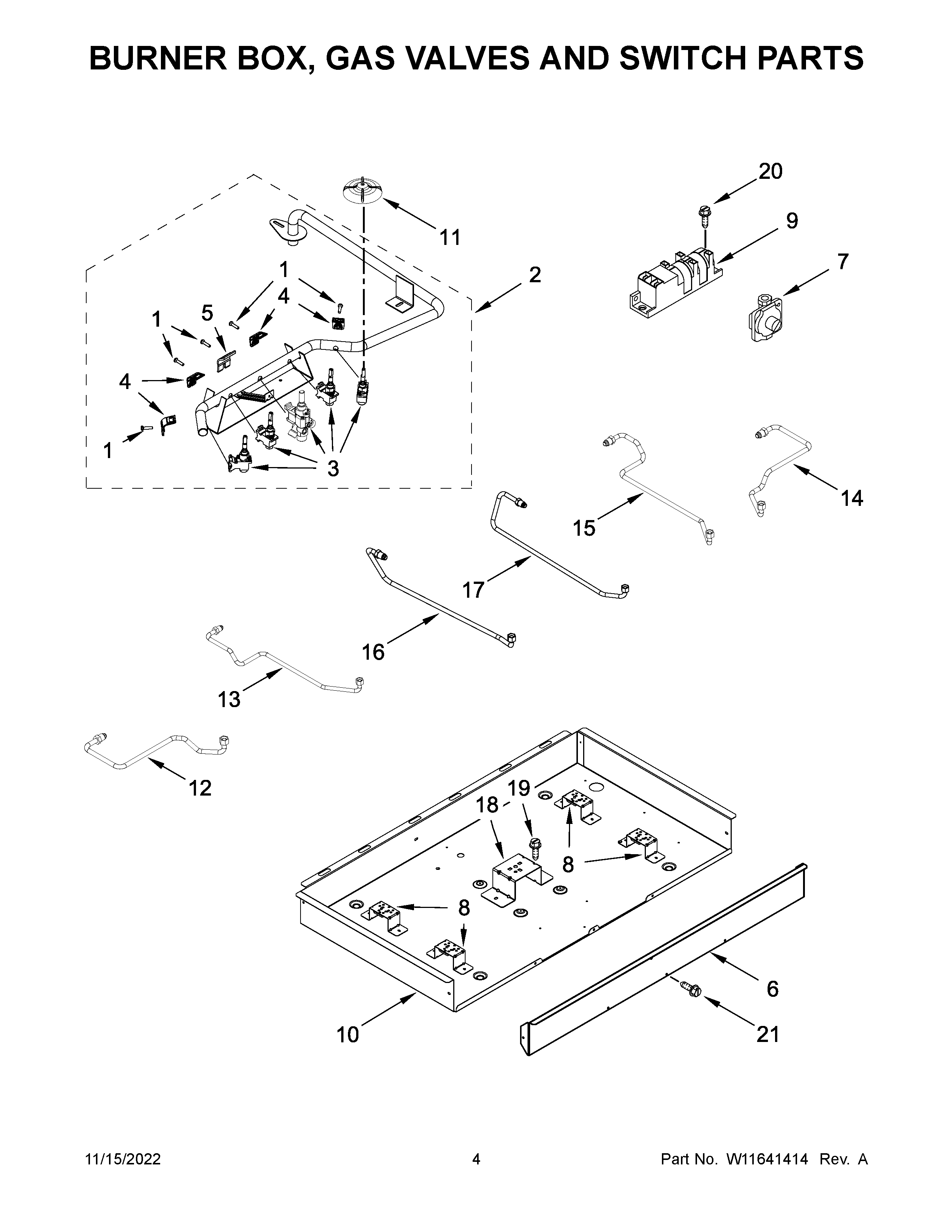

WCG97US6HS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
1	8287057 Whirlpool Oven Screw
2	W11676622 Whirlpool Manifold
3D	W11246817 Whirlpool Burner Valve
3B	W10859922 Whirlpool Gas Valve
3A	W11256503 Whirlpool Gas Valve Assembly
3C	W11712403 Whirlpool Gas Valve
3	W11677628 Whirlpool Microwave Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	W10718141 Whirlpool Manifold Panel
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W11507167 Whirlpool Switch Seal
12	W10566305 Whirlpool Gas Tubing
13	W10566306 Whirlpool Gas Tubing Assembly
14	W10566308 Whirlpool Gas Tubing
15	W10566307 Whirlpool Gas Tubing
16	W10566296 Whirlpool Gas Tubing
17	W10566297 Whirlpool Gas Tubing
18	W10594430 Whirlpool Mounting Bracket
19	W11676349 Whirlpool Screw
20	SCREW
21	WP3196557 Whirlpool Screw
