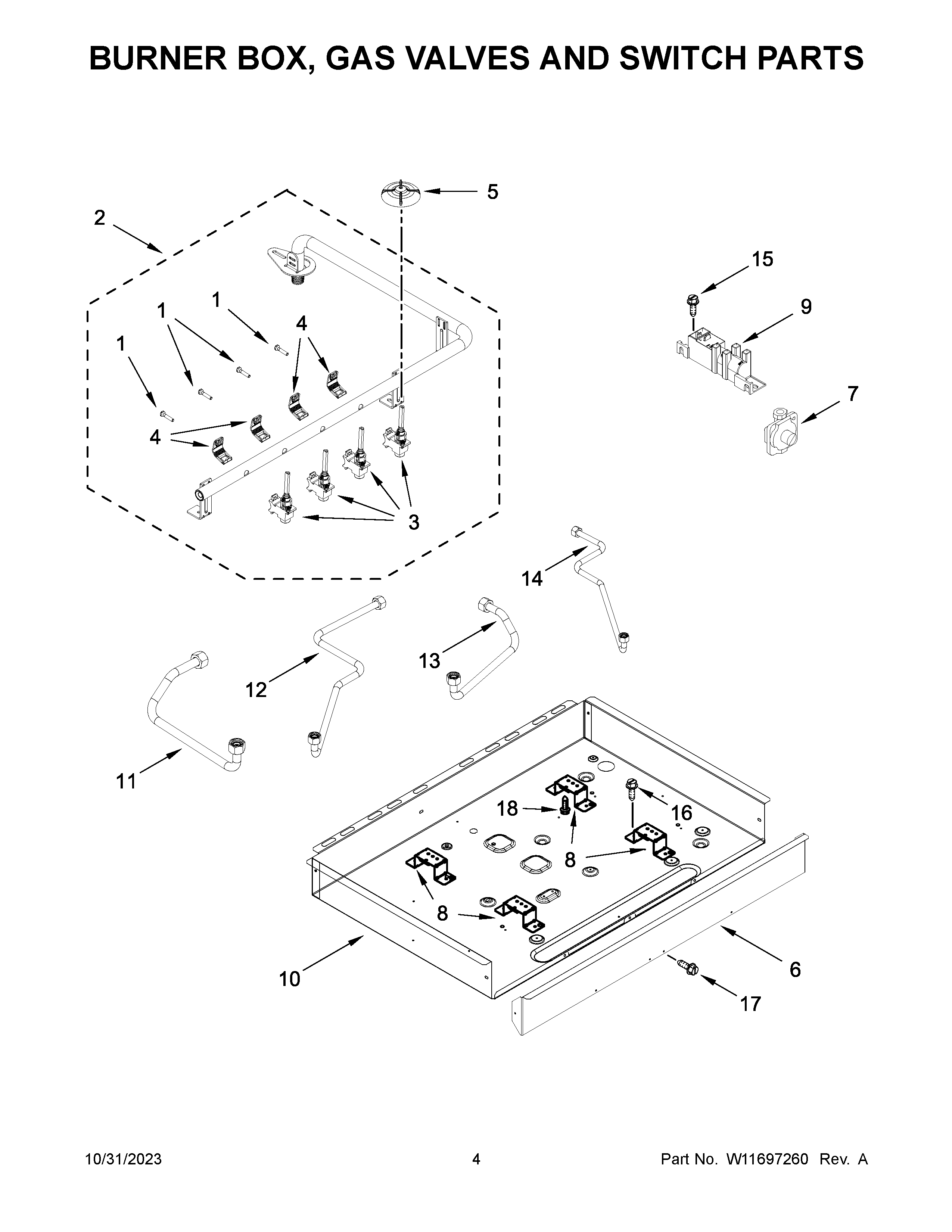

WCGK3030PS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
1	8287057 Whirlpool Oven Screw
2	MANIFOLD ASSEMBLY
3B	VALVE-GAS
3A	VALVE-GAS
3	VALVE-GAS
4	8287055 Whirlpool Oven Mounting Bracket
5	W11507167 Whirlpool Switch Seal
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	BRACKET, ORIFICE HOLDER
9	MODULE-SPK
10	BOX, BURNER (NOT SERVICED)
11	TUBE, GAS (LEFT FRONT)
12	TUBE, GAS (LEFT REAR)
13	TUBE, GAS (RIGHT FRONT)
14	TUBE, GAS (RIGHT REAR)
15	SCREW
16	W10443110 Whirlpool Screw
17	WP3196557 Whirlpool Screw
18	W11676349 Whirlpool Screw
