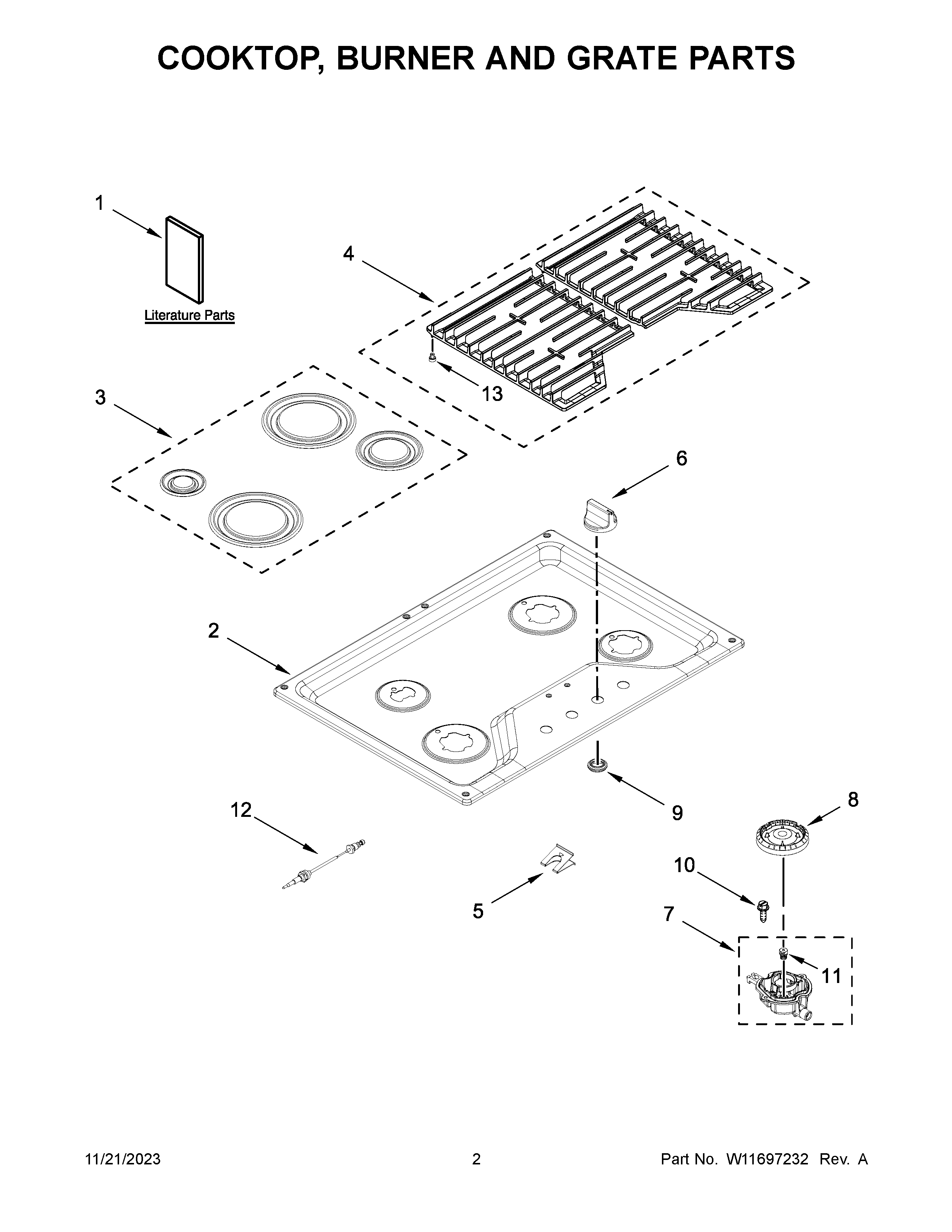

WCGK3030PW00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	SPUD-ORFCE
NI	HARNESS (SWITCH), MAIN
NI	W11637584 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	SCREW
NI	BRACKET, MOUNTING
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2A	COOKTOP (WHITE)
2	COOKTOP (BLACK)
3	W11455147 Whirlpool Surface Burner Cap
4	GRATE KIT (BLACK (SET OF 2))
5	W11684564 Whirlpool Clip Assembly
6	KNOBS, COOKTOP (BLACK)
6A	KNOBS, COOKTOP (WHITE)
7	HOLDER, ORIFICE (12K) (LEFT FRONT)
7B	HOLDER, ORIFICE (9.1K) (RIGHT FRONT)
7A	HOLDER, ORIFICE (5K) (RIGHT REAR)
7C	HOLDER, ORIFICE (18K) (CENTER)
8A	W11531098 Whirlpool Burner Head
8	W11531096 Whirlpool Burner Head
9	W11531097 Whirlpool Burner – Head
10	W11206740 Whirlpool Grommet
11A	ORIFICE (LEFT FRONT)
11	W11699921 Whirlpool Screw
11C	ORIFICE (LEFT FRONT AND LEFT REAR)
11B	ORIFICE (RIGHT REAR)
11D	ORIFICE (CENTER)
12	W11702865 Whirlpool Surface Igniter
13	FOOT PAD, GRATE (OUTER)
