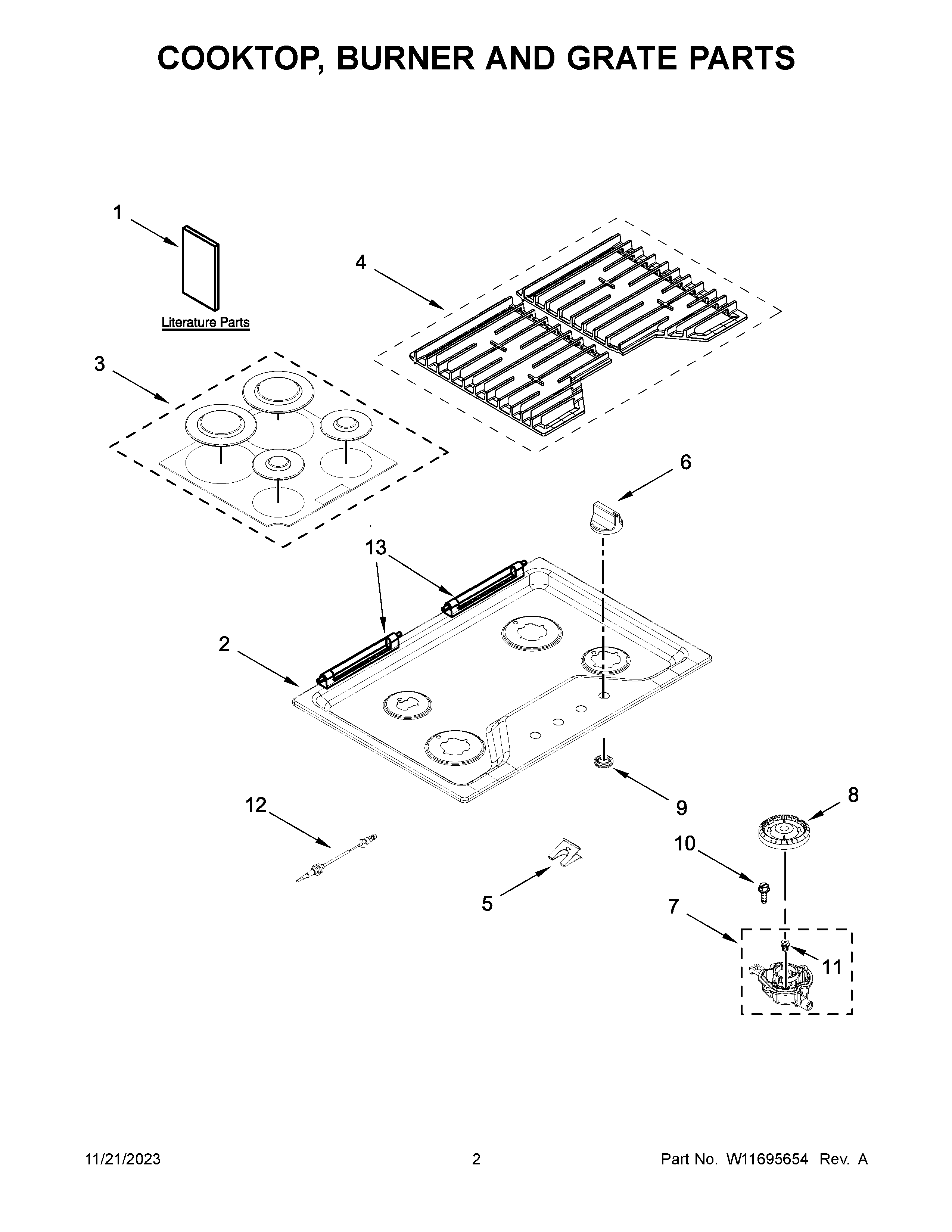

WCGK5030PB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	SPUD-ORFCE
NI	W11637584 Whirlpool Wire Harness
NI	HARNESS (SWITCH), MAIN
NI	16515 Whirlpool Clip
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
NI	FOLLOWING PARTS NOT ILLUSTRATED
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	COOKTOP (BLACK)
3	W11605759 Whirlpool Burner Cap
4	GRATE-KIT
5	W11684564 Whirlpool Clip Assembly
6	KNOBS, COOKTOP (BLACK)
7A	HOLDER, ORIFICE (5K) (RIGHT REAR)
7C	HOLDER, ORIFICE (18K) (CENTER)
7B	HOLDER, ORIFICE (9.1K) (RIGHT FRONT)
7	HOLDER, ORIFICE (12K) (LEFT FRONT)
8	W11531096 Whirlpool Burner Head
8A	W11531098 Whirlpool Burner Head
8B	W11531097 Whirlpool Burner – Head
9	W11206740 Whirlpool Grommet
10	W11699921 Whirlpool Screw
11B	ORIFICE (LEFT FRONT AND LEFT REAR)
11C	ORIFICE (CENTER)
11	ORIFICE (LEFT FRONT)
11A	ORIFICE (RIGHT REAR)
12	W11702865 Whirlpool Surface Igniter
13	HINGE, GRATE (NOT SERVICED)
