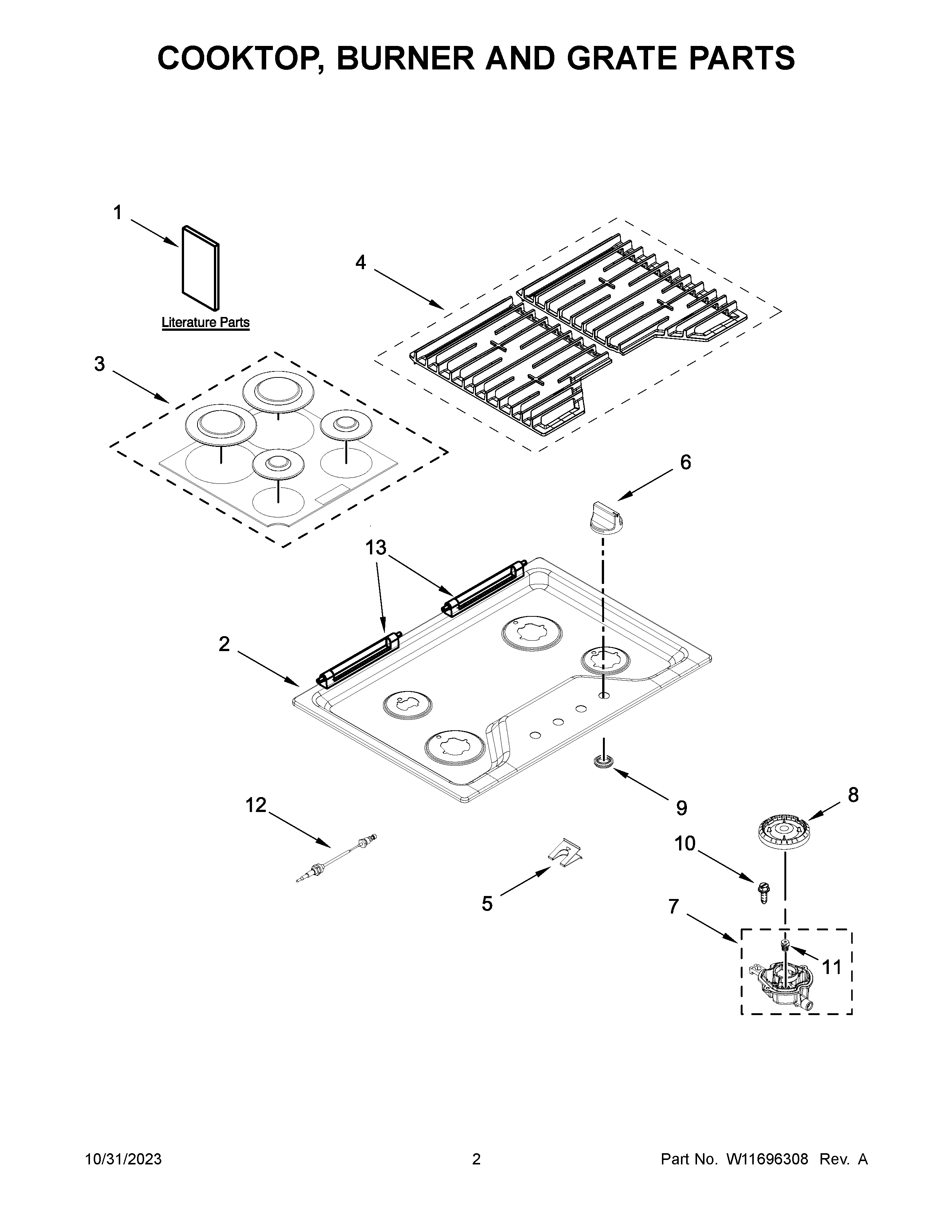

WCGK5030PS00 02 – COOKTOP, BURNER AND GRATE PARTS

WCGK5030PS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

WCGK5030PS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWP3400015 Whirlpool Screw
NIHARNESS (SWITCH), MAIN
NIW11637584 Whirlpool Wire Harness
NISPUD-ORFCE
NI16515 Whirlpool Clip
NISCREW
NIBRACKET, MOUNTING
NIW10392003 Whirlpool Power Cord
NIW10132200 Whirlpool Strain Relief
NIFOLLOWING PARTS NOT ILLUSTRATED
1OWNER'S MANUAL
1AQUICK START GUIDE
2W11719733 Whirlpool Cooktop
3W11605759 Whirlpool Burner Cap
4GRATE-KIT
5W11684564 Whirlpool Clip Assembly
6KNOB
7AHOLDER, ORIFICE (5K) (RIGHT REAR)
7BHOLDER, ORIFICE (9.1K) (RIGHT FRONT)
7HOLDER, ORIFICE (12K) (LEFT FRONT)
7CHOLDER, ORIFICE (18K) (CENTER)
8W11531096 Whirlpool Burner Head
8BW11531097 Whirlpool Burner – Head
8AW11531098 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10W11699921 Whirlpool Screw
11AORIFICE (RIGHT REAR)
11ORIFICE (LEFT FRONT)
11CORIFICE (CENTER)
11BORIFICE (LEFT FRONT AND LEFT REAR)
12W11702865 Whirlpool Surface Igniter
13W10826075 Whirlpool Cooktop Hinge
