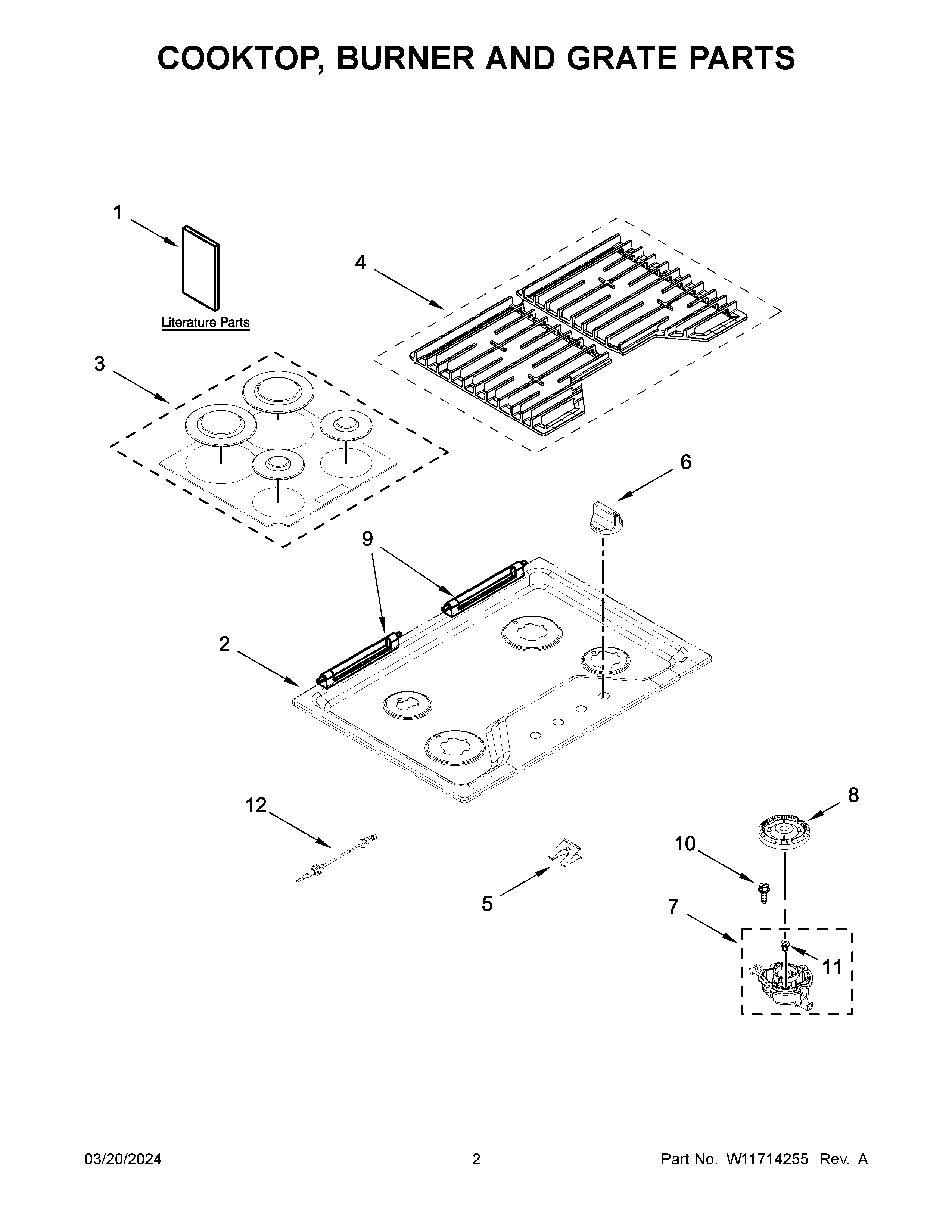

WCGK5030PV00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	HARNESS (SWITCH), MAIN
NI	W11637584 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	SCREW
NI	BRACKET, MOUNTING
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	SPUD-ORFCE
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	COOKTOP (BLACK STAINLESS)
3	W11605759 Whirlpool Burner Cap
4	GRATE-KIT
5	W11684564 Whirlpool Clip Assembly
6	KNOB
7A	HOLDER, ORIFICE (5K) (RIGHT REAR)
7B	HOLDER, ORIFICE (9.1K) (RIGHT FRONT)
7C	HOLDER, ORIFICE (18K) (CENTER)
7	HOLDER, ORIFICE (12K) (LEFT FRONT)
8	W11531096 Whirlpool Burner Head
8B	W11531097 Whirlpool Burner – Head
8A	W11531098 Whirlpool Burner Head
9	HINGE, GRATE (NOT SERVICED)
10	W11699921 Whirlpool Screw
11	ORIFICE (LEFT FRONT)
11A	ORIFICE (RIGHT REAR)
11C	ORIFICE (CENTER)
11B	ORIFICE (LEFT FRONT AND LEFT REAR)
12	W11702865 Whirlpool Surface Igniter
