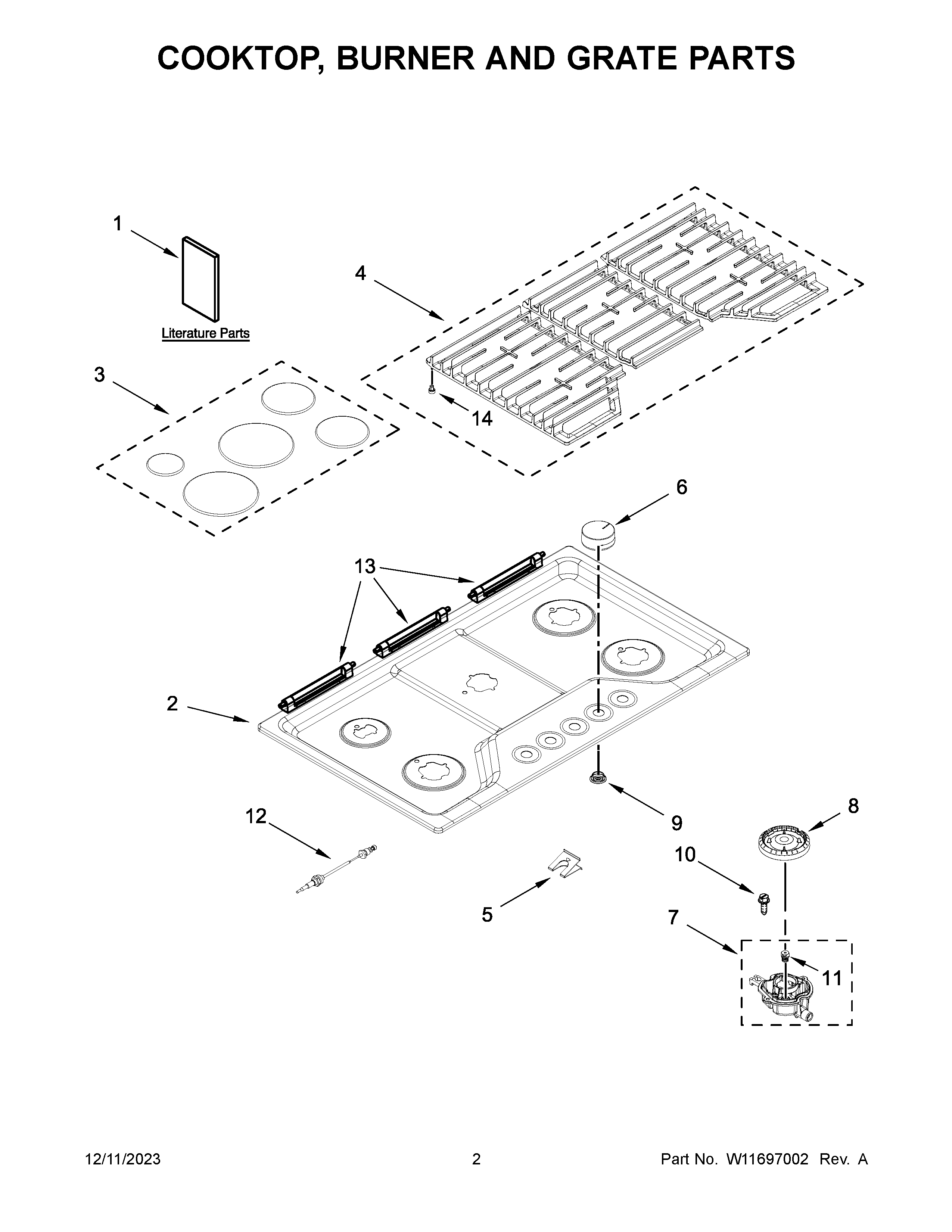

WCGK7030PS00 02 – COOKTOP, BURNER AND GRATE PARTS

WCGK7030PS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

WCGK7030PS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWP3400015 Whirlpool Screw
NISPUD-ORFCE
NIHARNESS (SWITCH), MAIN
NIW11637584 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NISCREW
NIBRACKET, MOUNTING
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW10392003 Whirlpool Power Cord
NIW10132200 Whirlpool Strain Relief
1OWNER'S MANUAL
1AQUICK START GUIDE
2COOKTOP
3W11703346 Whirlpool Burner Cap
4GRATE KIT (BLACK (SET OF 3))
5W11684564 Whirlpool Clip Assembly
6KNOBS, COOKTOP (STAINLESS)
7AHOLDER, ORIFICE (5K) (RIGHT REAR)
7BHOLDER, ORIFICE (18K) (CENTER)
7CHOLDER, ORIFICE (9.1K) (RIGHT FRONT)
7HOLDER, ORIFICE (12K) (LEFT FRONT)
8AW11531098 Whirlpool Burner Head
8W11531097 Whirlpool Burner – Head
8BW11531096 Whirlpool Burner Head
9GROMMET (STAINLESS)
10W11699921 Whirlpool Screw
11AORIFICE (RIGHT REAR)
11BORIFICE (CENTER)
11ORIFICE (LEFT FRONT)
11CORIFICE (LEFT FRONT AND LEFT REAR)
12AWIRING, ELECTRODE (636MM)
12W11702865 Whirlpool Surface Igniter
13W10826075 Whirlpool Cooktop Hinge
14FOOT PAD, GRATE (OUTER)
