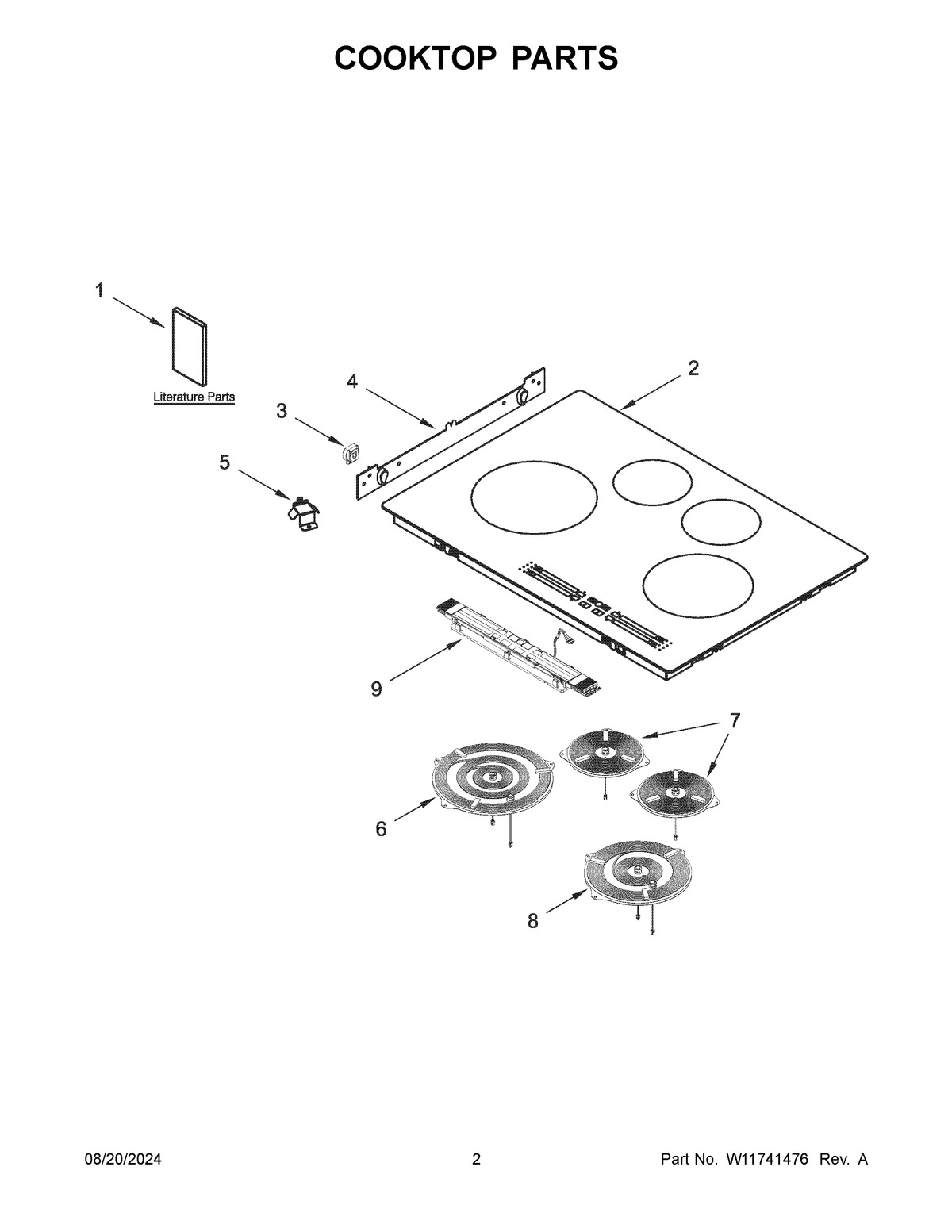

WCI55US0JB02 02 – COOKTOP PARTS

Written by

Products

Position	Product
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1C	TECH SHEET
1B	OWNER'S MANUAL
1	INSTALLATION INSTRUCTIONS
2	COOKTOP, GLASS
3	W11495019 Whirlpool Spring
4	BRKT-SUPRT
5	FILTER SUPPORT
6	ELEMENT (6.25 INCH) (LEFT FRONT)
7	ELEMENT (6 INCH) (LEFT REAR AND RIGHT FRONT)
8	W11586461 Whirlpool Hotplate
9	HMI BOARD
