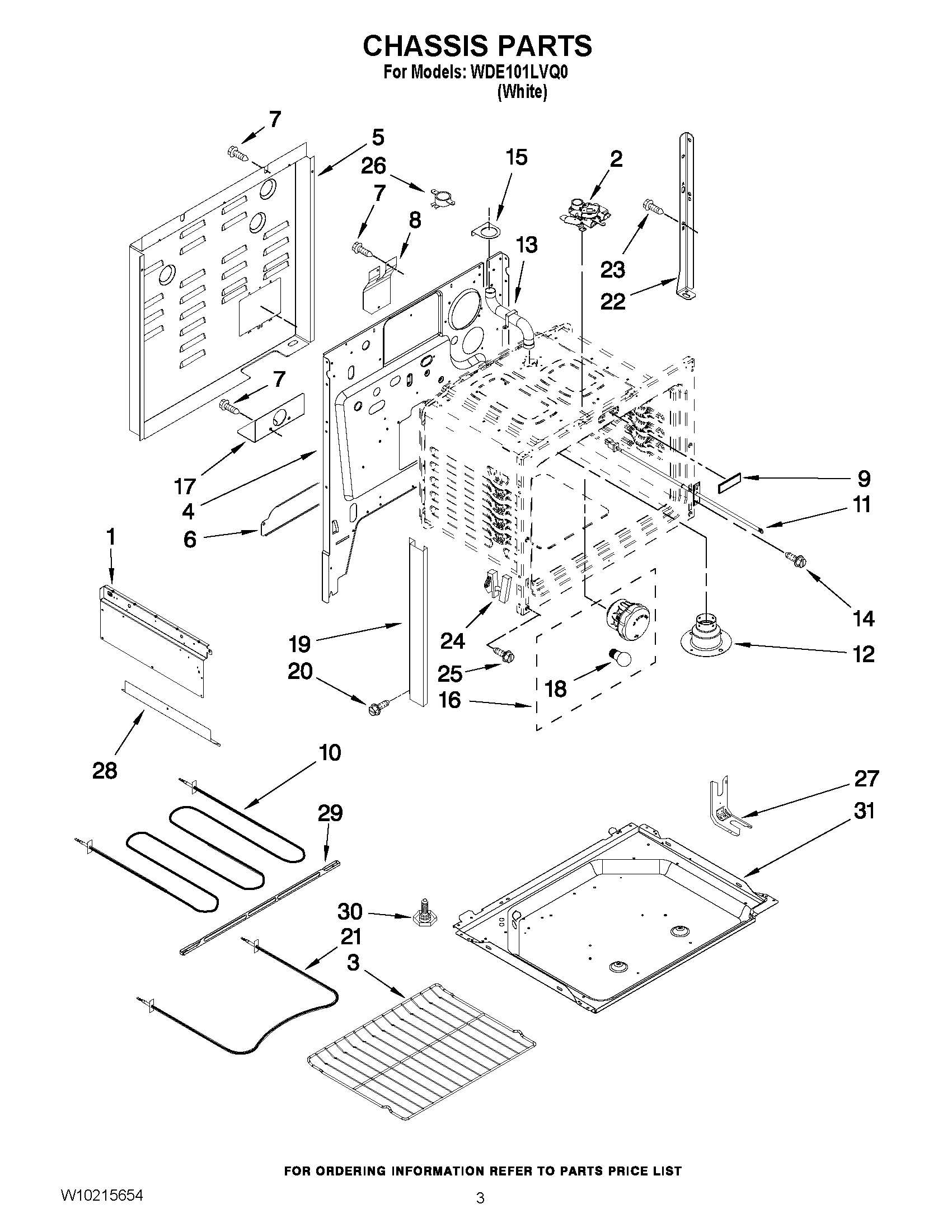

WDE101LVQ0 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
NI	Insulation, Oven Bottom
1	2618F206-51 Whirlpool Panel
1	Panel, Shield (Left)
2	74010819 Whirlpool Latch Assembly
3	WPW10282492 Whirlpool Oven Rack
4	Main Back
5	4005F810-51 Whirlpool Access Cover
6	Extension, Back
7	WP90767 Whirlpool Screw
8	Insulator, Cord
9	Plug, Lock
10	WPW10310249 Whirlpool Broil Element
11	12001656 Whirlpool Range Oven Temperature Sensor
12	Tube, Vent Lower
13	Tube, Vent Upper
15	Holder, Vent Tube
16	WP7407P182-60 Whirlpool Lamp
17	W10190166 Whirlpool Service Bracket
18	BULB, LIGHT
19	Trim, Side (Left White)
19	Trim, Side (Right White)
21	WPW10310274 Whirlpool Bake Element
22	Support, Oven Rear
23	WP7101P434-60 Whirlpool Screw
24	WP74011140 Whirlpool Oven Hinge
25	WP4159193 Whirlpool Screw
26	WP7450P034-60 Whirlpool Limit Switch
27	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
28	Extention, Shield
29	Support, Element
30	W11665456 Whirlpool Range Level Foot
31	4003F067-51 Whirlpool Main Base
