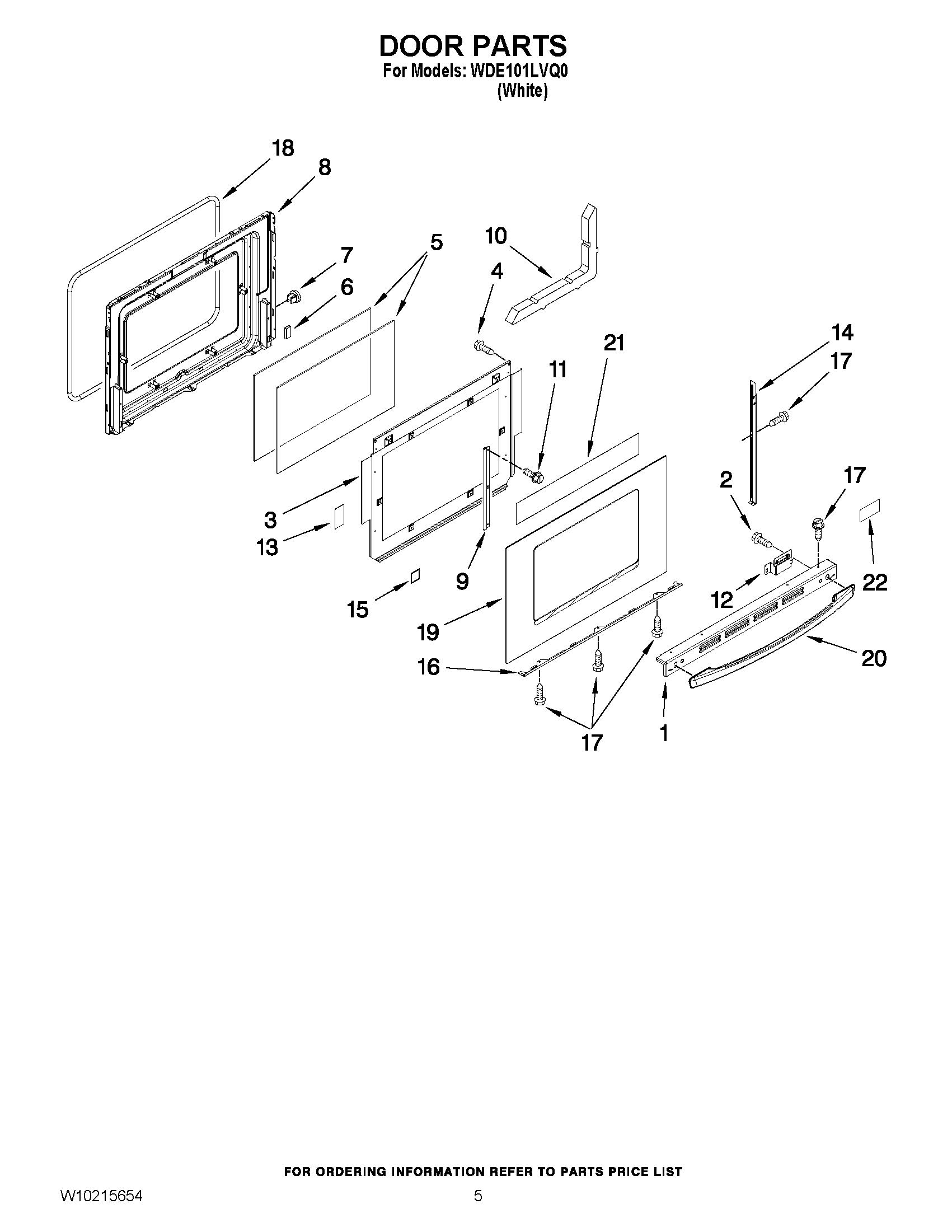

WDE101LVQ0 04 – DOOR PARTS

Products

Position	Product
1	WP3608F141-71 Whirlpool Door Trim
2	SCREW, HANDLE
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Lining, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	3801F831-45 Whirlpool Bracket Assembly
12	3801F832-45 Whirlpool Bracket
13	Tape, White
14	WP3608F116-71 Whirlpool Door Trim
14	WP3608F117-71 Whirlpool Door Trim
15	WPL 74010267
16	WP3807F708-71 Whirlpool Support
17	WP98008544 Whirlpool Screw Assembly
18	SEAL, OVEN DOOR
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass)
20	WPW10118430 Whirlpool Door Handle
21	WPL 74003664
22	BADGE
