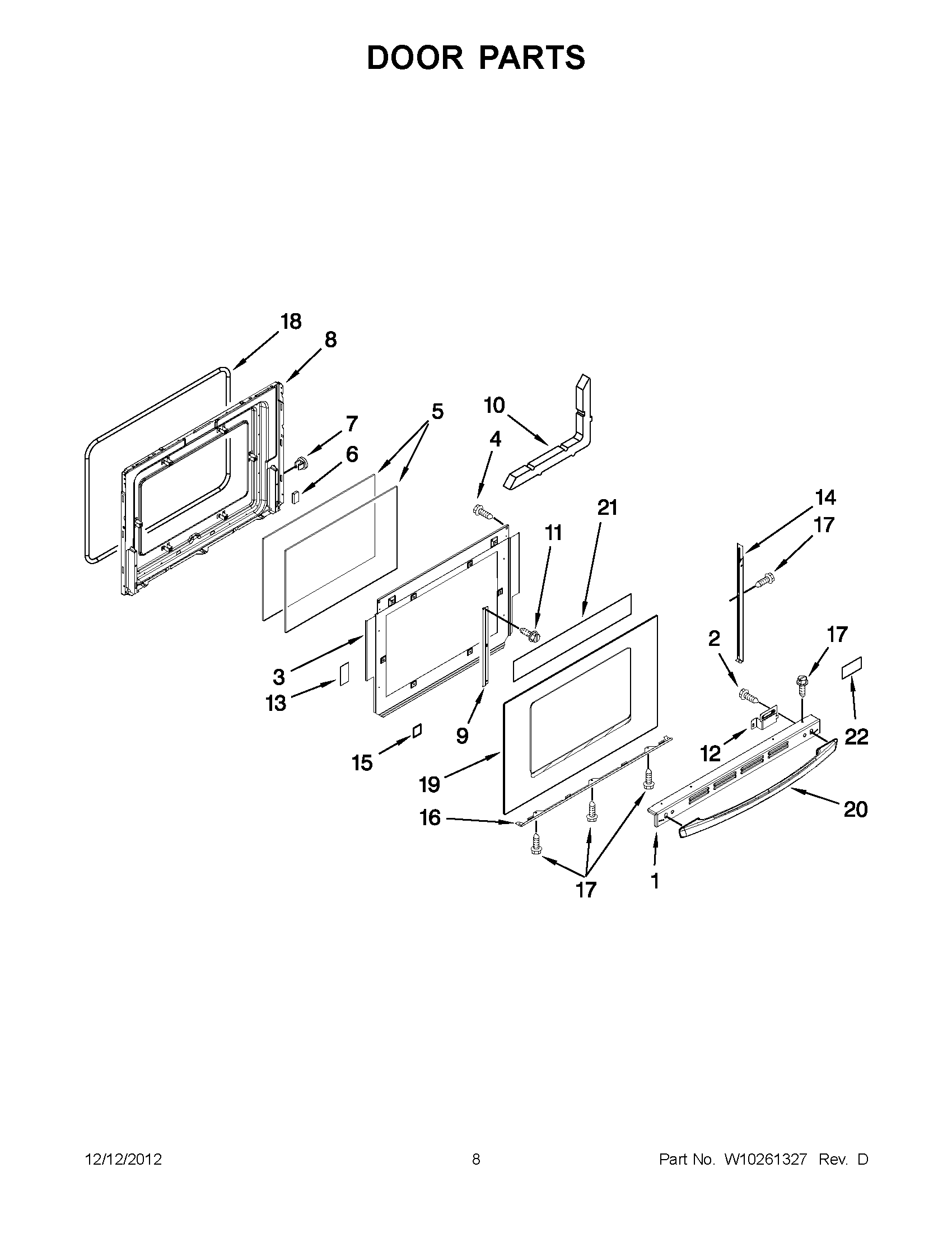

WDE101LVQ01 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2SCREW, HANDLE
3Baffel, Retainer
4Screw
5GLASS, INNER
6Spacer, Rubber
7NUT, SNAP
8Lining, Door
9Bracket, Glass
10Insulation, Door
11SCREW
12Bracket, Handle (Left)
12Bracket, Handle (Right)
13Tape, White
14TRIM, DOOR SIDE (BLACK, RIGHT)
14TRIM, DOOR SIDE (BLACK, LEFT)
15Spacer, Rubber
16Trim, Door Bottom
17SCREW (WHITE)
18SEAL, OVEN DOOR
19PANEL, OUTER DOOR
20WPW10118430 Whirlpool Door Handle
21Tape, Foil
22BADGE
