WDE150LVB0 01 – COOKTOP PARTS

WDE150LVB0 01 – COOKTOP PARTS

Written by

in

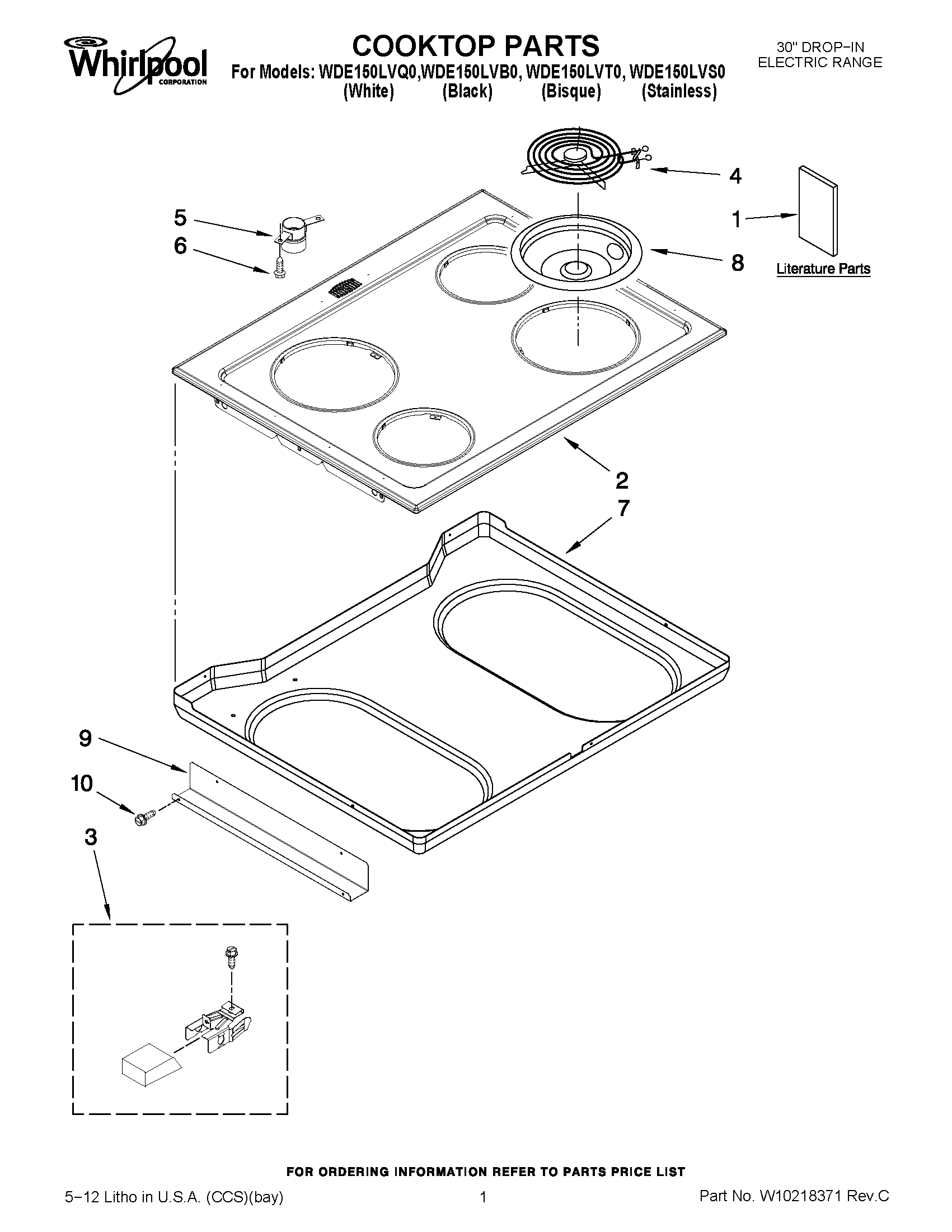

WDE150LVB0 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Installation Instructions
2Cooktop (Bisque)
2Cooktop (White)
2Cooktop (Black)
312001676 Whirlpool Range Surface Burner Receptacle Kit
4WPW10345407 Whirlpool Surface Element
4WP9761346 Whirlpool Stove Surface Burner Element
5Tube, Vent Upper
7Bottom, Burner Box
8WPW10196406 Whirlpool 6" Chrome Drip Bowl
8DRIP BOWL 8" W/HOLE CHROME
93801F881-51 Whirlpool Bracket
10WP90767 Whirlpool Screw
