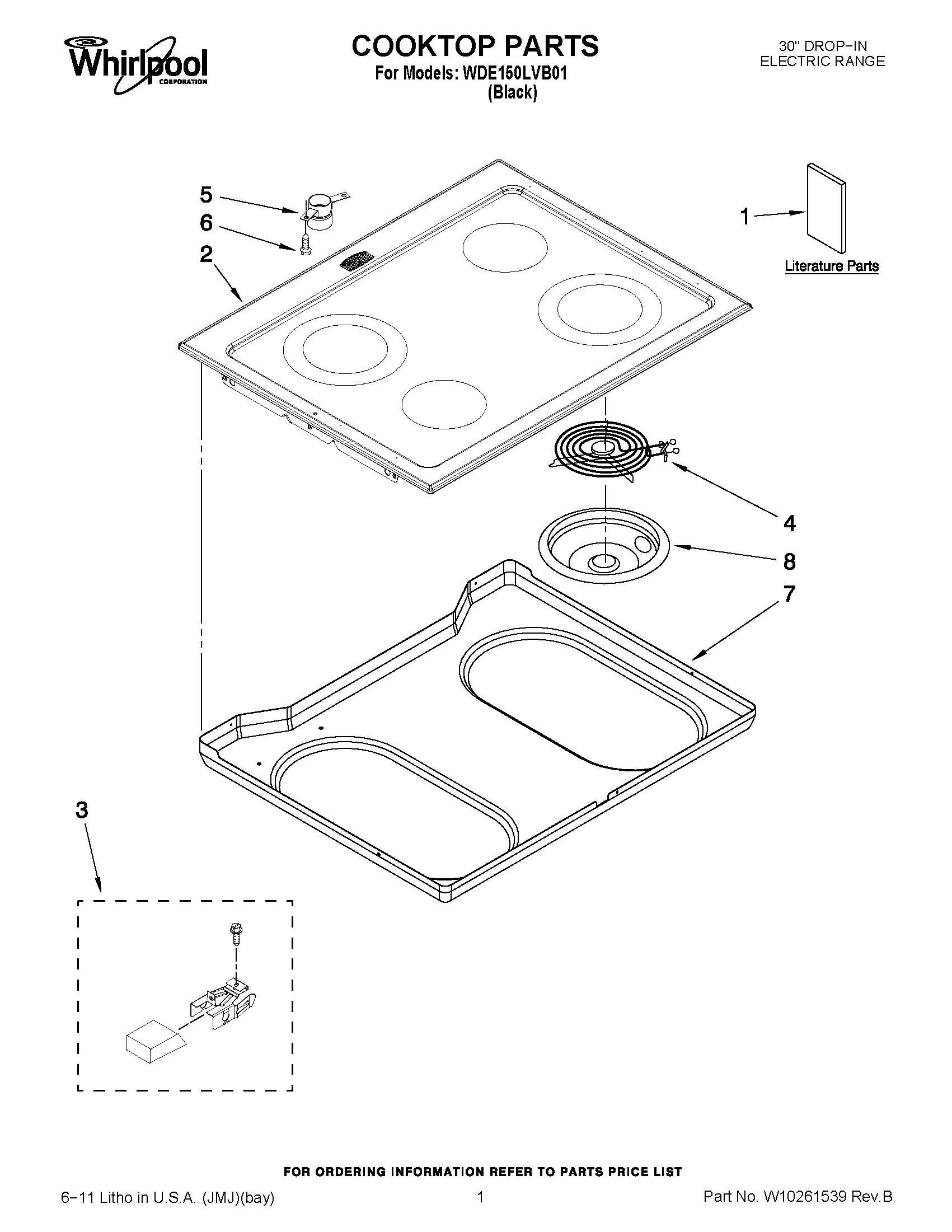

WDE150LVB01 01 – COOKTOP PARTS

WDE150LVB01 01 – COOKTOP PARTS

Written by

in

WDE150LVB01 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Use & Care Guide
2	2002M200-09 Whirlpool Cooktop
3	KIT, RECEPTACLE
4	Element (RF/LR, 2100W) (2)
4	Element (LF/RR, 1250W) (2)
5	Tube, Vent Upper
6	SCREW
7	Bottom, Burner Box
8	Bowl, Drip (Chr 6“)
8	Bowl, Drip (Chr 8“)
