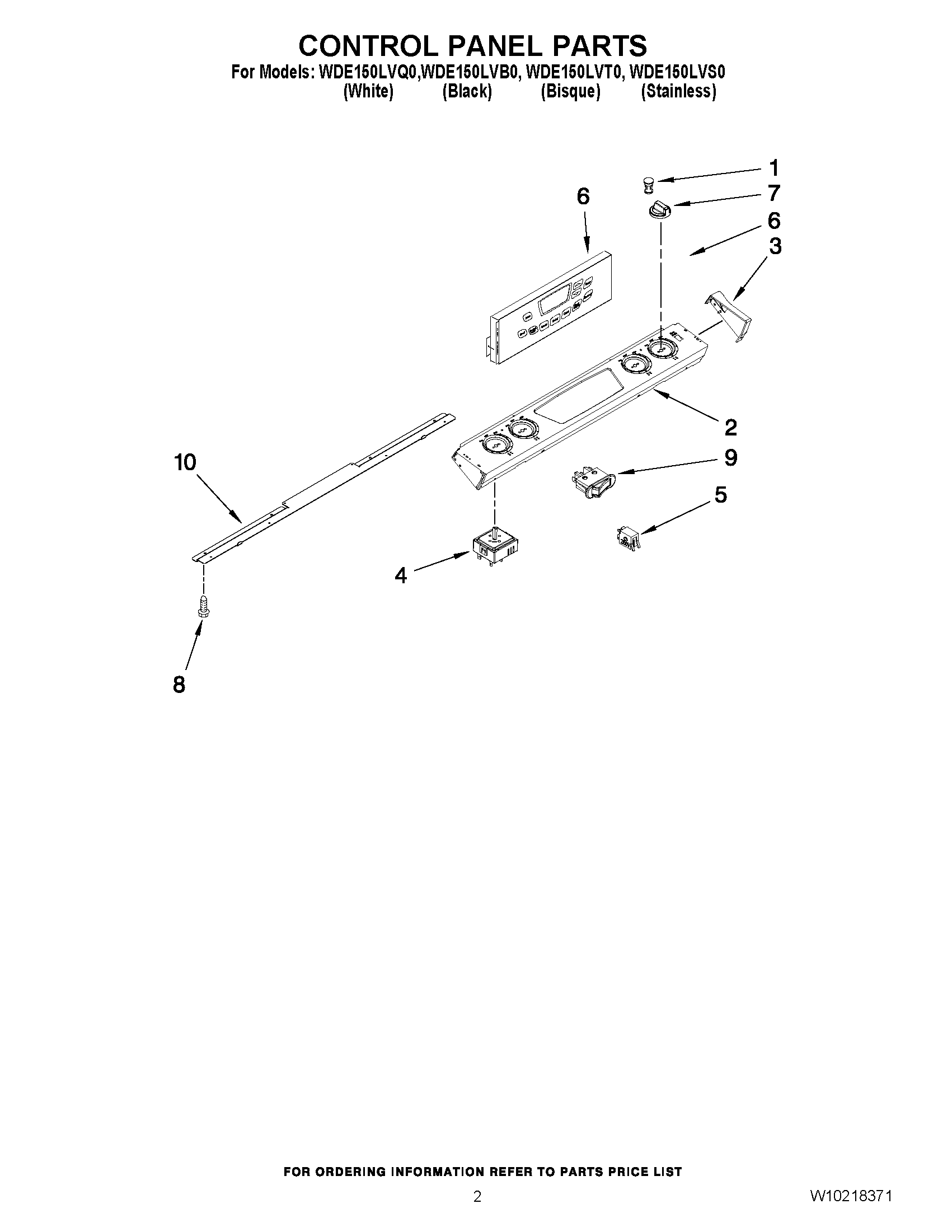

WDE150LVQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lens
2Panel, Control (White)
2Panel, Control (Bisque)
2Panel, Control (Black)
2Panel, Control (Stainless)
3End Cap (Left White)
3End Cap (Right White)
3Endcap L. Hand (Bisque)
3Endcap R. Hand (Bisque)
3End Cap (Left)
3End Cap (Right)
4Switch, Infinite 8“ (RF/LR)(2)
4Switch, Infinite 6“ (LF, RR)
5WP74004153 Whirlpool Indicator Light
6CONTROL W/OVERLAY (BLACK)
6CONTROL W/OVERLAY (BISQUE)
6CONTROL W/OVERLAY (WHITE)
7KNOB (BLACK)
7KNOB (LF,RR) (BISCUIT)
7KNOB (WHITE)
8WP90767 Whirlpool Screw
974008717 Whirlpool White Rocker Switch
10Support, Control Panel
