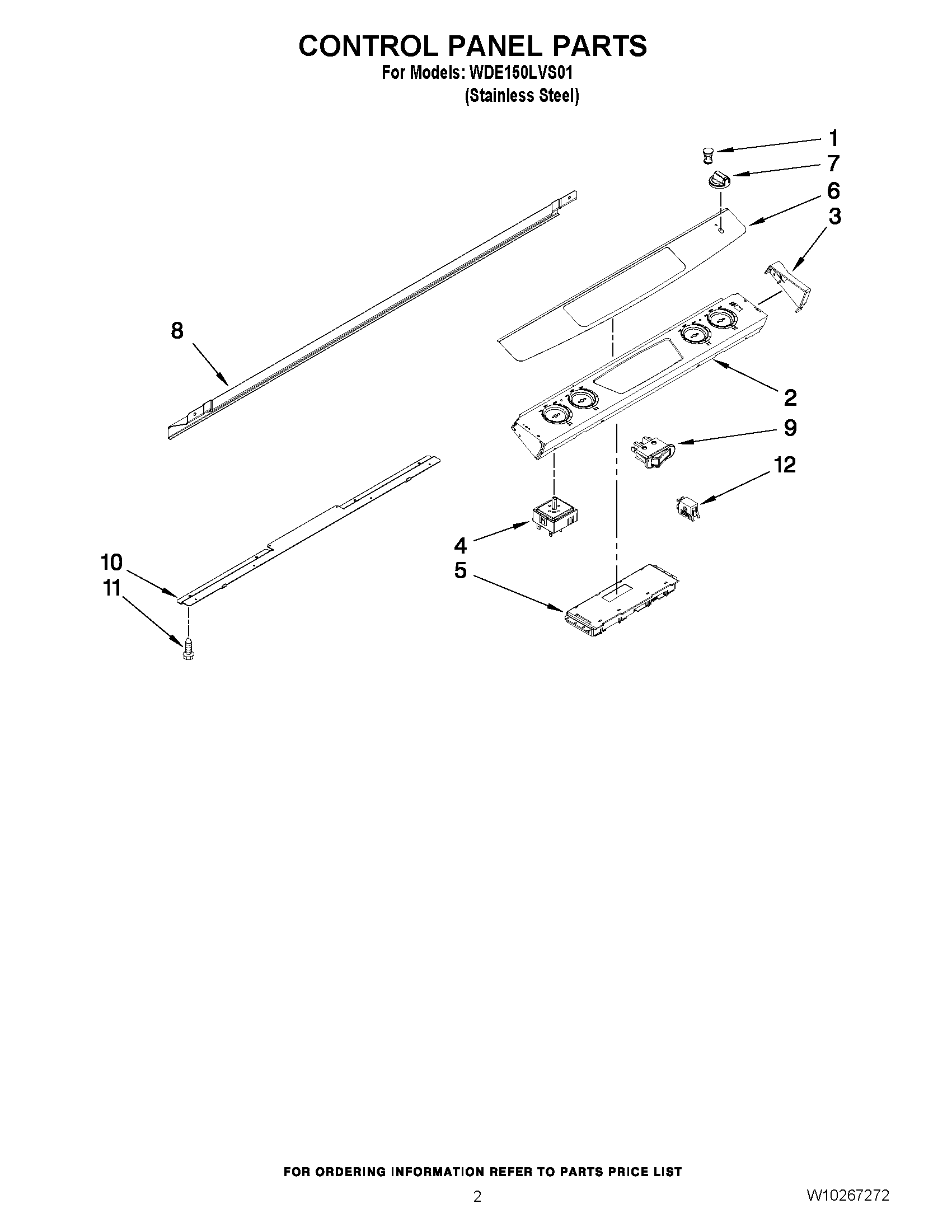

WDE150LVS01 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Lens
2	Panel, Control (Stainless)
3	END CAP (LEFT)
3	END CAP (RIGHT)
4	SWITCH, INFINITE (RIGHT FRONT)
4	SWITCH, INFINITE (RIGHT REAR)
5	Control
6	WPW10178993 Whirlpool Membrane Switch
7	KNOB (BLACK)
8	Shield, Vent (Black)
9	Switch, Rocker
10	Support, Control Panel
11	SCREW
12	Light, Indicator
