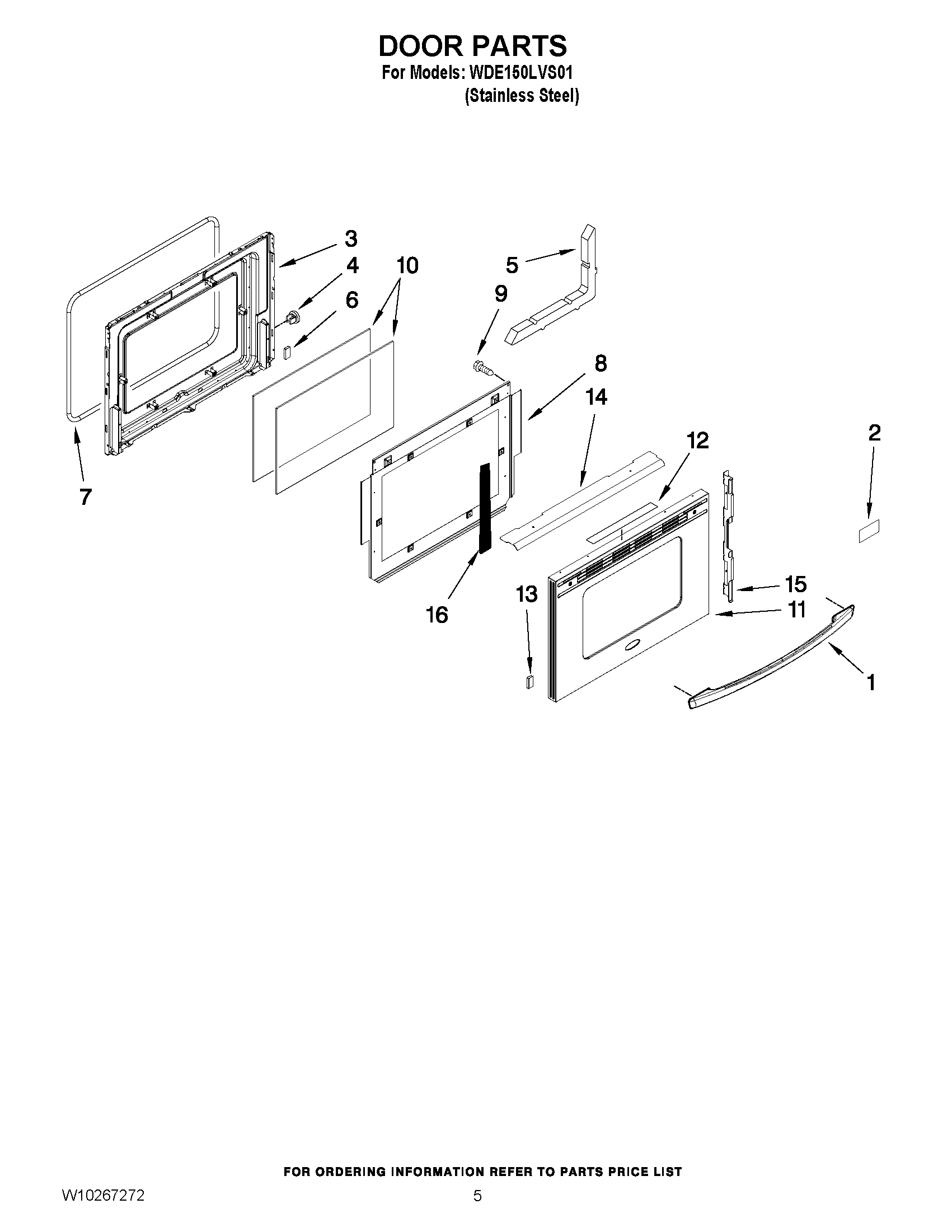

WDE150LVS01 04 – DOOR PARTS

Products

PositionProduct
1WPW10144883 Whirlpool Door Handle
2Medallion
3Lining, Door
4NUT, SNAP
5Insulation, Door
6Spacer, Rubber
7GASKET
8Baffle, Retainer
9Screw
10GLASS, INNER
10GLASS, DOOR (S.STEEL MDL ONLY)
11PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
12Bracket, Handle (Left)
12Insulation, Foil
12Bracket, Handle (Right)
13Clip, Glass (2)
14Trim, Door Side (Left)
14Trim, Door Side (Right)
14Shield, Door
15Retainer, Glass
16Bracket, Glass
