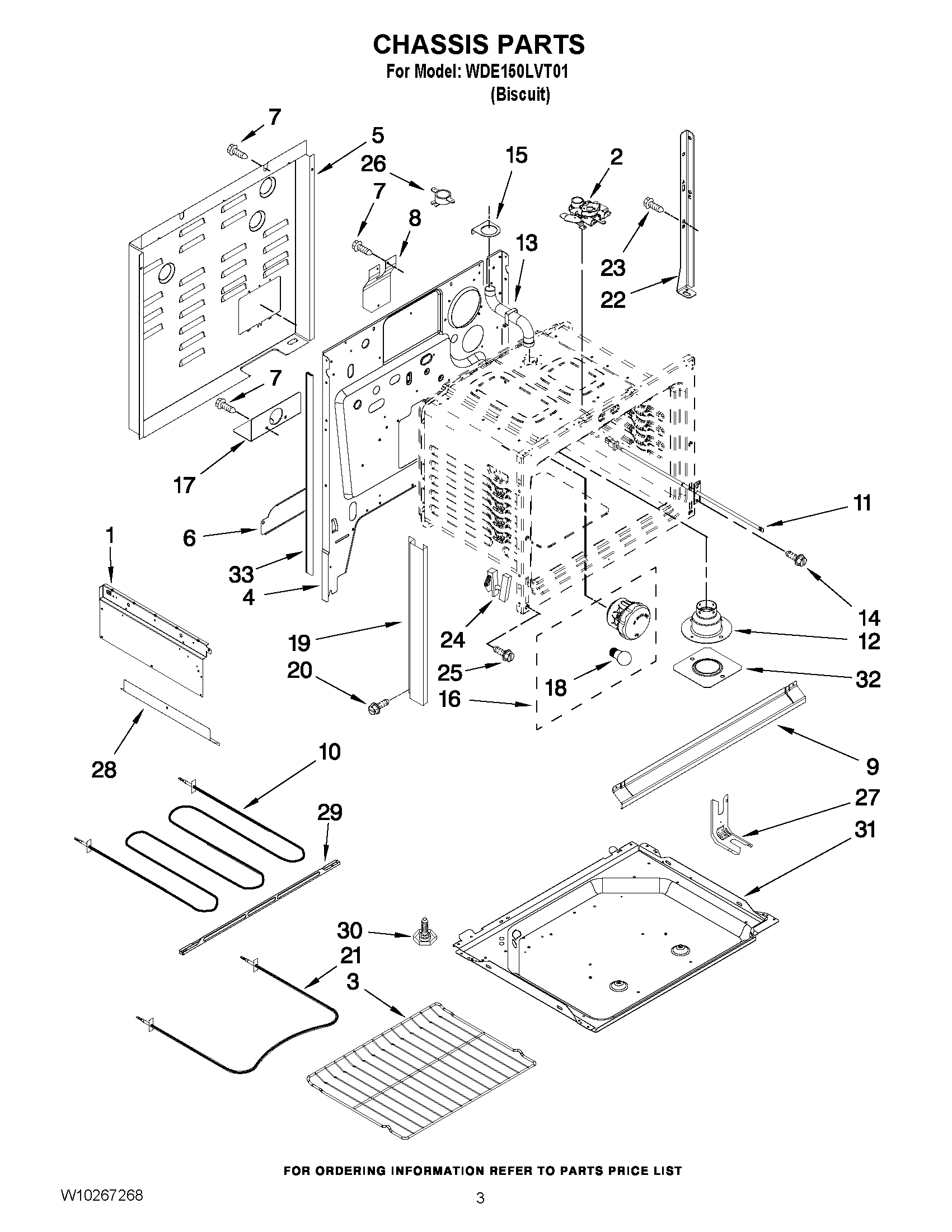

WDE150LVT01 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Wrap
NI	Insulation, Oven Bottom
1	Panel, Shield (Right)
1	Panel, Shield (Left)
2	Latch Assembly
3	Rack, Oven (2)
4	Main Back
5	Cover, Main Wire
6	Extension, Back
8	Insulator, Cord
9	SHIELD, VENT (BISQUE)
10	Element, Broil
11	Sensor, Oven
12	Tube, Vent Lower
13	Tube, Vent Upper
15	Holder, Vent Tube
16	Light Assembly
17	W10190166 Whirlpool Service Bracket
18	BULB, LIGHT
19	TRIM, SIDE (R.SIDE)
19	TRIM, SIDE (L.SIDE)
21	Element, Bake
22	SUPPORT, OVEN (REAR)
23	SCREW
24	HINGE
25	SCREW
26	LIMIT, OVEN
27	BRACKET, ANTI TIP
28	Extention, Shield
29	Support, Element
30	FOOT, LEVELER
31	Retainer, Bottom
32	PLATE, SMOKE ELM.
33	GUARD, EDGE
