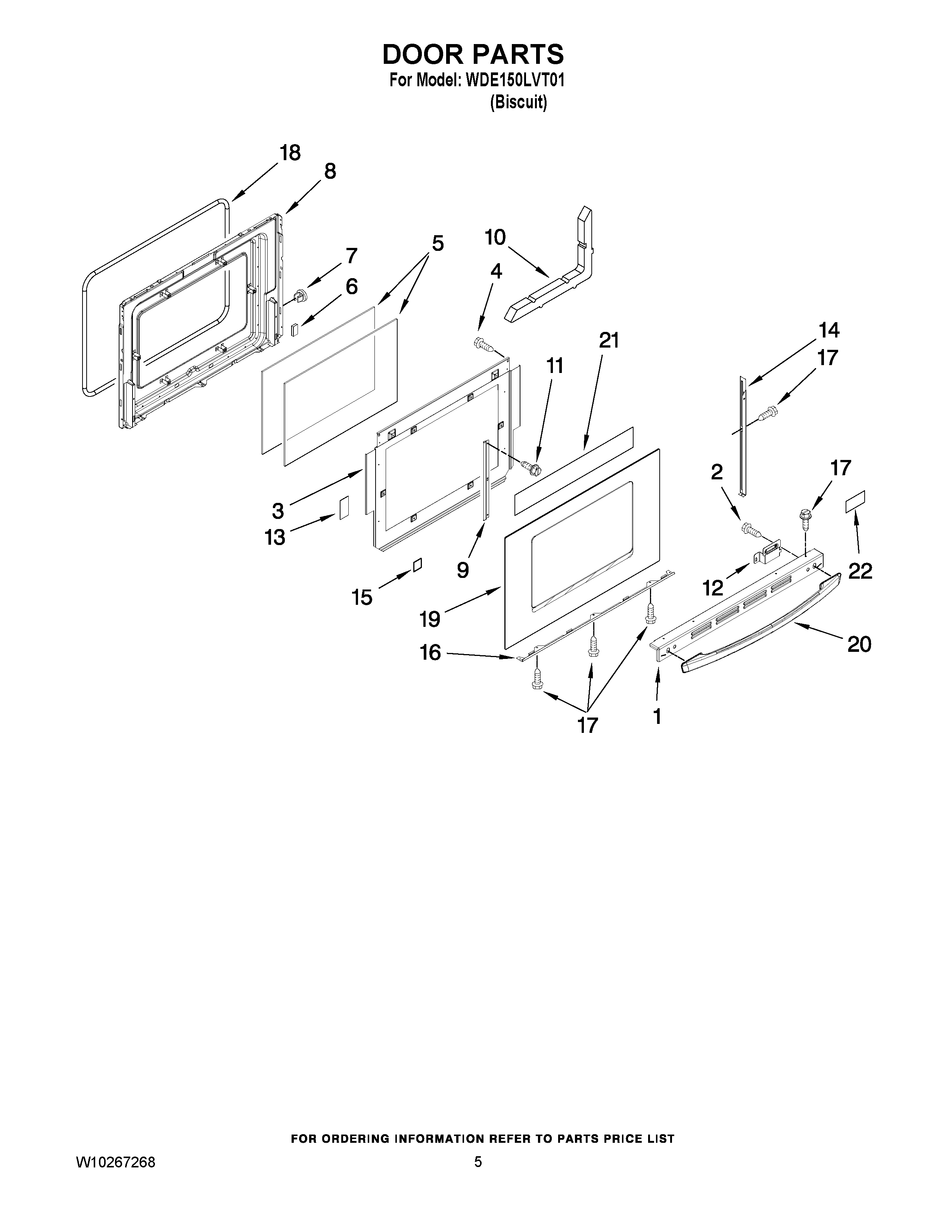

WDE150LVT01C 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	SCREW, HANDLE
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Tape, White
14	Trim, Door Side (Biscuit, Right)
14	Trim, Door Side (Biscuit, Left)
15	Spacer, Rubber
16	Trim, Door Bottom (Biscuit)
17	SCREW (BLACK)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
20	WPL W10118432
21	Tape, Foil
22	BADGE
