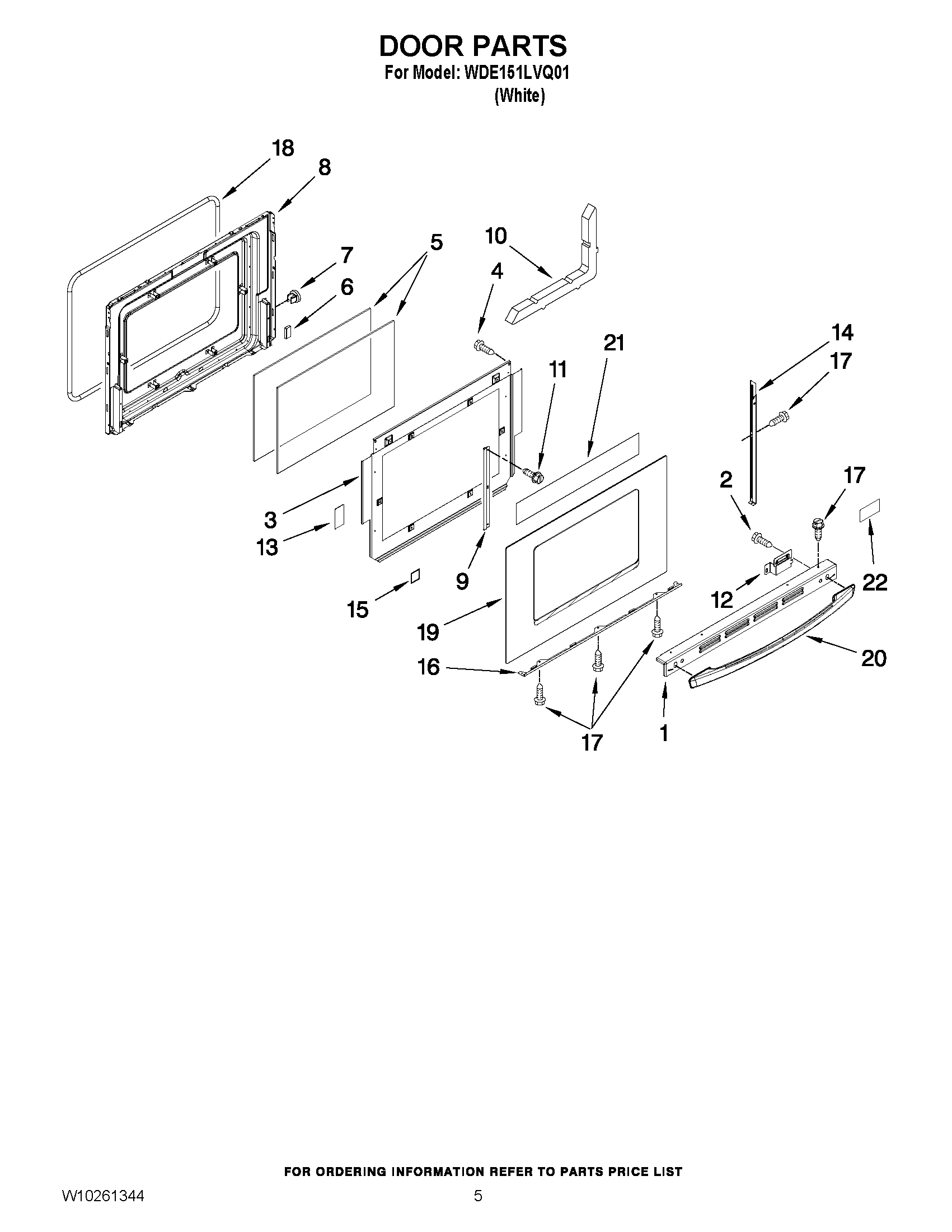

WDE151LVQ01 04 – DOOR PARTS

WDE151LVQ01 04 – DOOR PARTS

Written by

in

WDE151LVQ01 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	SCREW, HANDLE
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
13	Tape, White
14	TRIM, DOOR SIDE (BLACK, RIGHT)
14	TRIM, DOOR SIDE (BLACK, LEFT)
15	Spacer, Rubber
16	Trim, Door Bottom
17	SCREW (WHITE)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR
20	WPW10118430 Whirlpool Door Handle
21	Tape, Foil
22	BADGE
