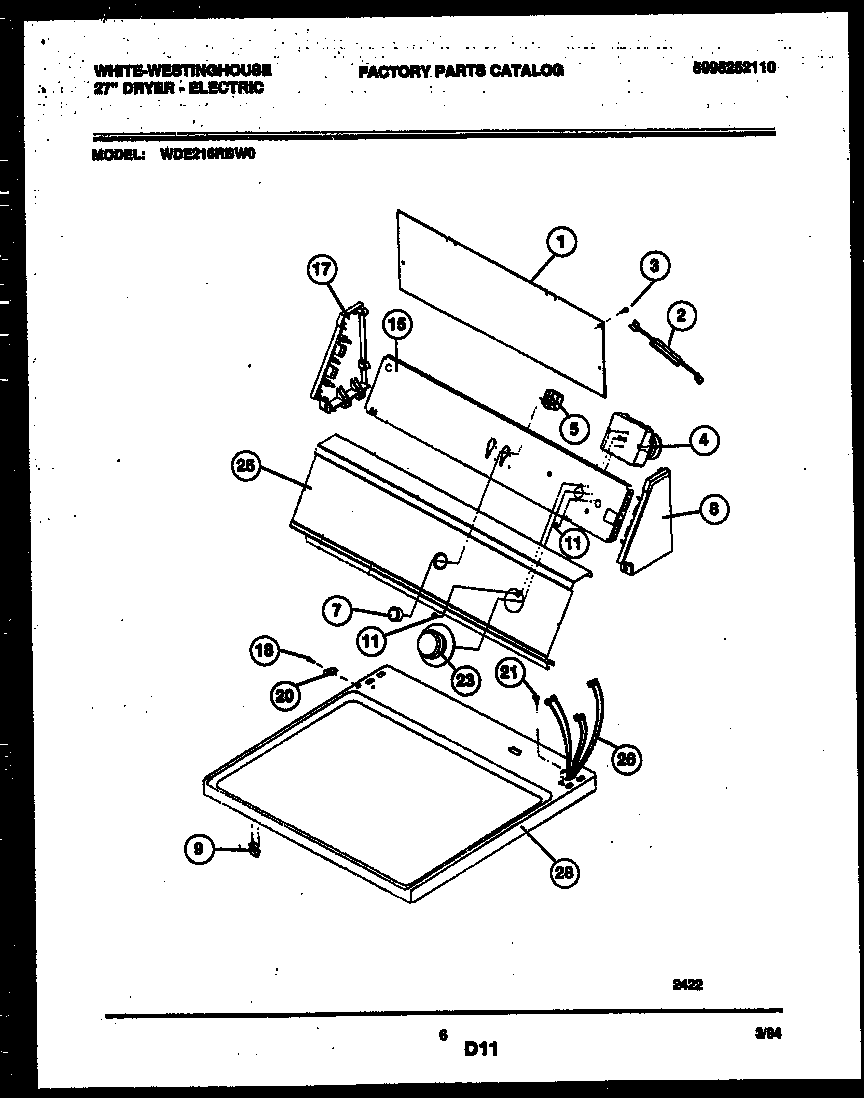

WDE216RBD0 04 – CONSOLE AND CONTROL PARTS

WDE216RBD0 04 – CONSOLE AND CONTROL PARTS

Written by

in

WDE216RBD0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
45303297177 Frigidaire Dryer Control Timer
5WCI 131048000
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15WCI 131297306
17WCI 5303291344
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131118902
25WCI 131260100
26WCI 131255900
28WCI 131130304
