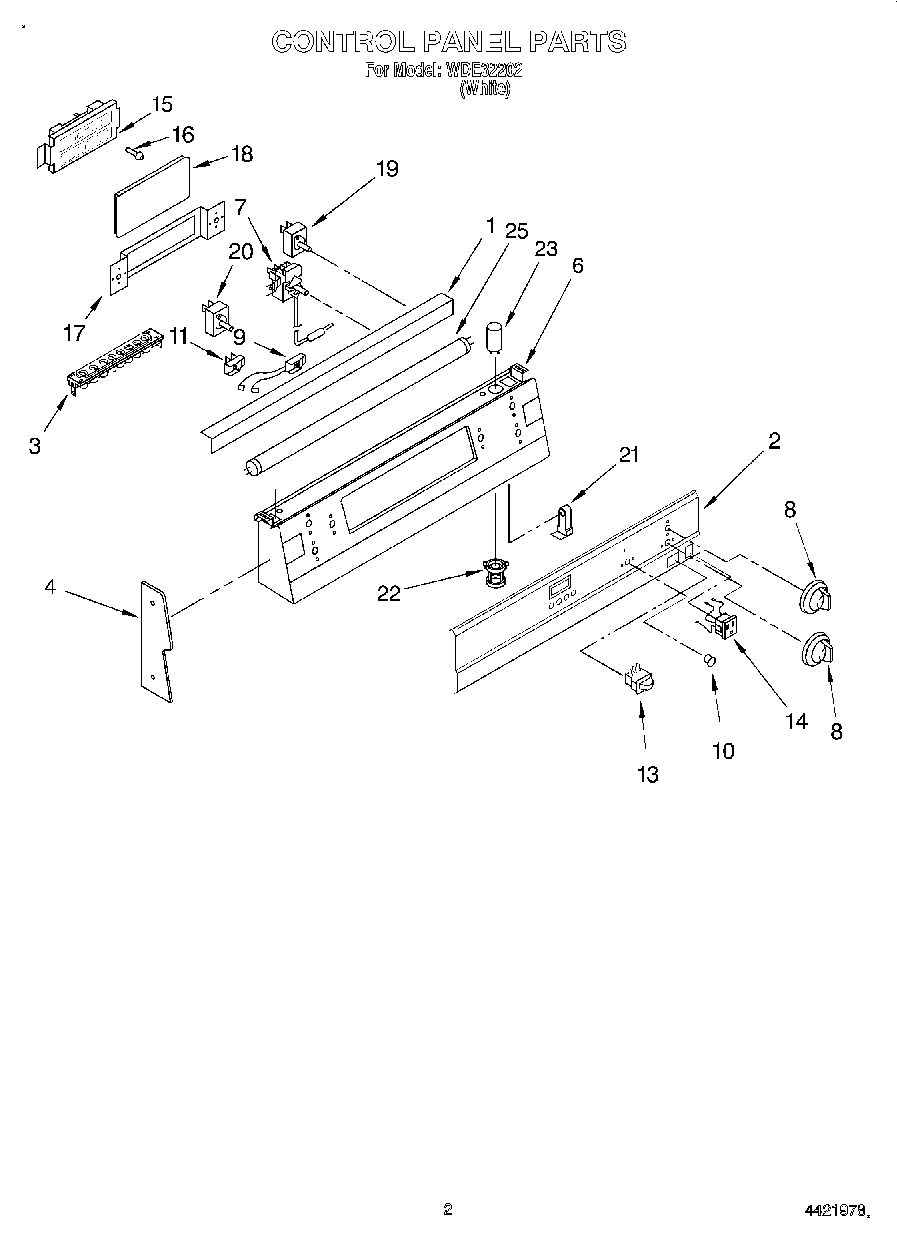

WDE32202 02 – CONTROL PANELadmin2025-04-26T13:00:51+00:00WDE32202 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Cover, Lamp |
| 2 | Panel, Control (Overlay) |
| 3 | Screw, (2) 10-16 x 1 |
| 3 | WP112432 Whirlpool Nut Assembly |
| 3 | WP8203546 Whirlpool Terminal Block |
| 4 | End Cap (Left) |
| 4 | End Cap (Right) |
| 6 | Panel, Control |
| 6 | Panel, Control (Screw, (2) 8 x 3/8) |
| 7 | Thermostat |
| 8 | WP9750372FF Whirlpool Knob |
| 9 | Light, Indicator (Oven - Thermostat) |
| 10 | WP9750343 Whirlpool Light Lens |
| 11 | Light Module |
| 13 | Switch, Oven Light |
| 14 | Outlet, Untimed |
| 15 | Timer |
| 16 | Button, Timer (8) |
| 17 | WP4159387 Whirlpool Compactor Screw |
| 17 | Bracket, Timer |
| 18 | Lens, Timer |
| 19 | WP9750638 Whirlpool Infinite Switch |
| 20 | WP9750641 Whirlpool Infinite Switch |
| 20 | WP3400882 Whirlpool Screw |
| 21 | Receptacle, Lamp |
| 22 | Starter, Holder |
| 23 | Starter, Light |
| 25 | WP95292 Whirlpool Fluorescent Light Bulb |
