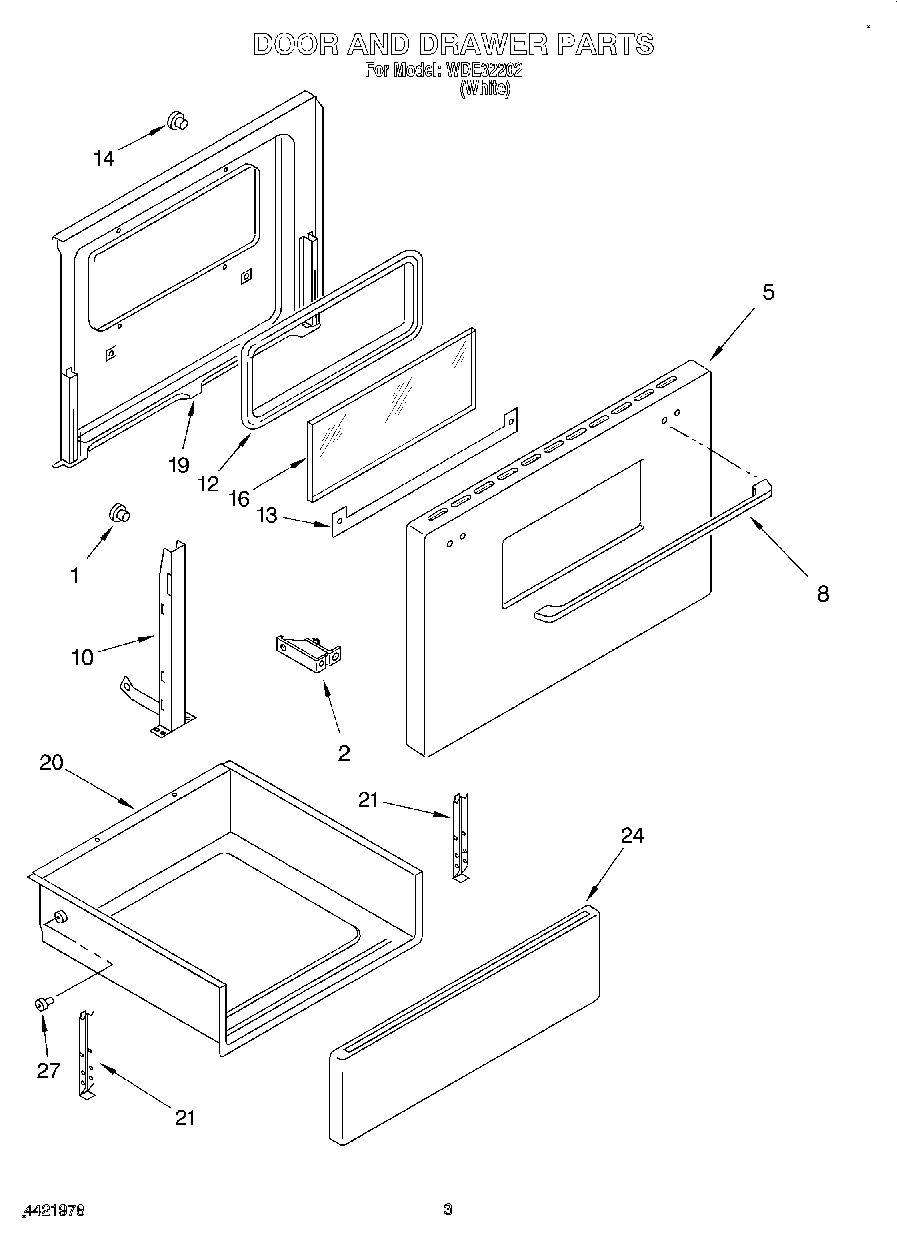

WDE32202 03 – DOOR AND DRAWERadmin2025-04-26T13:01:31+00:00WDE32202 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | WP9724509 Whirlpool Bumper |
| 2 | Retainer, Glass |
| 5 | Panel, Oven Door |
| 8 | Handle, Door |
| 8 | screw (2) 10-24 x 5/8 |
| 10 | Hinge, Door R or L |
| 12 | Gasket, glass |
| 13 | Retainer, Glass |
| 13 | Screw |
| 14 | 238614 Whirlpool Bumper Hinge |
| 16 | Glass, Inner-Outer |
| 19 | Liner, Door |
| 20 | Drawer & Roller |
| 21 | WP4159387 Whirlpool Compactor Screw |
| 21 | Bracket, Drawer |
| 24 | Front, Drawer (White) |
| 24 | Screw (4) 10 x 1/2 |
| 27 | 814229 Whirlpool Primary Roller |
