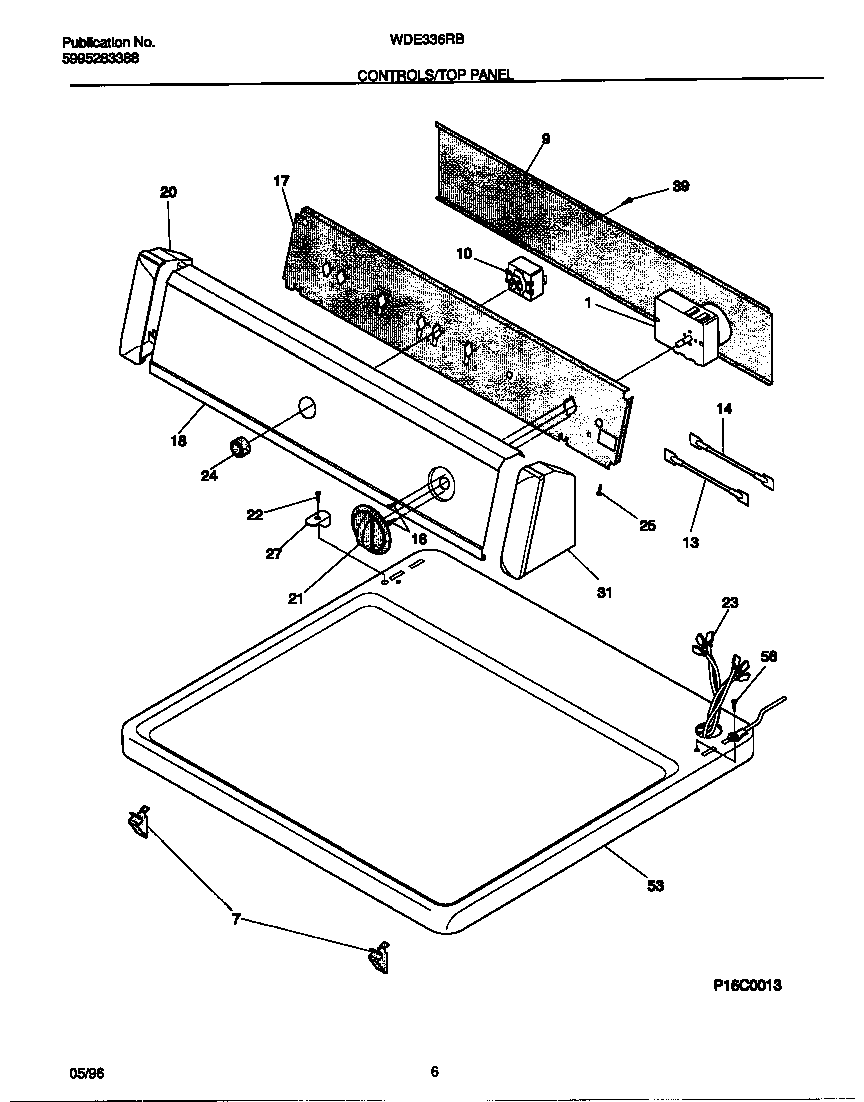

WDE336RBS2 04 – CONTROLS/TOP PANEL

Products

Position	Product
*52282	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131062300 Frigidaire Timer
7	3205821 Frigidaire Clip
9	COVER-BACK
10	WCI 131048000
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131416600
20	WCI 5303291343
21	WCI 131118903
22	WCI 131266310
23	WCI 131568500
24	WCI 131111501
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 5303291351
39	131205100 Frigidaire Screw
53	WCI 131130402
56	131243800 Frigidaire Screw
